| PV18-14R-MY | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

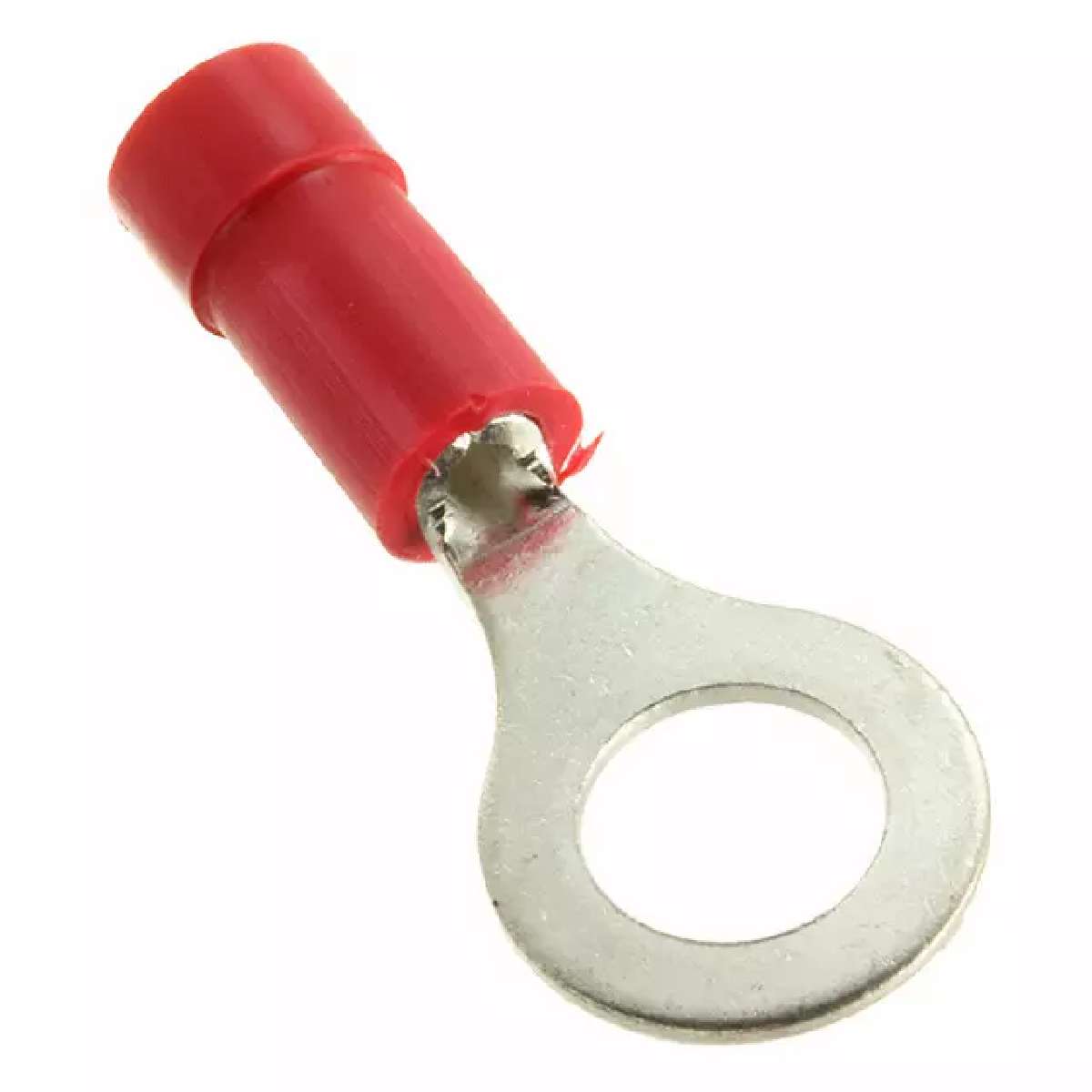

22-18 AWG 1/4 Stud size Vinyl Insulated Funnel entry Ring Terminal
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Wire Gauge: | 22 AWG - 16 AWG |
|---|---|
| Color: | Red |
| Length: | 28.2 mm |
| Qualification: | Commercial |
| Factory Pack Quantity: | 1000 |
| Brand: | Panduit |
| Termination Style: | Crimp |
| Gender: | Female |
| Contact Plating: | Tin |
| Material: | Copper |
| Unit Weight: | 0.048149 oz |
| ECCN | EAR99 |
| Product: | Screw Terminals |
| Mounting Angle: | Straight |
| Mounting Method: | Wire |
| Manufacturer: | Panduit |
| Insulation: | Insulated |
| RoHS: | Details |
| Contact Material: | Copper |
| Product Category: | Terminals |
| Insulation Material: | Vinyl |
| Stud / Tab Size: | 6.35 mm |
| Type: | Ring |
| 数据手册： |
|---|
