| PM-5R0H305-R | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

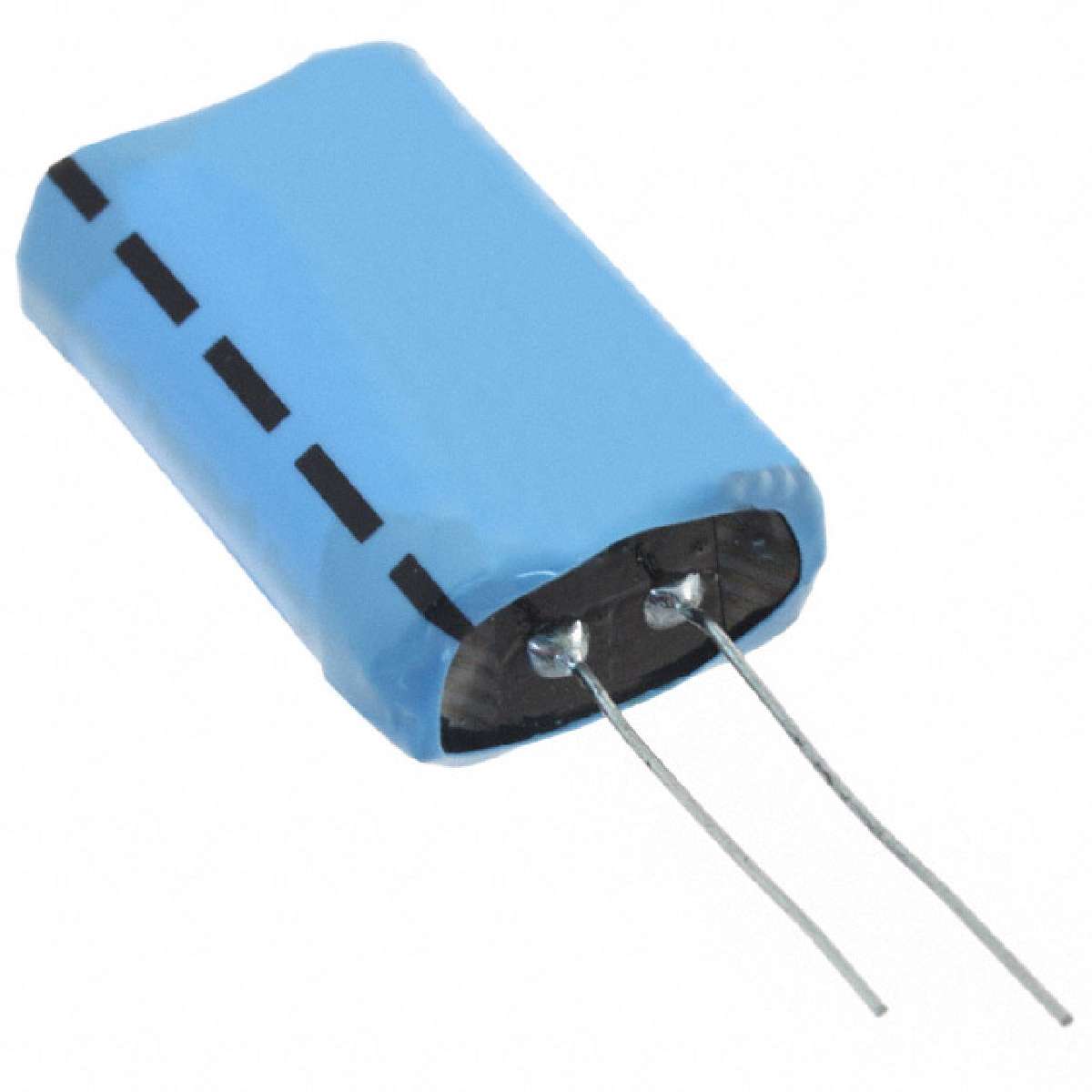

PM Series 5 V 3 F 10.5 x 20.8 x 32 mm LS=5.3 mm Horizontal Radial SuperCapacitor
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 20.8 mm |
|---|---|
| Product: | Supercapacitors |
| Lead Diameter: | 0.6 mm |
| Length: | 32 mm |
| Voltage Rating: | 5 VDC |
| Operating Temperature Range: | - 40 C to + 60 C |
| Voltage Rating DC: | 5 VDC |
| Brand: | PowerStor / Eaton |
| RoHS: | Details |
| Product Category: | Supercapacitors |
| Height: | 10.5 mm |
| Unit Weight: | 0.336000 oz |
| Orientation: | Horizontal |
| Packaging: | Bulk |
| Capacitance: | 3 F |
| Manufacturer: | Eaton |
| Series: | PM |
| ESR: | 0.07 Ohms |
| Factory Pack Quantity: | 100 |
| Leakage Current: | 20 uA |
| Termination Style: | Radial |
| Tolerance: | - 20 %, + 80 % |
| Lead Spacing: | 5.3 mm |
| ECCN | EAR99 |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$35.1819
￥292.20847034814574
See more prices
| 4+ | $35.1819 |
|---|---|
| 10+ | $33.42885 |
| 26+ | $31.7564 |
| 50+ | $30.16455 |
| 76+ | $28.6533 |
| stock | 570 | Update On 2025-02-23 |
|---|---|---|
| Lead-Time | 0Weeks | |
| Supplier SPQ/MOQ | 100/4 | |
| Location | -- | |
| DateCode | 1701 |
