| PI5C32X245BE | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

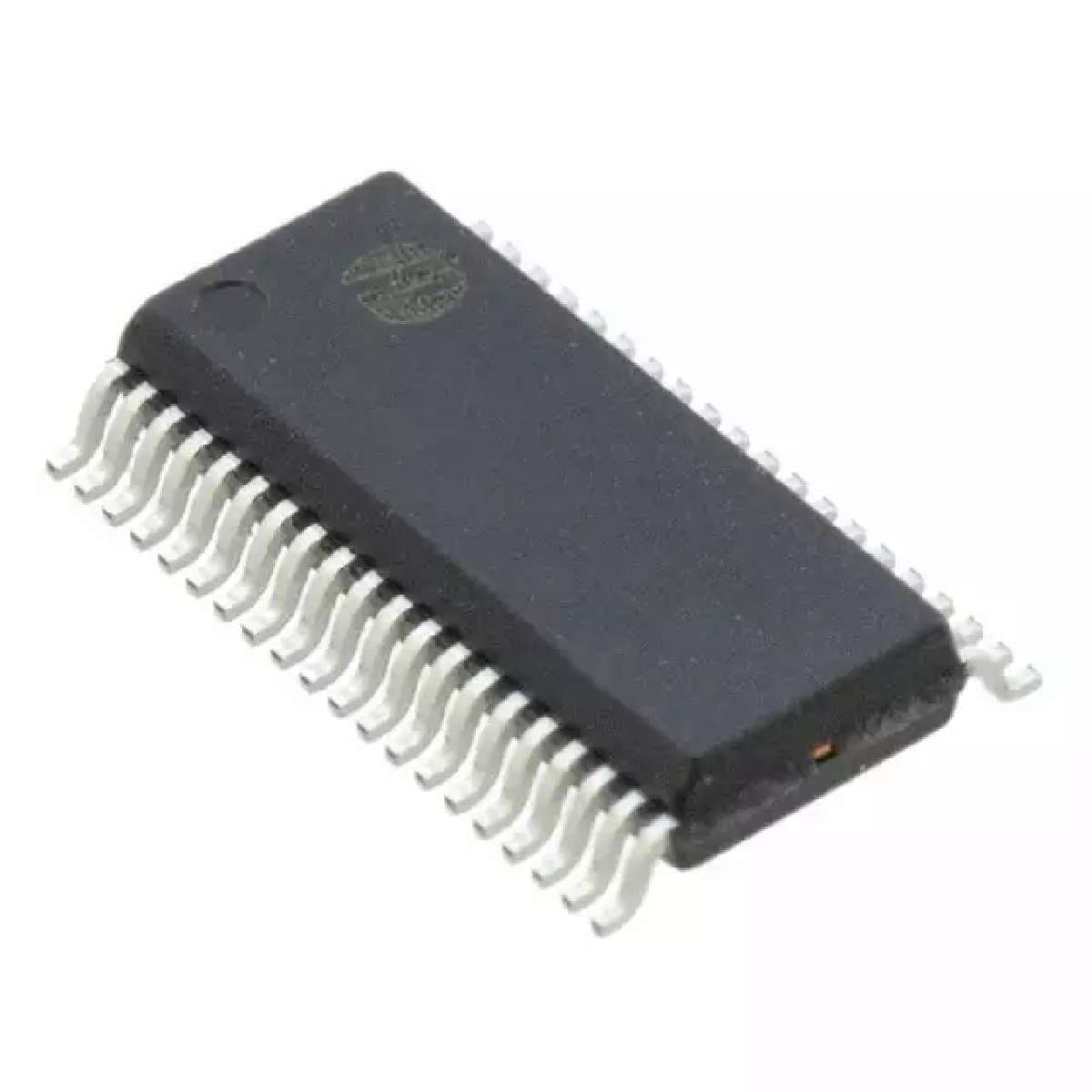

PI5C32 Series 5 V 100 mA 16 Bit Two Port Bus Switch - QSOP-40
|
||
| 标准包装：49 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Bits: | 16 bit |
|---|---|
| Packaging: | Tube |
| Manufacturer: | Pericom |
| Propagation Delay - Max: | 250 us |
| Series: | PI5C32X245 |
| Factory Pack Quantity: | 49 |
| Brand: | Pericom |
| RoHS: | Details |
| Supply Current - Max: | 3 uA |
| Height: | 1.45 mm |
| Mounting Style: | SMD/SMT |
| ECCN | EAR99 |
| Length: | 10 mm |
| Width: | 4 mm |
| Organization: | 8 x 1:1 |
| Operating Supply Voltage: | 5 V |
| Minimum Operating Temperature: | - 40 C |
| On Resistance - Max: | 10 Ohms |
| Supply Voltage - Min: | 4.5 V |
| Package / Case: | BQSOP-40 |
| Product Category: | Digital Bus Switch ICs |
| Supply Voltage - Max: | 5.5 V |
| Maximum Operating Temperature: | + 85 C |
