VPM240-12500
VPM240-12500
  • ACTIVE
  • EAR99

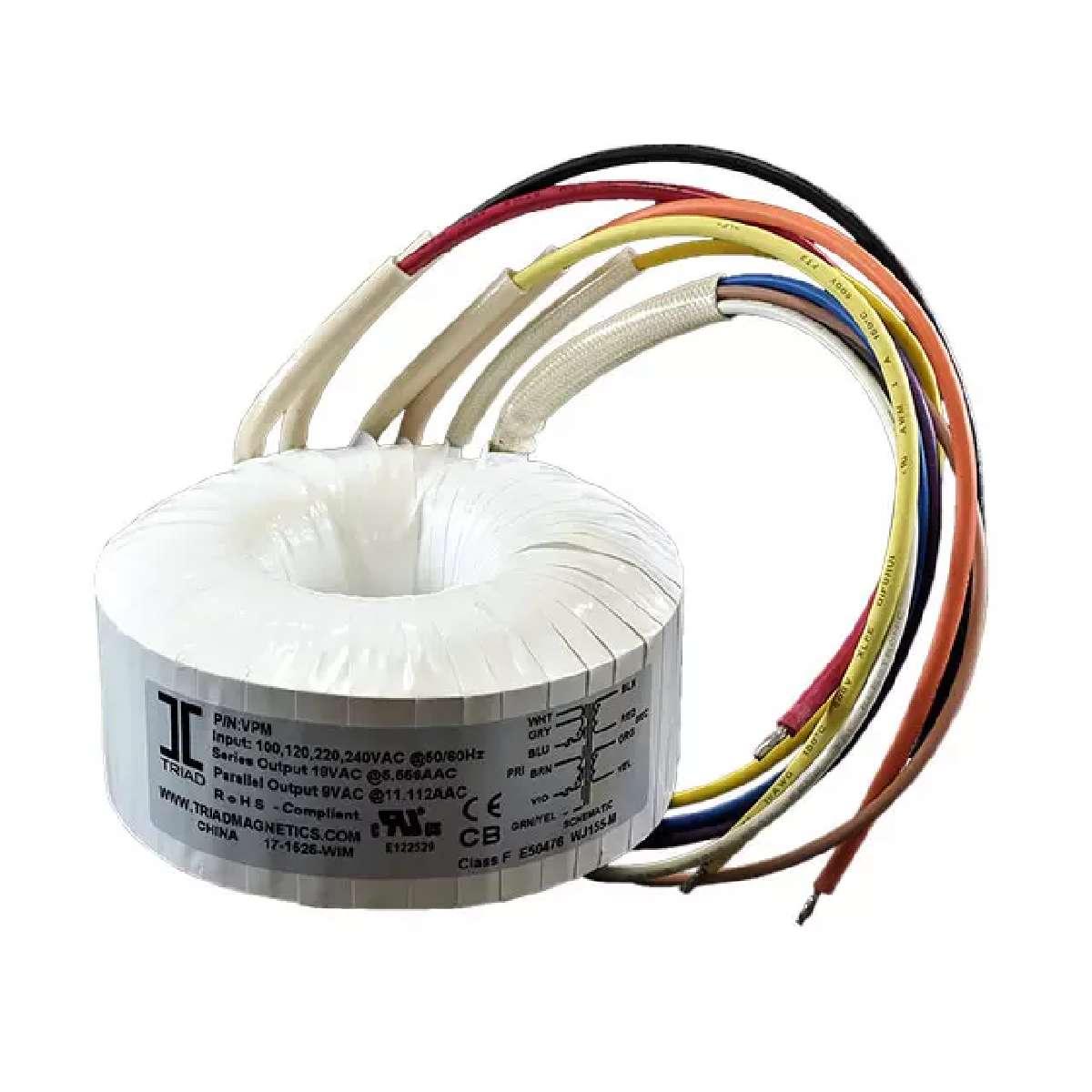

Product description : MEDICAL GRADE PWR TOROID 240VCT@12.5A UL/CE TOROIDAL MOUNT
SPQ:1
Datasheet : --
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Product: Power Transformers
Operating Frequency: 50 Hz / 60 Hz
Secondary Voltage Rating: 120 V / 240 V
Series: VPM
Brand: Triad Magnetics
RoHS:  Details
Termination Style: Wire Leads
Product Category: Power Transformers
Height: 130 mm
Mounting Style: Chassis
Primary Winding: Dual Primary Winding
Power Rating: 3000 VA
Manufacturer: Triad Magnetics
Factory Pack Quantity: 1
Secondary Winding: Dual Secondary Winding
Outside Diameter: 222 mm
Primary Voltage Rating: 240 V, 2080 V
Secondary Current Rating: 25 A / 12.5 A
Unit Weight: 55.116 lbs
ECCN EAR99
