| PCX1C151MCL6GS | ||
|---|---|---|
|
|
||
|
||

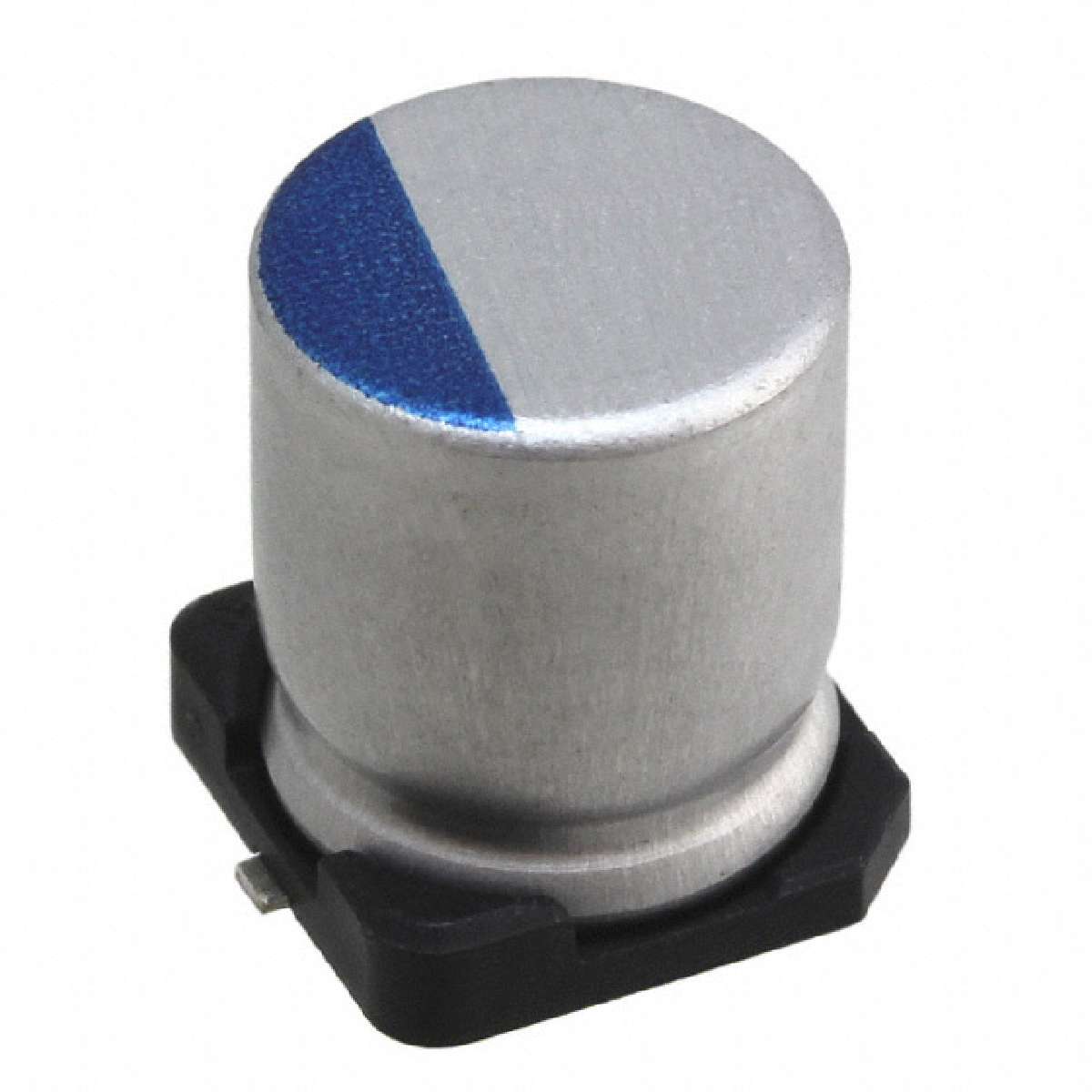

| Product description : CX Series 16 V 150 uF 8 x 10 mm SMT Polymer Aluminum Electrolytic Capacitor | ||
| SPQ：500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Tolerance | ±20% |
|---|---|
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Ripple Current | 780mA |
| Manufacturer | Nichicon |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Family | Aluminum - Polymer Capacitors |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Packaging | Digi-Reel® |
| Voltage Rating | 16V |
| Capacitance | 150µF |
| ESR (Equivalent Series Resistance) | 28 mOhm |
| Part Status | Active |
| Category | Capacitors |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Series | PCX |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 125°C |
| ECCN | EAR99 |
