| F-56X | ||
|---|---|---|
|
|
||
|
||

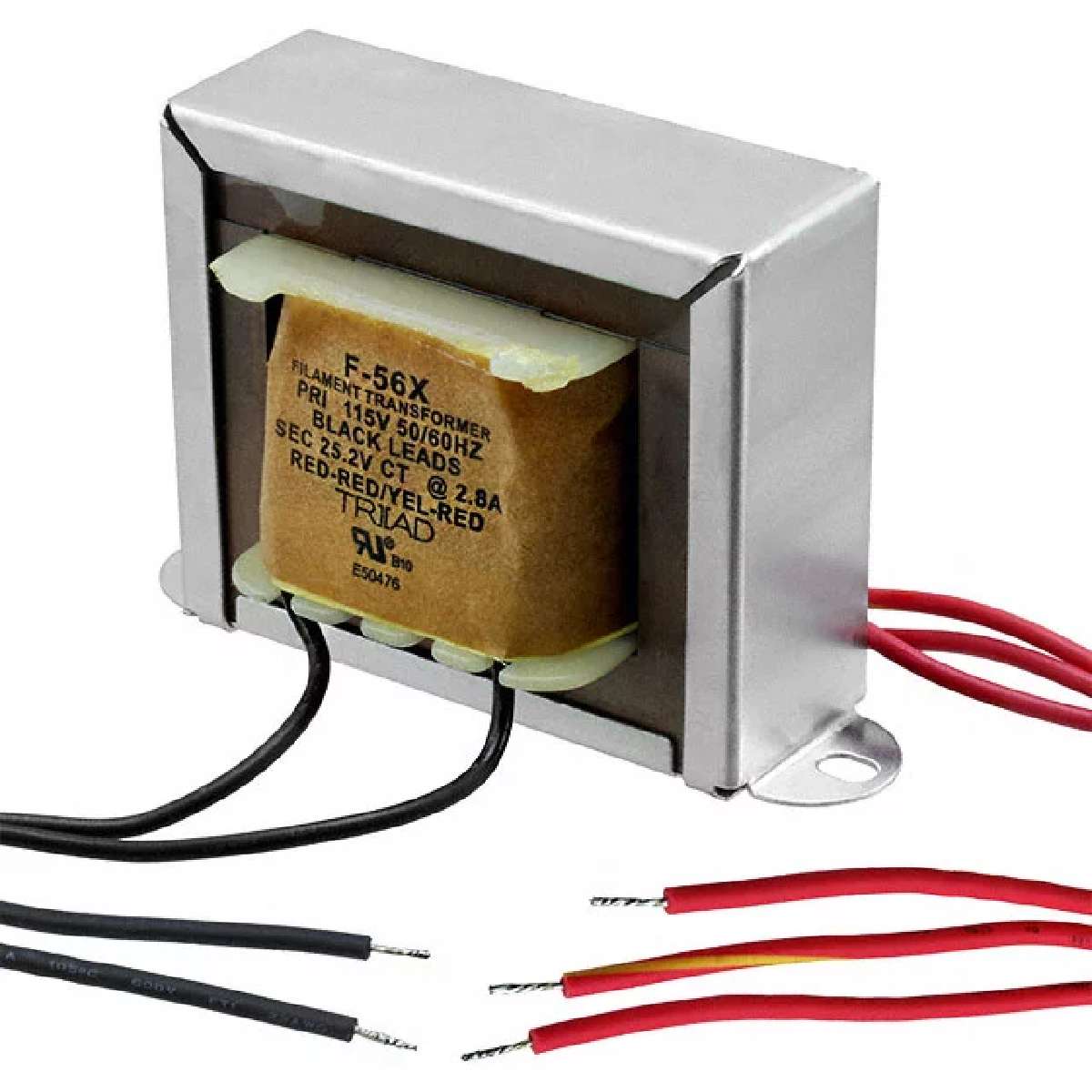

| Product description : POWER XFMR 25.2Vct@2.8A 115V CHASSIS MOUNT w/LEADS/F-56X REV Z1 | ||
| SPQ：8 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 1500Vrms |
|---|---|
| Voltage - Secondary (Full Load) | 25.2V |
| Type | Laminated Core |
| Center Tap | Yes |
| Size / Dimension | 101.60mm L x 63.50mm W |
| Voltage - Primary | 115V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Single |
| Mounting Type | Chassis Mount |
| Primary Winding(s) | Single |
| Power - Max | 71 VA |
| Current - Output (Max) | 2.8A |
| Termination Style | Wire Leads |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 65.15mm |
| Family | Power Transformers |
| ECCN | EAR99 |
