| F-55X | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

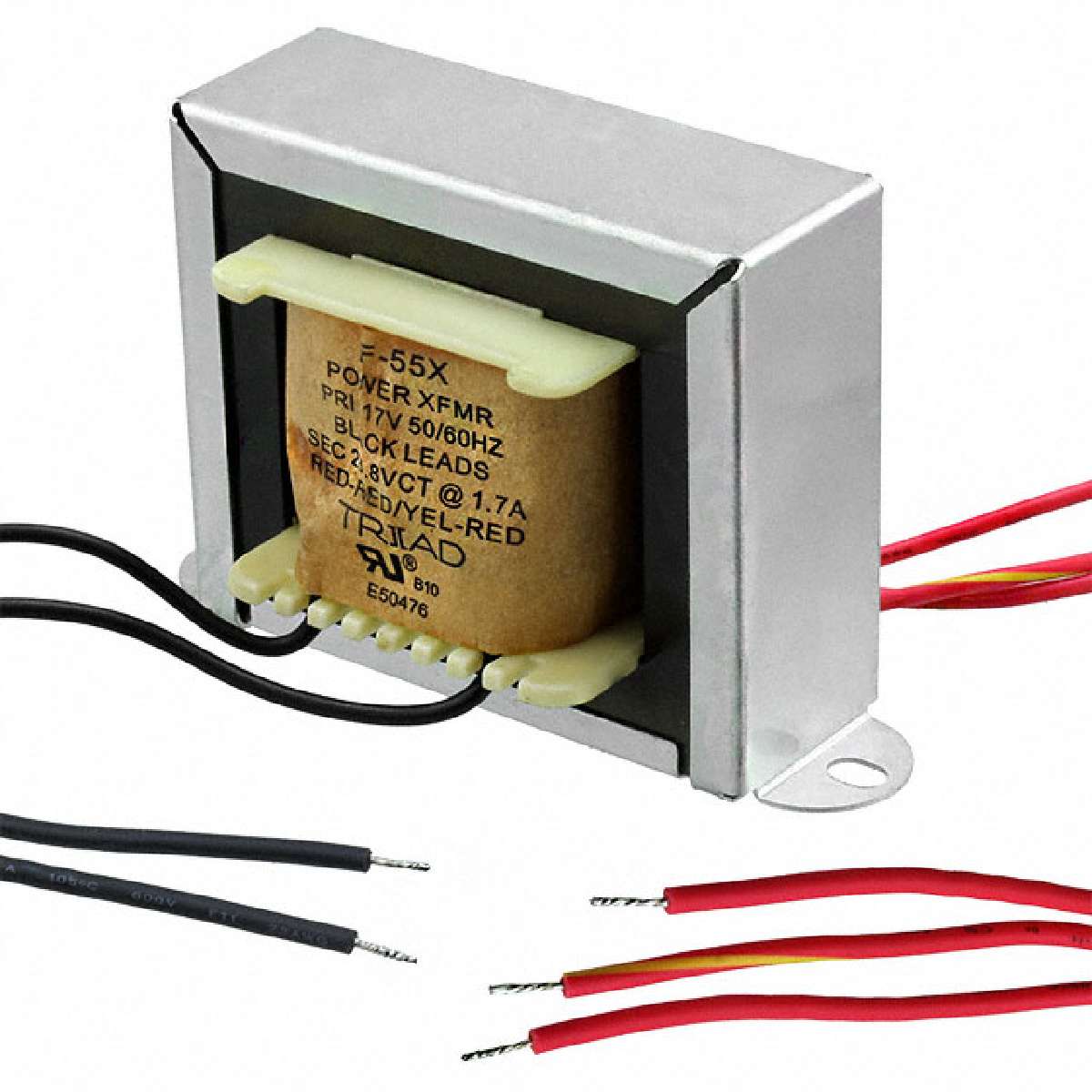

POWER XFMR 26.8Vct@1.7A 115V CHASSIS MOUNT w/LEADS
|
||
| 标准包装：8 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Voltage - Isolation | 1500Vrms |
|---|---|
| Voltage - Secondary (Full Load) | 26.8V |
| Type | Laminated Core |
| Center Tap | Yes |
| Size / Dimension | 101.60mm L x 57.15mm W |
| Voltage - Primary | 115V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Single |
| Mounting Type | Chassis Mount |
| Primary Winding(s) | Single |
| Power - Max | 45.6 VA |
| Current - Output (Max) | 1.7A |
| Termination Style | Wire Leads |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 65.86mm |
| Family | Power Transformers |
| ECCN | EAR99 |
