| F-348XP | ||
|---|---|---|
|
|
||
|
||

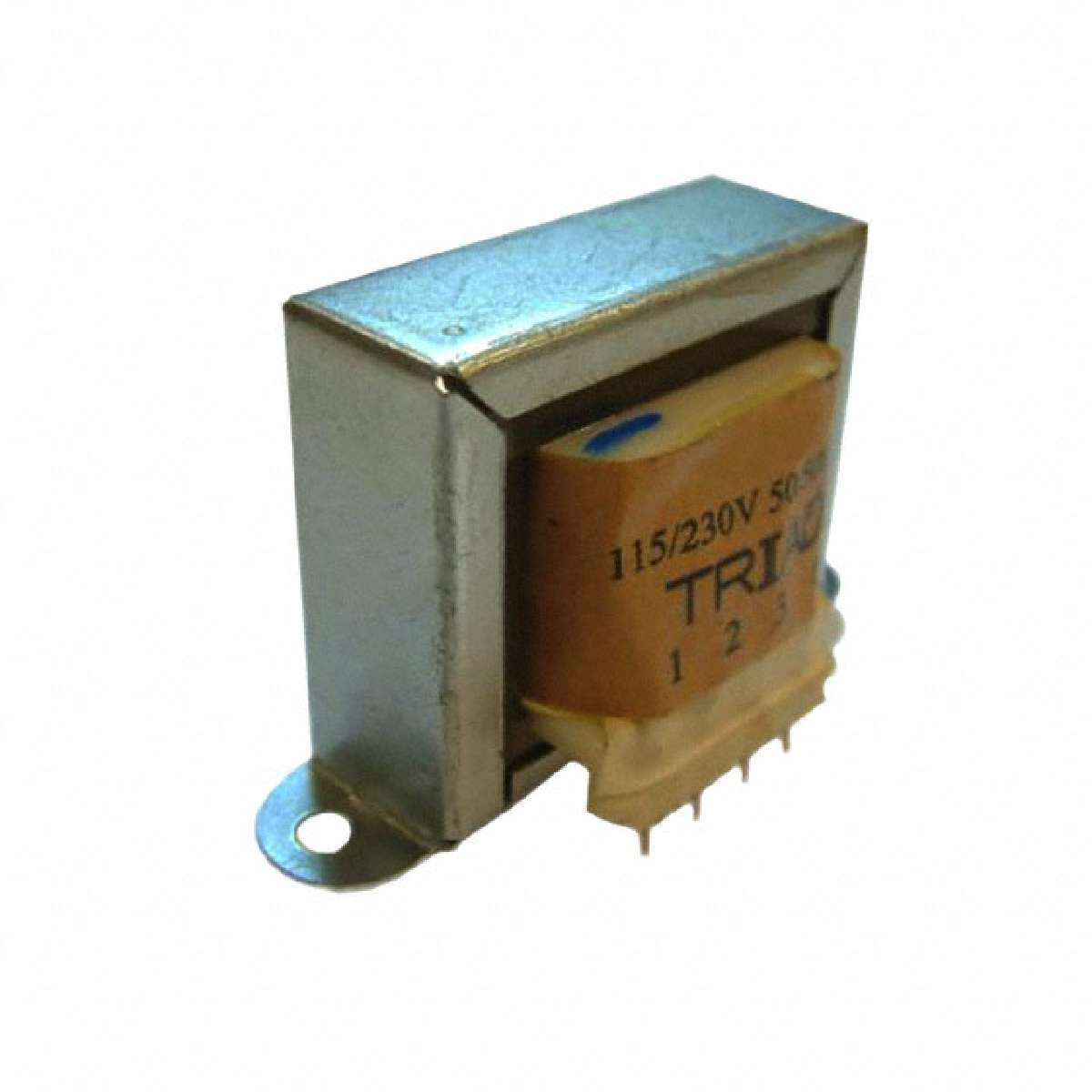

| Product description : POWER TRANSFORMER 12.6Vct@0.350A 115V/230 PCB MOUNT/F-348XP REV M | ||
| SPQ：20 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 1500Vrms |
|---|---|
| Voltage - Secondary (Full Load) | Parallel 6.3V, Series 12.6V |
| Type | Laminated Core |
| Center Tap | No |
| Size / Dimension | 60.32mm L x 31.75mm W |
| Voltage - Primary | 115V, 230V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Dual |
| Mounting Type | User Defined |
| Primary Winding(s) | Dual |
| Power - Max | 4.5 VA |
| Current - Output (Max) | Parallel 700mA, Series 350mA |
| Termination Style | PC Pin |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 34.93mm |
| Family | Power Transformers |
| ECCN | EAR99 |
