| F-18X | ||
|---|---|---|
|
|
||
|
||

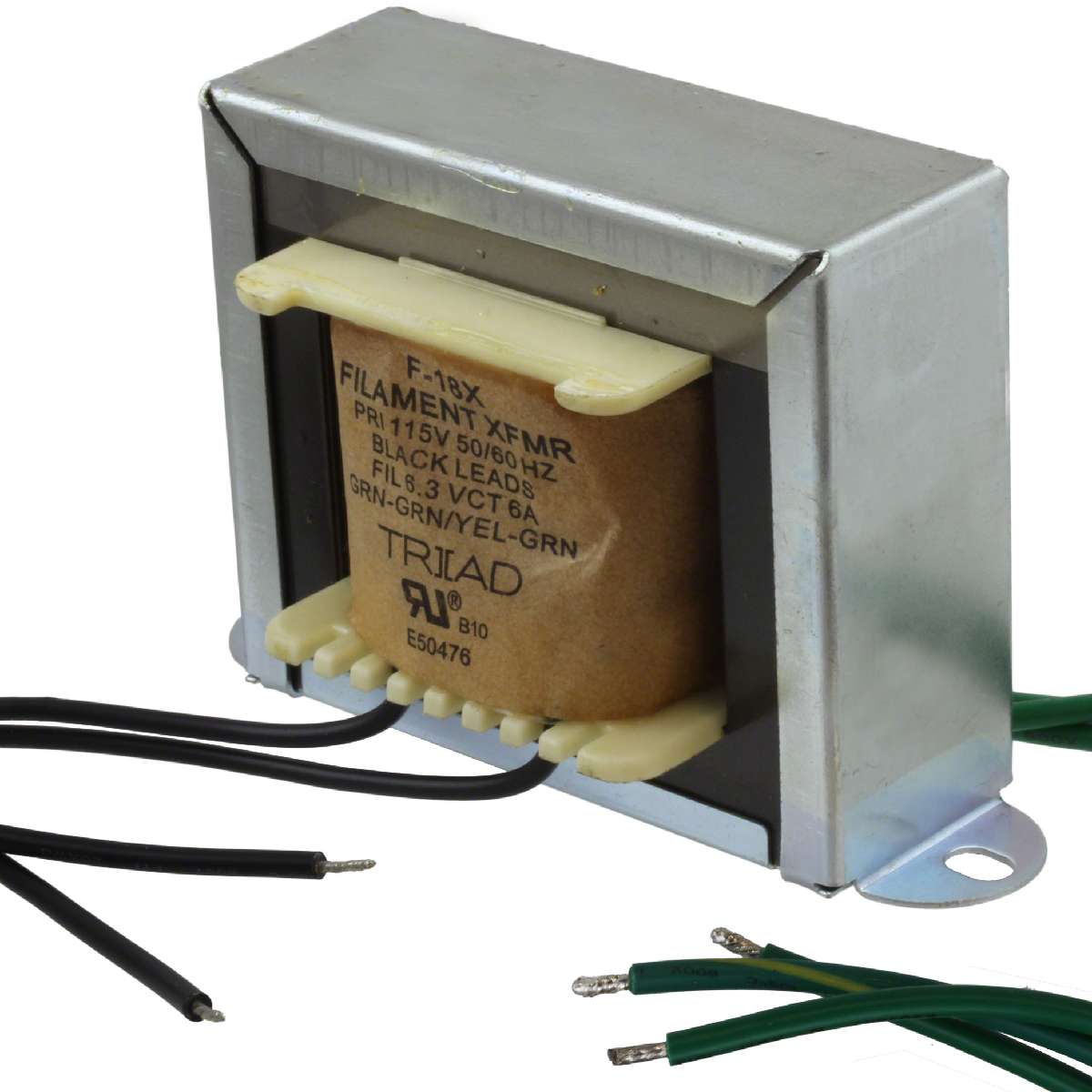

| Product description : POWER XFMR 6.3Vct@6.0A 115V CHASSIS MOUNT w/LEADS/F-18X REV Y | ||
| SPQ：8 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Voltage - Isolation | 1500Vrms |
|---|---|
| Voltage - Secondary (Full Load) | 6.3V |
| Type | Laminated Core |
| Center Tap | Yes |
| Size / Dimension | 101.60mm L x 57.15mm W |
| Voltage - Primary | 115V |
| Manufacturer | Triad Magnetics |
| Secondary Winding(s) | Single |
| Mounting Type | Chassis Mount |
| Primary Winding(s) | Single |
| Power - Max | 37.8 VA |
| Current - Output (Max) | 6A |
| Termination Style | Wire Leads |
| Part Status | Active |
| Category | Transformers |
| Height - Seated (Max) | 65.86mm |
| Family | Power Transformers |
| ECCN | EAR99 |
