| L218-4080024C30000 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

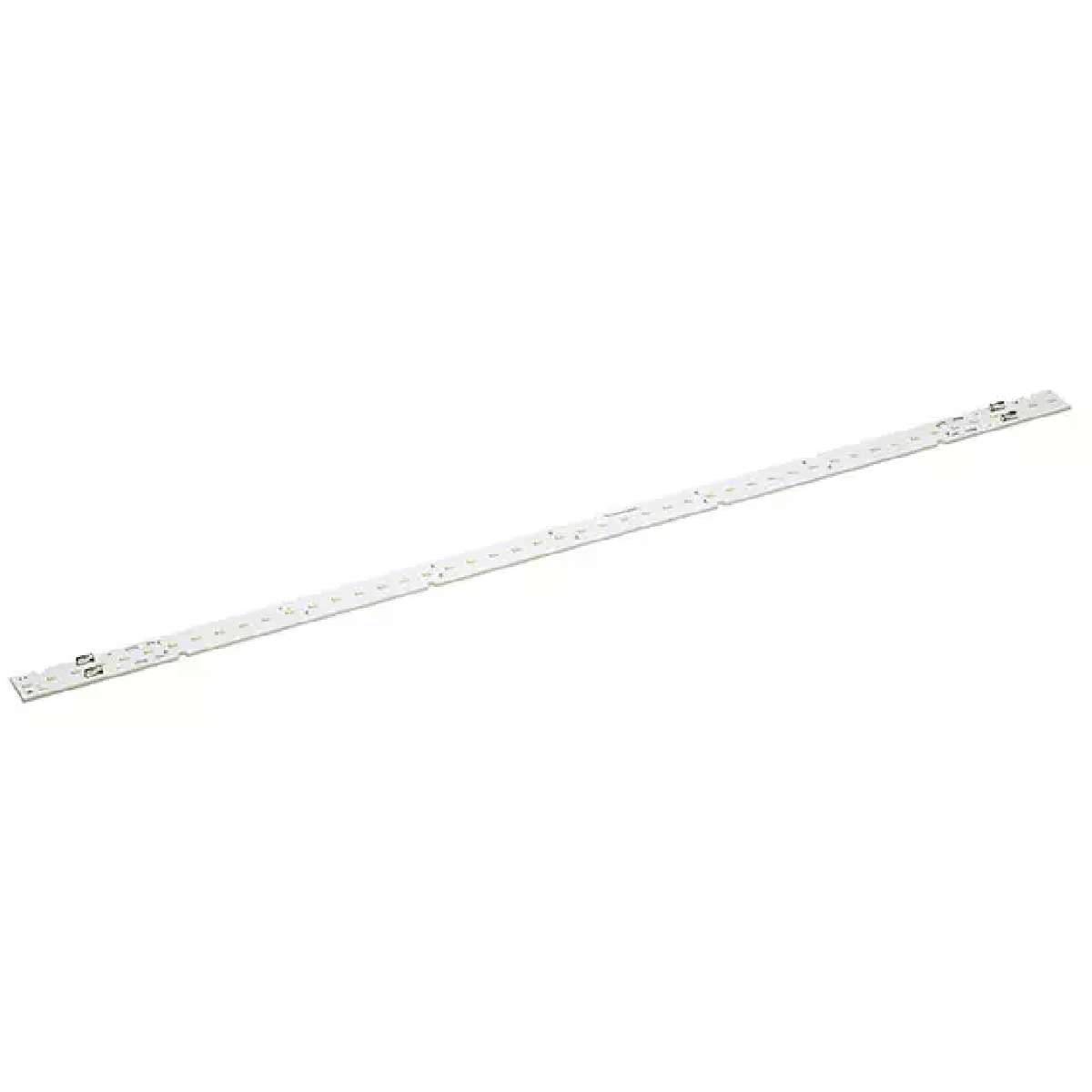

LUXEON XR-3020 Series 24 LED 4000K 80 CRI 1088 lm 35 V 280x20mm Linear LED Array
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | LED Light Strips, Rigid |
|---|---|
| Packaging: | Reel |
| Length: | 279.2 mm |
| If - Forward Current: | 200 mA |
| Series: | MATRIX XR-3020 |
| Brand: | Lumileds |
| Number of LEDs: | 24 LEDs |
| Product Category: | LED Lighting Modules |
| Height: | 0.52 mm |
| Lens Shape: | Rectangular |
| ECCN | EAR99 |
| Width: | 20 mm |
| Luminous Flux/Radiant Flux: | 1088 lm |
| Color Rendering Index - CRI: | 80 |
| Manufacturer: | Lumileds |
| Factory Pack Quantity: | 100 |
| Wavelength/Color Temperature: | 4000 K |
| RoHS: | Details |
| Size: | 279.2 mm x 20 mm x 0.52 mm |
| Illumination Color: | Neutral White |
| Vf - Forward Voltage: | 34.8 V |
