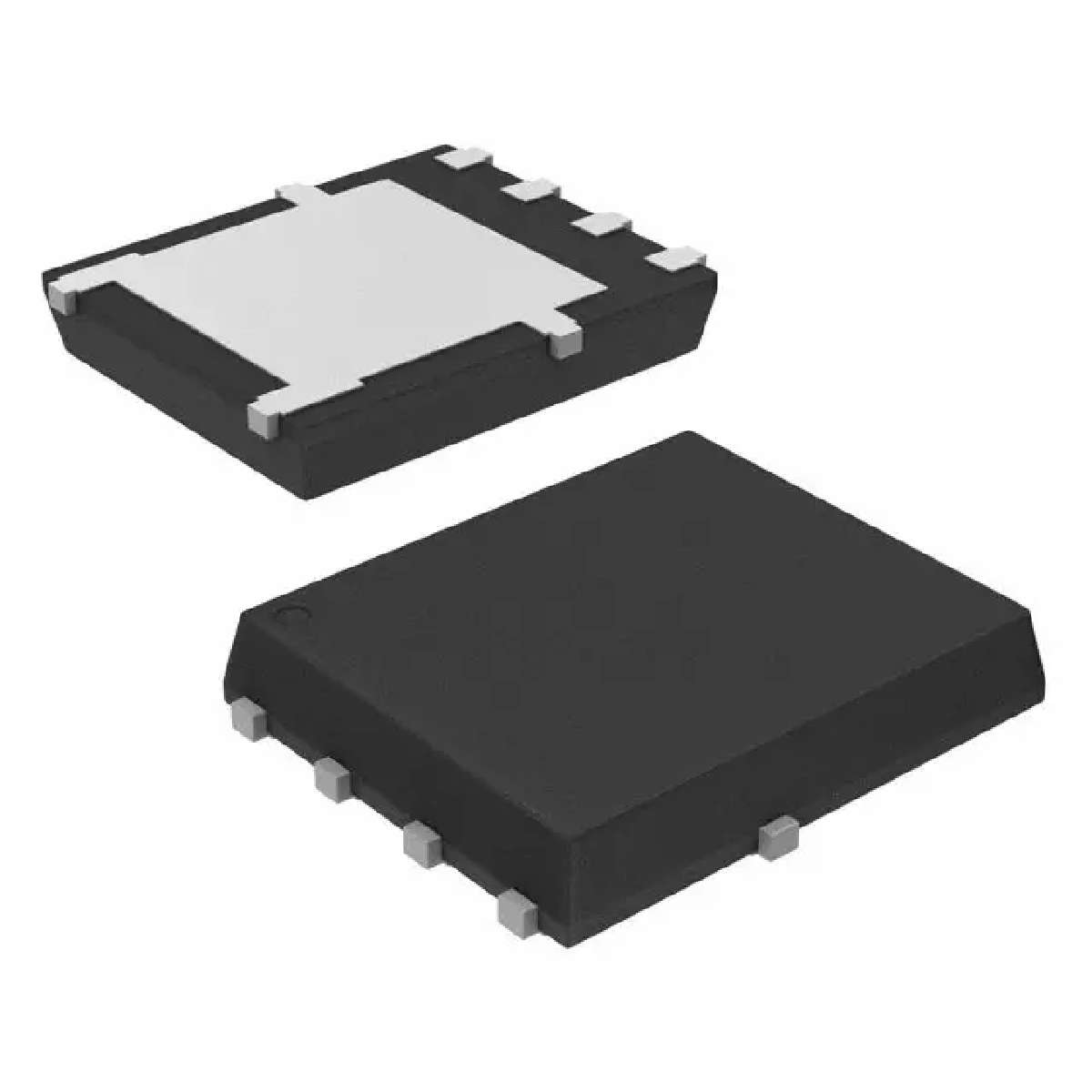

| NTMFS5H409NLT1G | ||
|---|---|---|
|
|
||
|
||
| Product description : 40V,1.1mΩ,270A,Single N Channel MOSFET | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| FET Feature | Standard |
|---|---|
| Package / Case | 8-PowerTDFN |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 41A (Ta), 270A (Tc) |
| Part Status | Active |
| Manufacturer | ON Semiconductor |
| Family | Transistors - FETs, MOSFETs - Single |
| Mounting Type | Surface Mount |
| Input Capacitance (Ciss) @ Vds | 5700pF @ 20V |
| ECCN | EAR99 |
| Rds On (Max) @ Id, Vgs | 1.1 mOhm @ 50A, 10V |
| Power - Max | 140W |
| Supplier Device Package | 5-DFN, 8-SO Flat Lead (5x6) |
| Gate Charge (Qg) @ Vgs | 89nC @ 10V |
| Category | Discrete Semiconductor Products |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Packaging | Cut Tape (CT) |
You can comment after logging in.
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$1.79212
￥14.88472
| 1500+ | $1.79212 |
|---|---|
| 4500+ | $1.73096 |
| 9000+ | $1.72601 |
| stock | Out of stock |
|---|---|
| Lead-Time | 98Weeks |
| Supplier SPQ/MOQ | 1/1500 |
| Location | -- |
| DateCode | -- |
