| BCM3814V60E10A5C02 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

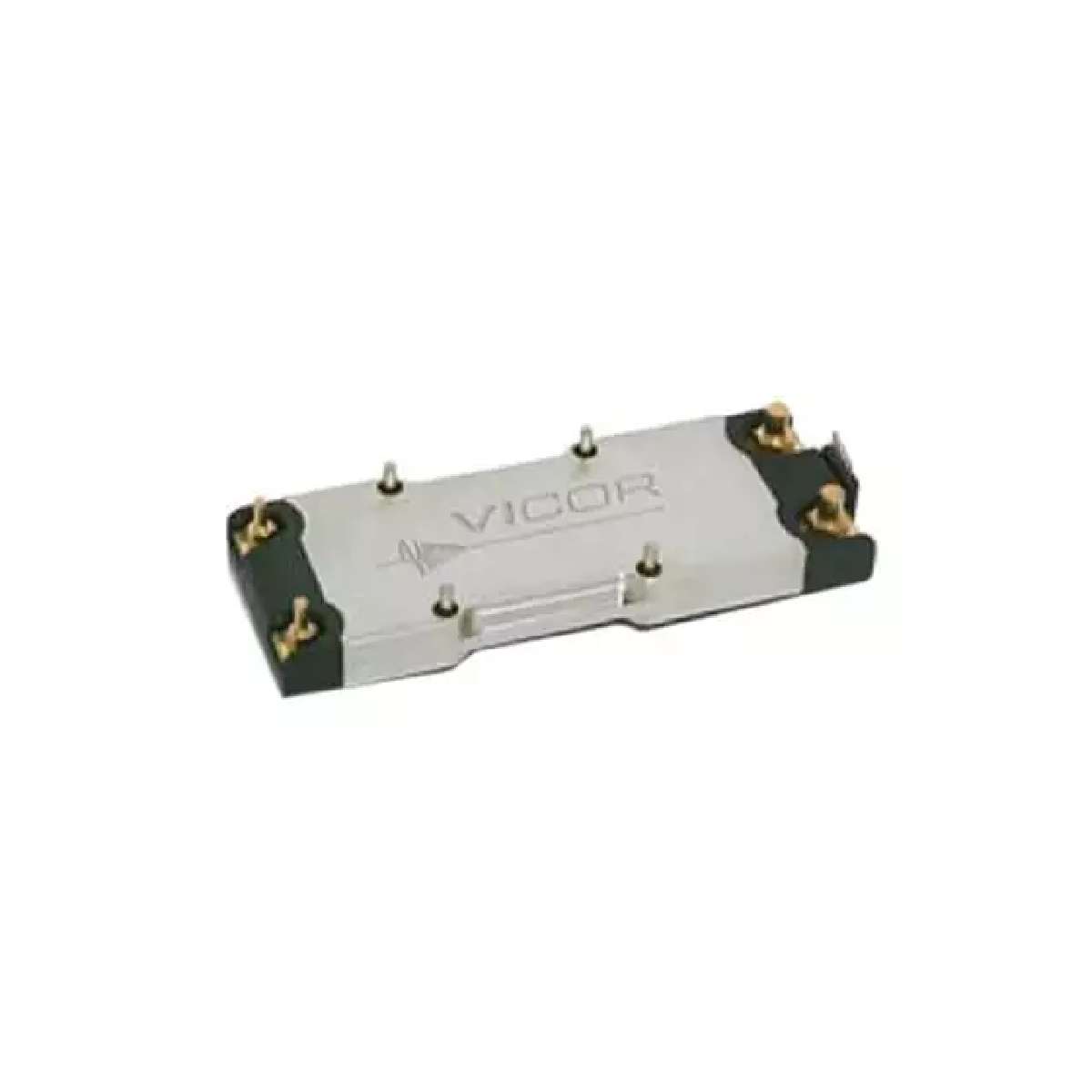

BCM Series 1350 W Single Output 9 V 150 A Chassis Mount Isolated DC/DC Converter
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Outputs | 1 |
|---|---|
| Type | Isolated Module |
| Approvals | CE |
| Part Status | Active |
| Efficiency | 97% |
| Series | VI Chip® BCM® |
| Family | DC DC Converters |
| Applications | ITE (Commercial) |
| Operating Temperature | -20°C ~ 100°C |
| Packaging | Bulk |
| Voltage - Input | 36 ~ 60 V |
| Output | 9V |
| Size / Dimension | 3.76" L x 1.40" W x 0.37" H (95.6mm x 35.5mm x 9.4mm) |
| Category | Power Supplies - External/Internal (Off-Board) |
| Manufacturer | Vicor Corporation |
| Power (Watts) | 1350W |
| Output - 1 @ Current (Max) | 9 VDC @ 150A |
| Mounting Type | Chassis Mount |
| Power (Watts) - Max | 1350W |
| ECCN | EAR99 |
