| P2011Z | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

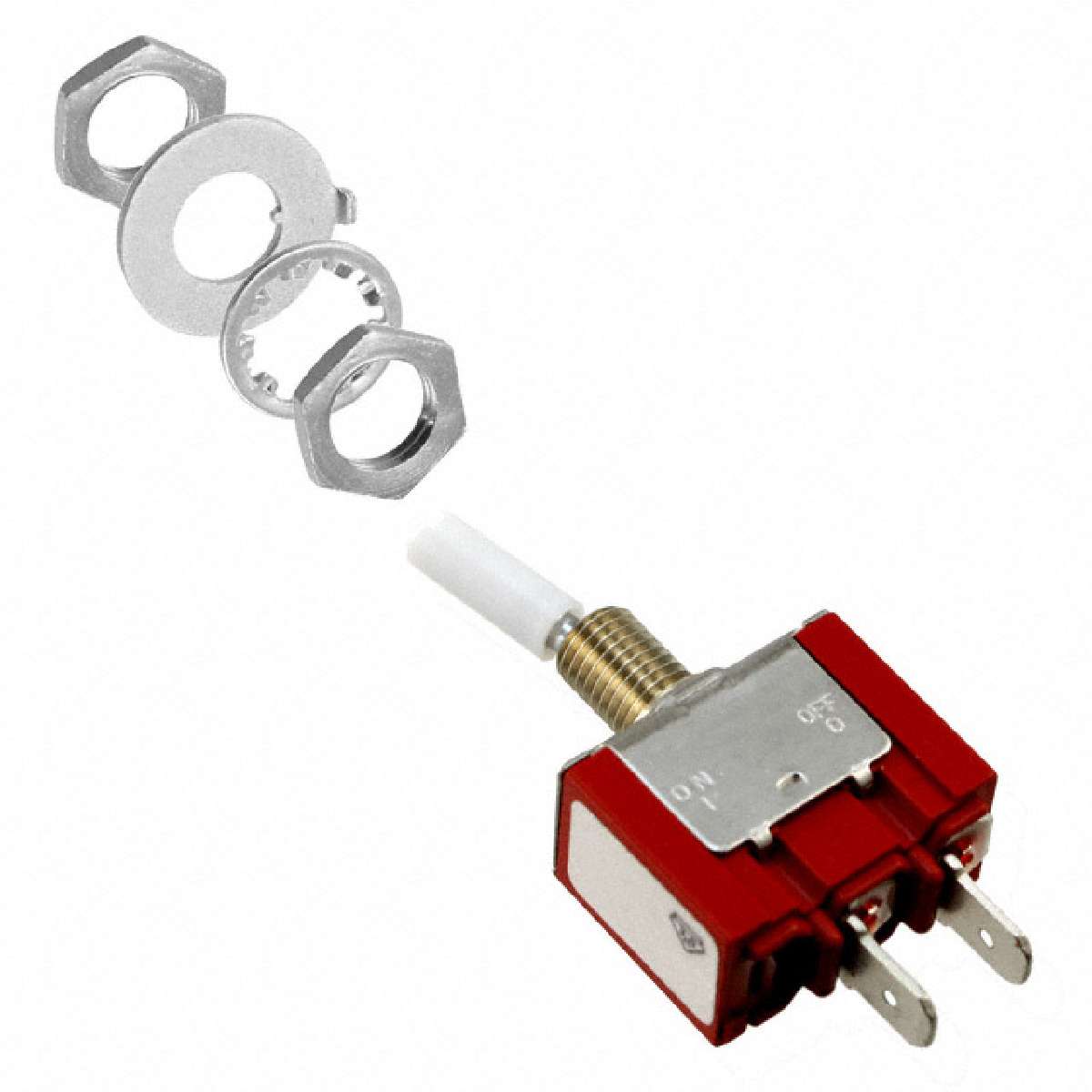

P20 Series SPST On None Off 6 mm Bushing White Cap Quick Connect Toggle Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Switch Function | On-Off |
|---|---|
| Electrical Life | 25,000 Cycles |
| Mounting Type | Panel Mount |
| Packaging | Bulk |
| Actuator Type | Standard Round with Cap |
| Voltage Rating - AC | 125V |
| Features | White Cap |
| Category | Switches |
| Series | P |
| Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Current Rating | 10A (AC) |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Manufacturer | NKK Switches |
| Actuator Material | Brass, Chrome Plated |
| Circuit | SPST |
| Actuator Length | 13.00mm |
| Bushing Thread | M6 x 0.75 |
| Part Status | Active |
| Illumination | Non-Illuminated |
| Family | Toggle Switches |
| Operating Temperature | -10°C ~ 85°C |
| ECCN | EAR99 |
