| OVSRRGBCC3 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

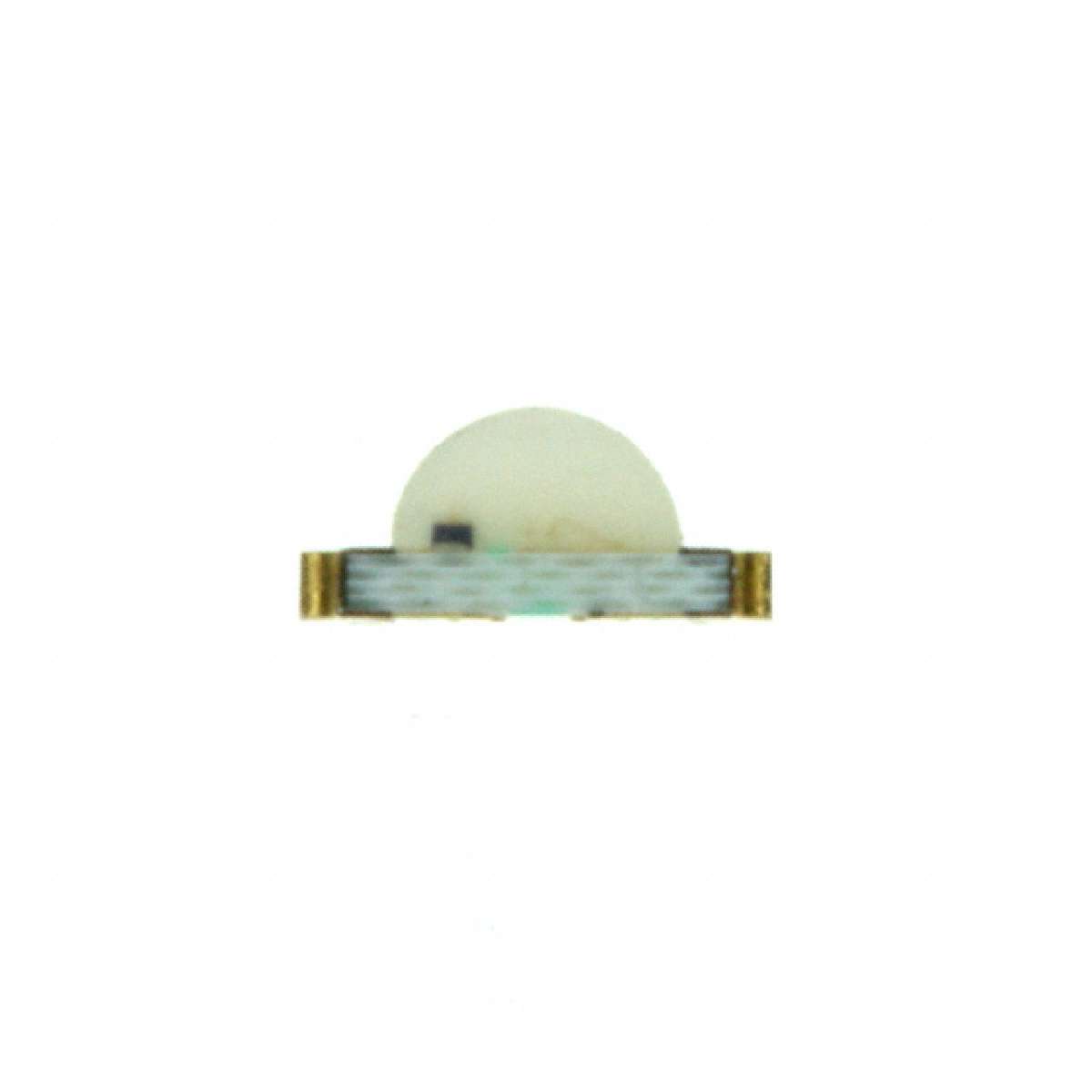

1204 Red Green Blue 150° 105/330/110 mcd Diffused 2/3.3/3.3 V LED Surface Mount
|
||
| 标准包装：2000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Viewing Angle: | 150 deg |
|---|---|
| If - Forward Current: | 20 mA |
| Luminous Intensity: | 105 mcd, 330 mcd, 110 mcd |
| Factory Pack Quantity: | 2000 |
| Wavelength/Color Temperature: | 625 nm, 530 nm, 475 nm |
| Package / Case: | 1204 |
| Product Category: | Standard LEDs - SMD |
| Lens Shape: | Semitube |
| Mounting Style: | SMD/SMT |
| Vf - Forward Voltage: | 2 V, 3.3 V, 3.3 V |
| ECCN | EAR99 |
| Packaging: | Reel |
| Manufacturer: | TT Electronics |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Optek / TT Electronics |
| RoHS: | Details |
| LED Size: | 1204 |
| Illumination Color: | RGB |
| Lens Dimensions: | 2 mm x 1 mm |
| Wavelength: | 625 nm, 530 nm, 475 nm |
| Maximum Operating Temperature: | + 85 C |
| 数据手册： |
|---|
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 14000 | Update On 2025-06-24 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 2000/2000 | |
| Location | -- | |
| DateCode | 2515 |
