ALDP124W
ALDP124W
  • ACTIVE
  • EAR99

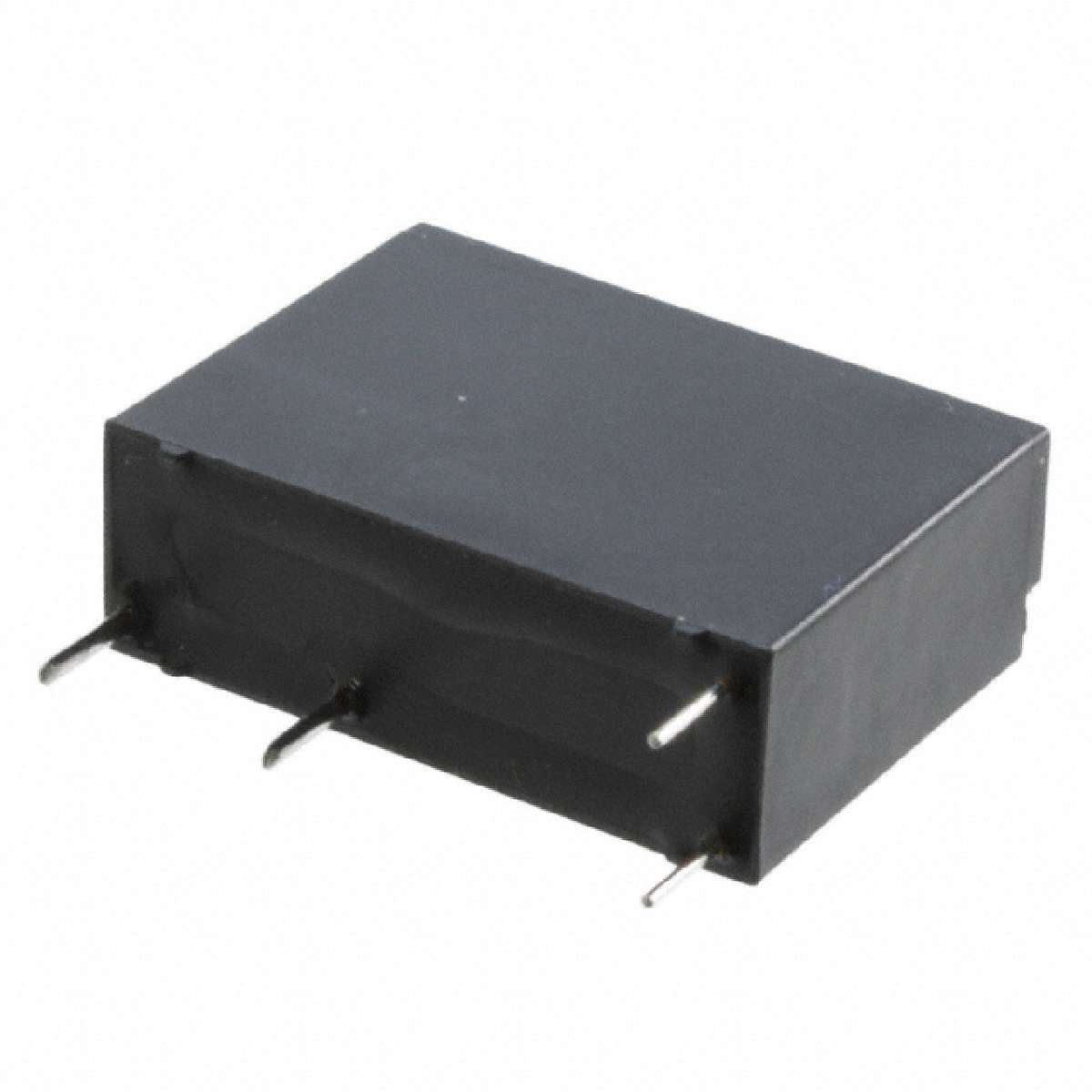

Product description : ALDP Series SPST 24 V 5 A Non-Latching PC Pin Through Hole Power Relay
SPQ:1
Datasheet : --
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews
Contact Form SPST-NO (1 Form A)
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Coil Type Non Latching
Category Relays
Manufacturer Panasonic Electric Works
Switching Voltage 277VAC - Max
Relay Type General Purpose
Coil Resistance 2.88 kOhms
Family Power Relays, Over 2 Amps
Contact Rating (Current) 5A
Packaging Tray
Coil Power 200 mW
Termination Style PC Pin
Turn On Voltage (Max) 18 VDC
Part Status Active
Coil Current 8.3mA
Release Time 10ms
Contact Material Silver Nickel (AgNi)
Series ALDP
Coil Voltage 24VDC
Mounting Type Through Hole
Operating Temperature -40°C ~ 85°C
ECCN EAR99
