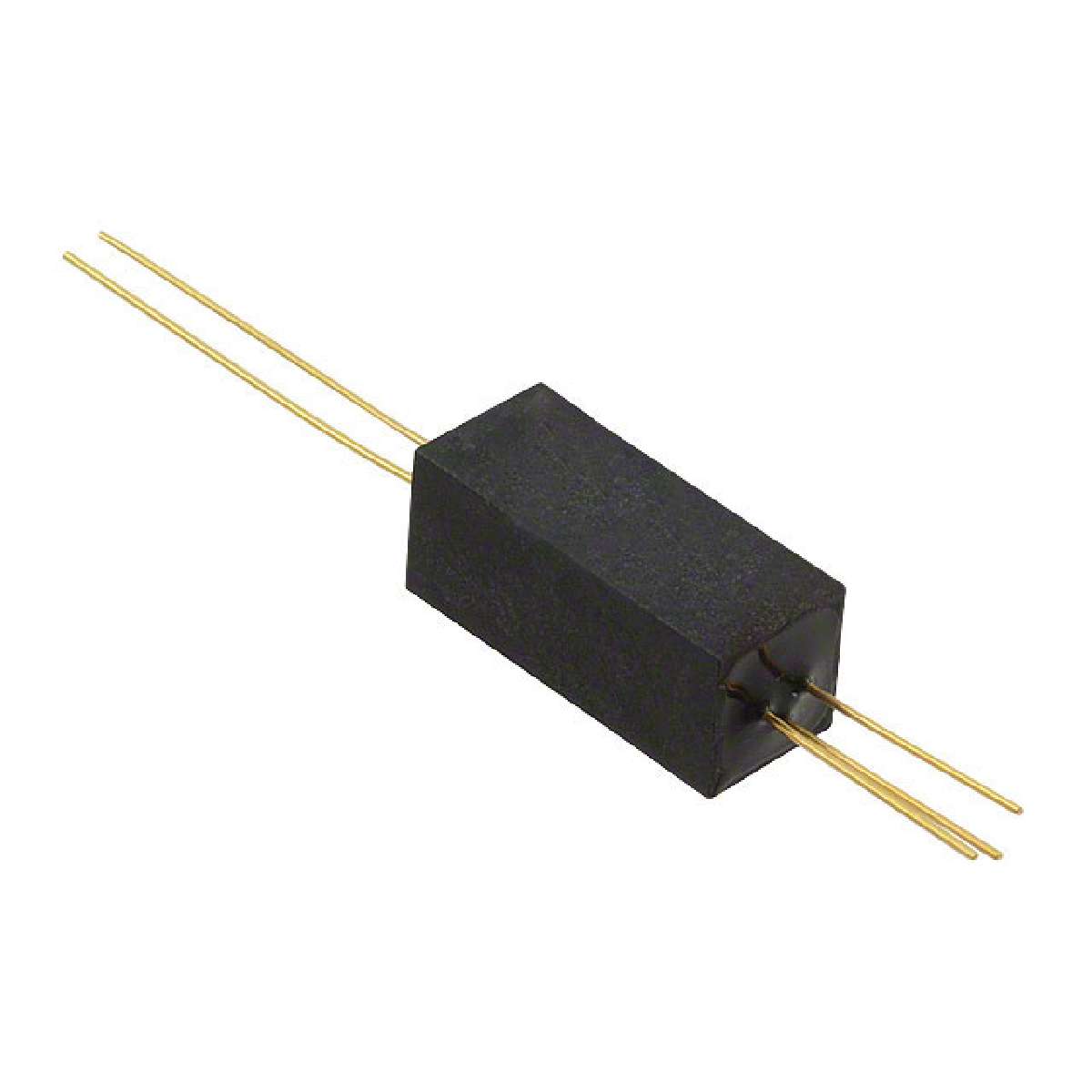

OPI120

ACTIVE Axial EAR99
Product description : Single Channel 25 V 15000 VDC Axial Through Hole Isolator Optocoupler
SPQ：100
Datasheet : OPI120.pdf

Voltage - Isolation	15000VDC
Supplier Device Package	Axial
Part Status	Active
Manufacturer	TT Electronics/Optek Technology
Number of Channels	1
Voltage - Forward (Vf) (Typ)	1.5V (Max)
Current - DC Forward (If) (Max)	150mA
Mounting Type	Through Hole
Operating Temperature	-55°C ~ 100°C
Input Type	DC
Package / Case	Axial - 5 leads
Current Transfer Ratio (Min)	20% @ 10mA
Category	Isolators
Voltage - Output (Max)	25V
Output Type	Transistor with Base
Rise / Fall Time (Typ)	2µs, 2µs
Family	Optoisolators - Transistor, Photovoltaic Output
Vce Saturation (Max)	500mV
Packaging	Bulk
ECCN	EAR99

Datasheet： OPI120.pdf
