| OPI110C | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

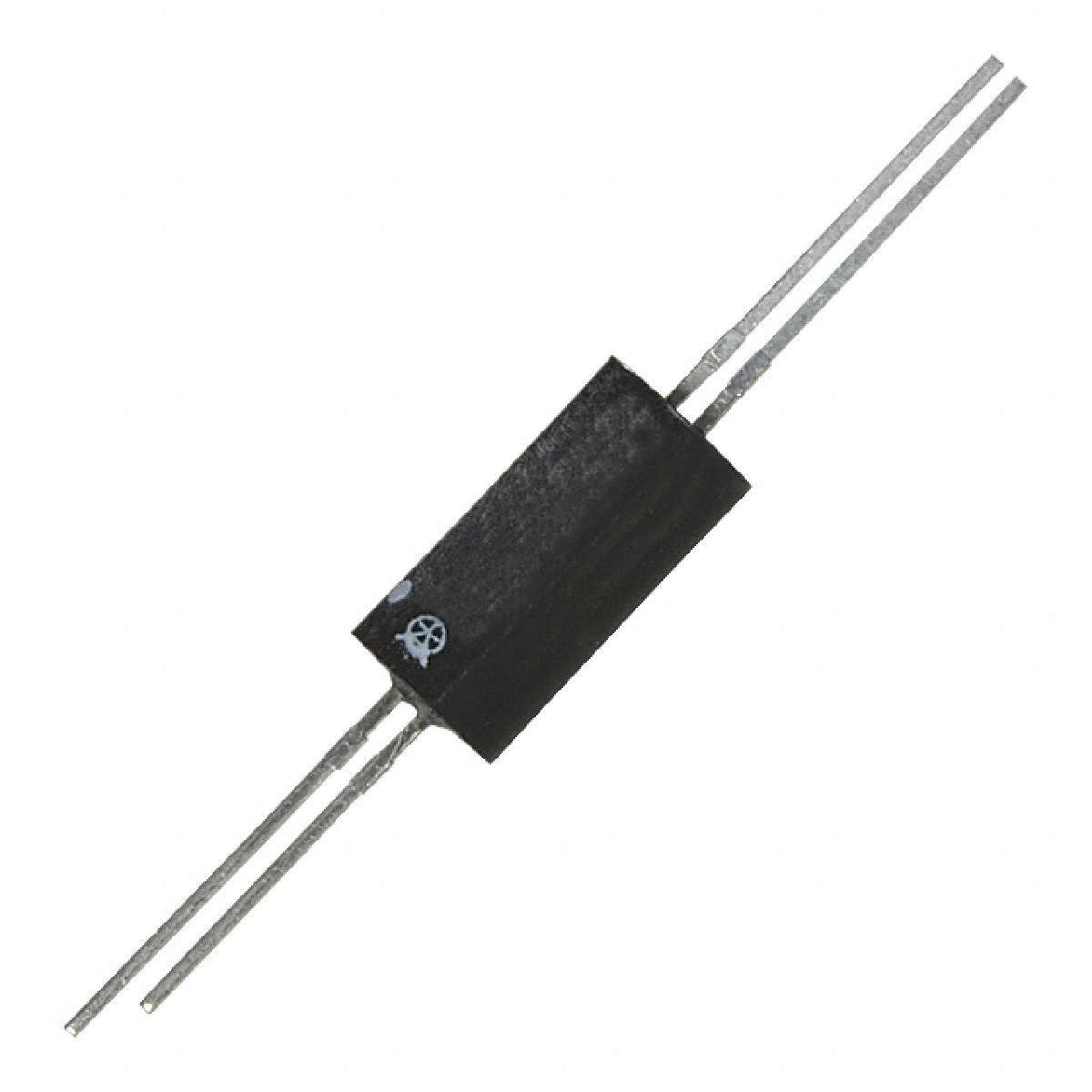

OPI110C Series Single Channel 10 kVrms 100 % Optically Coupled Isolator
|
||
| 标准包装：100 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Number of Channels: | 1 Channel |
|---|---|
| Width: | 6.6 mm |
| Maximum Collector Emitter Saturation Voltage: | 0.4 V |
| Length: | 13.97 mm |
| Manufacturer: | TT Electronics |
| Vr - Reverse Voltage: | 2 V |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Optek / TT Electronics |
| Product Category: | Transistor Output Optocouplers |
| Vf - Forward Voltage: | 1.6 V |
| ECCN | EAR99 |
| Maximum Collector Emitter Voltage: | 30 V |
| Packaging: | Bulk |
| Isolation Voltage: | 10000 Vrms |
| If - Forward Current: | 40 mA |
| Output Type: | NPN Phototransistor |
| Pd - Power Dissipation: | 100 mW |
| Factory Pack Quantity: | 25 |
| RoHS: | Details |
| Height: | 5.84 mm |
| Maximum Operating Temperature: | + 85 C |
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Stock
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
| stock | 86 | Update On 2025-06-18 |
|---|---|---|
| Lead-Time | -- | |
| SPQ/MOQ | 100/1 | |
| Location | -- | |
| DateCode | 2504 |
