| OPB732WZ | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

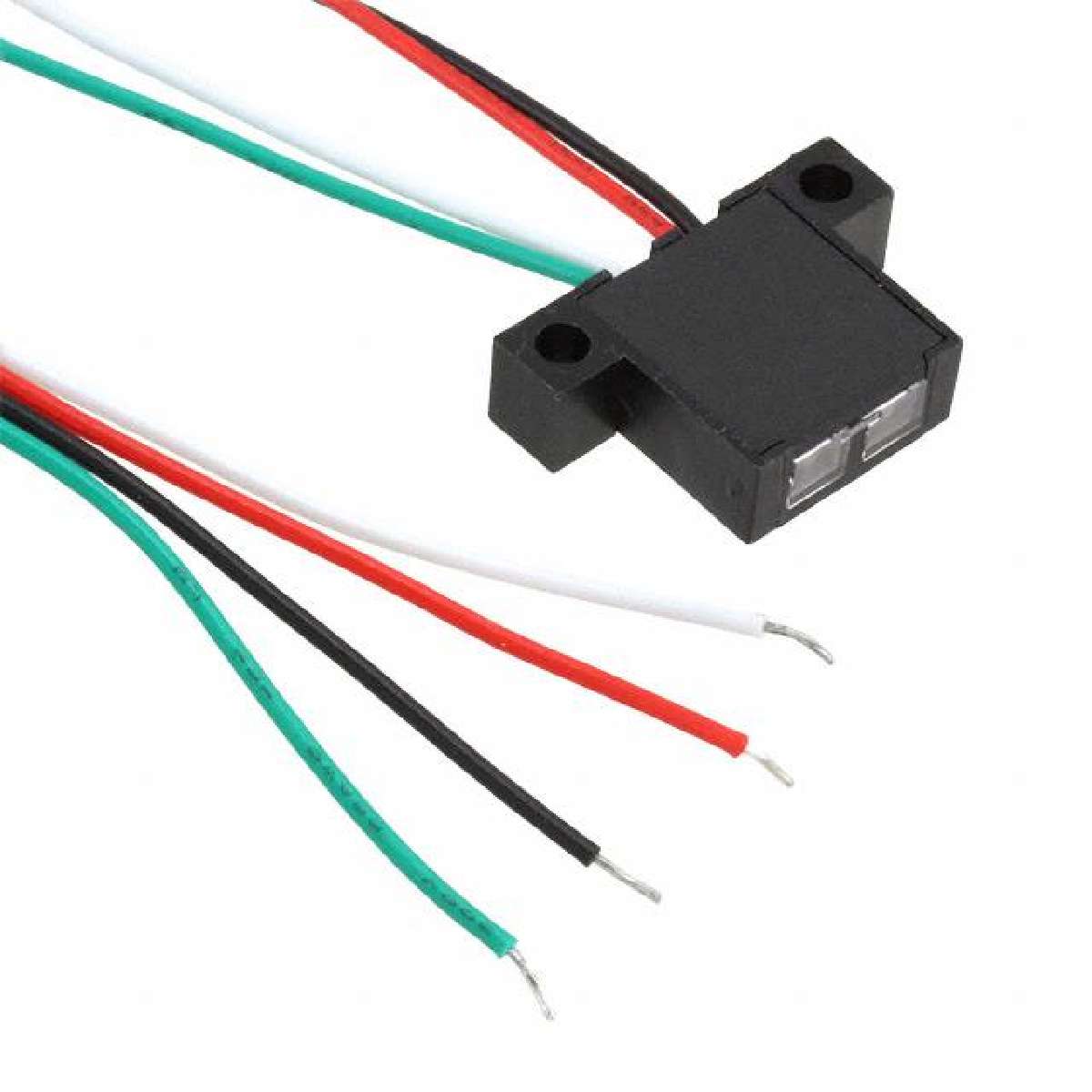

OPB732 Series 30 V 850 nm 50 mA 26 AWG Tab Mount Long Distance Reflective Switch
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Maximum Collector Current: | 50 mA |
|---|---|
| Width: | 5.08 mm |
| Sensing Method: | Reflective |
| Length: | 19.81 mm |
| Manufacturer: | TT Electronics |
| Vr - Reverse Voltage: | 3 V |
| Minimum Operating Temperature: | - 40 C |
| Brand: | Optek / TT Electronics |
| Product Category: | Optical Switches, Reflective, Phototransistor Output |
| Height: | 12.7 mm |
| Wavelength: | 850 nm |
| Maximum Operating Temperature: | + 85 C |
| Number of Channels: | 1 |
| Packaging: | Bulk |
| Sensing Distance: | 2.54 mm |
| If - Forward Current: | 20 mA |
| Output Type: | Phototransistor |
| Pd - Power Dissipation: | 100 mW |
| Factory Pack Quantity: | 25 |
| RoHS: | Details |
| Collector- Emitter Voltage VCEO Max: | 30 V |
| Mounting Style: | Wire |
| Vf - Forward Voltage: | 1.8 V |
| ECCN | EAR99 |
