| OPB616 | ||
|---|---|---|
|
|
||
|
||

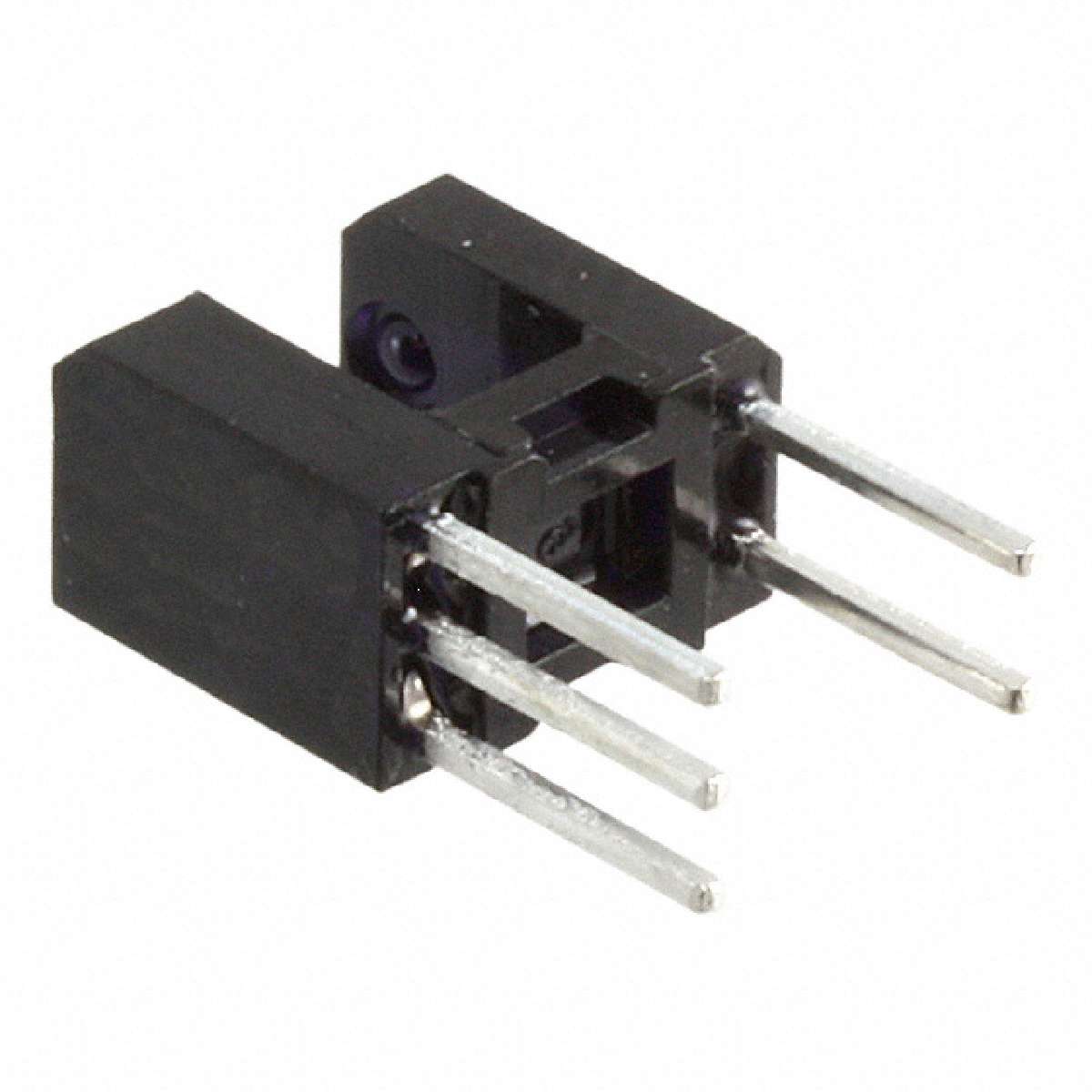

| Product description : 890 nm 50 mA 1.7 Vf Photologic Slotted Optical Switch | ||
| SPQ：100 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Low Level Output Voltage: | 0.4 V |
|---|---|
| Packaging: | Tube |
| Minimum Operating Temperature: | - 40 C |
| Ir - Reverse Current: | 100 uA |
| Height: | 8.38 mm |
| Mounting Style: | Through Hole |
| Number of Channels: | 1 |
| Length: | 8.89 mm |
| Manufacturer: | TT Electronics |
| Vr - Reverse Voltage: | 3 V |
| Factory Pack Quantity: | 25 |
| Slot Width: | 4.06 mm |
| Low Level Output Current: | 16 mA |
| Rise Time: | 30 ns |
| Maximum Operating Temperature: | + 100 C |
| Width: | 5.33 mm |
| Sensing Method: | Transmissive, Slotted |
| Pd - Power Dissipation: | 240 mW |
| High Level Output Current: | 100 uA |
| Propagation Delay Time: | 0.6 us, 3 us |
| Vf - Forward Voltage: | 1.6 V |
| Fall Time: | 30 ns |
| If - Forward Current: | 50 mA |
| Output Type: | Open Collector, Buffer |
| Operating Supply Voltage: | 4.5 V to 16 V |
| Brand: | Optek / TT Electronics |
| RoHS: | Details |
| Product Category: | Optical Switches, Transmissive, Photo IC Output |
| Wavelength: | 890 nm |
| ECCN | EAR99 |
