| OD8025-24HB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

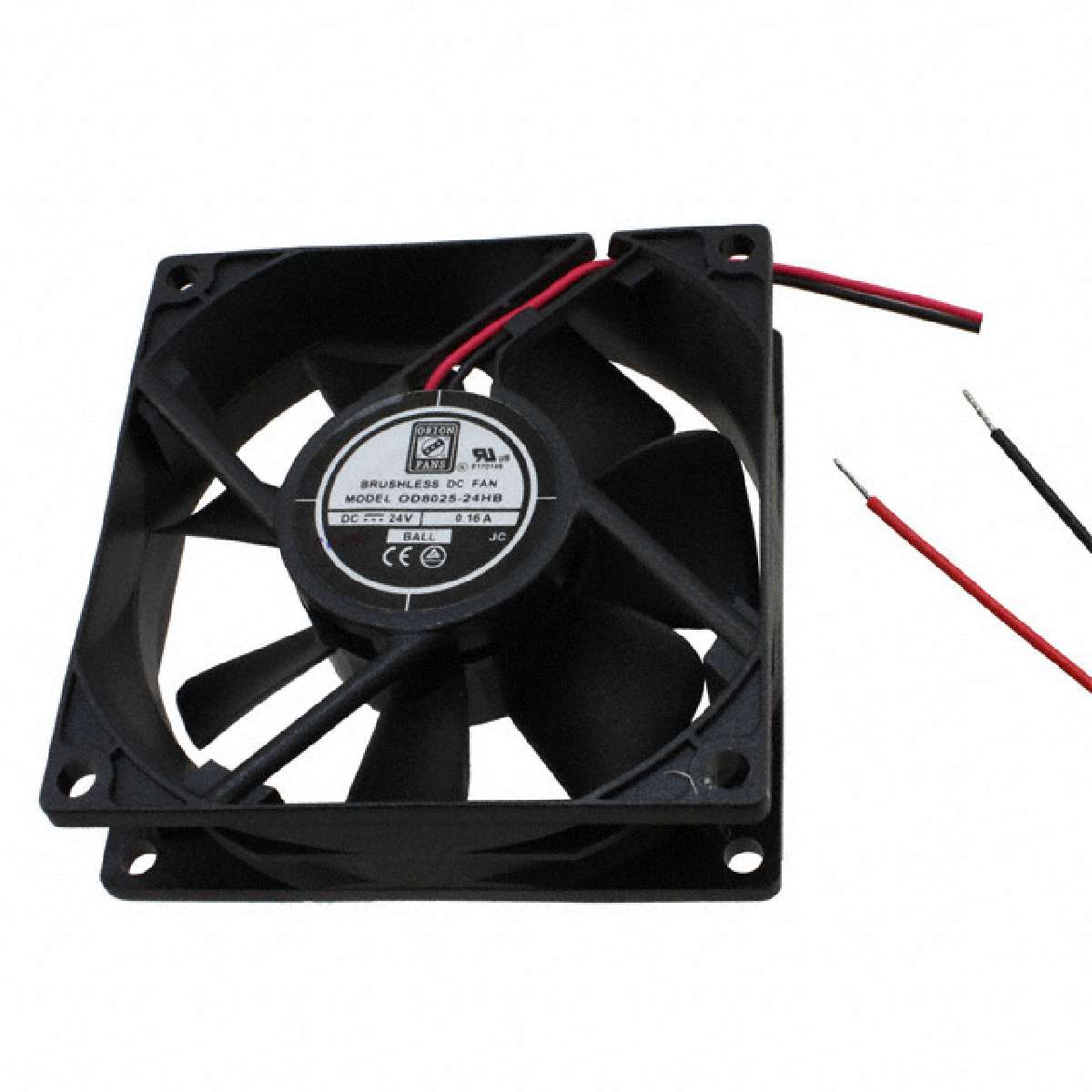

OD8025 Series 3100 RPM 80 x 80 x 25 mm 40 CFM 24V Dual Ball Bearing DC Fan
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage Range | 12 ~ 28VDC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 40.0 CFM (1.13m³/min) |
| Series | OD8025 |
| Power (Watts) | 2.41W |
| RPM | 3100 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
| Static Pressure | 0.160 in H2O (39.8 Pa) |
| Approvals | TUV, UR |
| Size / Dimension | Square - 80mm L x 80mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage - Rated | 24VDC |
| Noise | 35 dB |
| Family | DC Fans |
| Width | 25mm |
| Bearing Type | Ball |
| Current Rating | 0.110A |
