| OD8015-24HB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

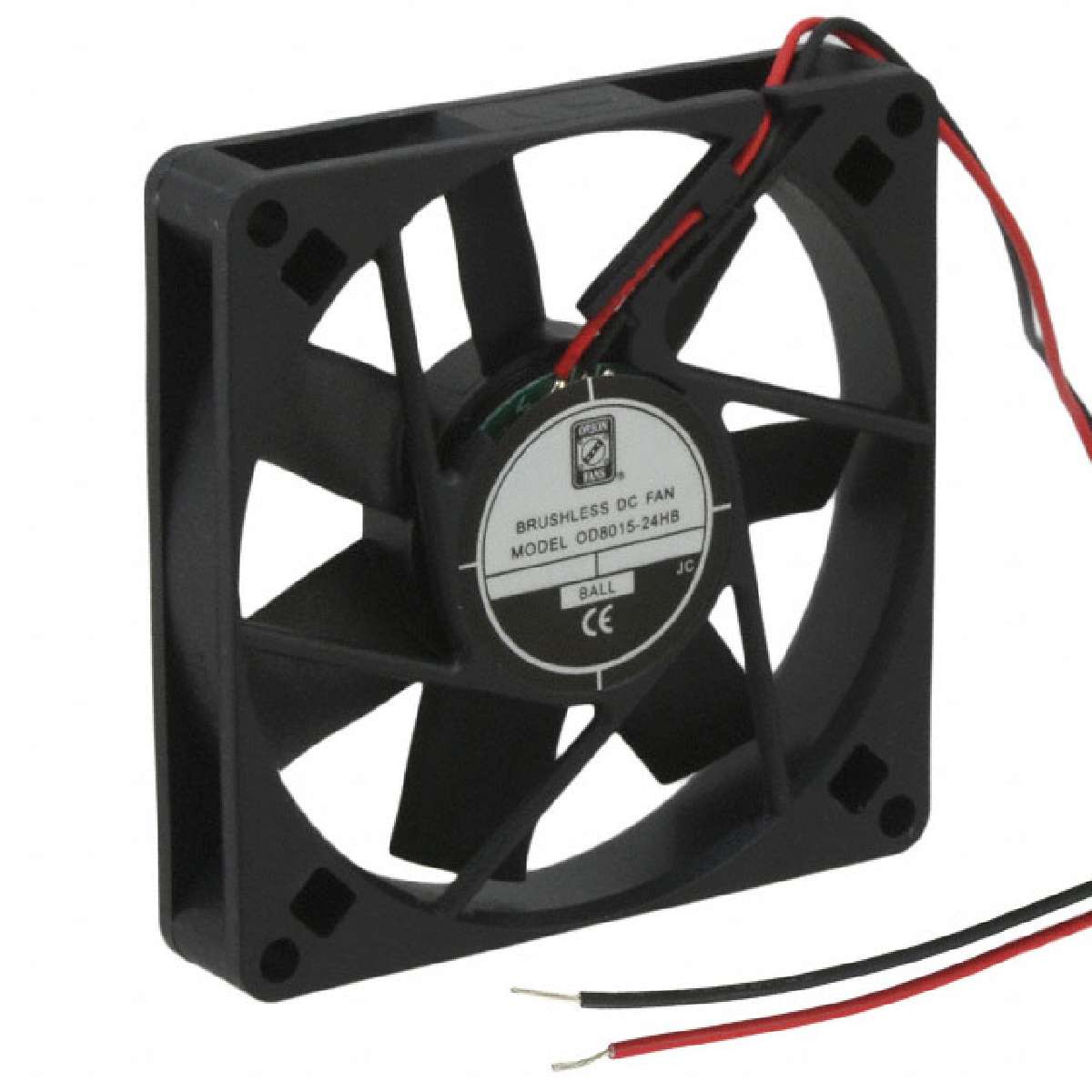

OD8015 Series 3200 RPM 80 x 80 x 15 mm 30 CFM 24 V Ball Bearing DC Fan
|
||
| 标准包装：20 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage Range | 18 ~ 28VDC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 30.0 CFM (0.850m³/min) |
| Series | OD8015 |
| Family | DC Fans |
| Width | 15.00mm |
| Bearing Type | Ball |
| Current Rating | 0.040A |
| Static Pressure | 0.110 in H2O (27.4 Pa) |
| Approvals | TUV, UR |
| Size / Dimension | Square - 80mm L x 80mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage - Rated | 24VDC |
| Noise | 33 dB |
| RPM | 3200 RPM |
| Operating Temperature | -4 ~ 176°F (-20 ~ 80°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
