| OD2510-05HB | ||
|---|---|---|
|
|
||
|
||

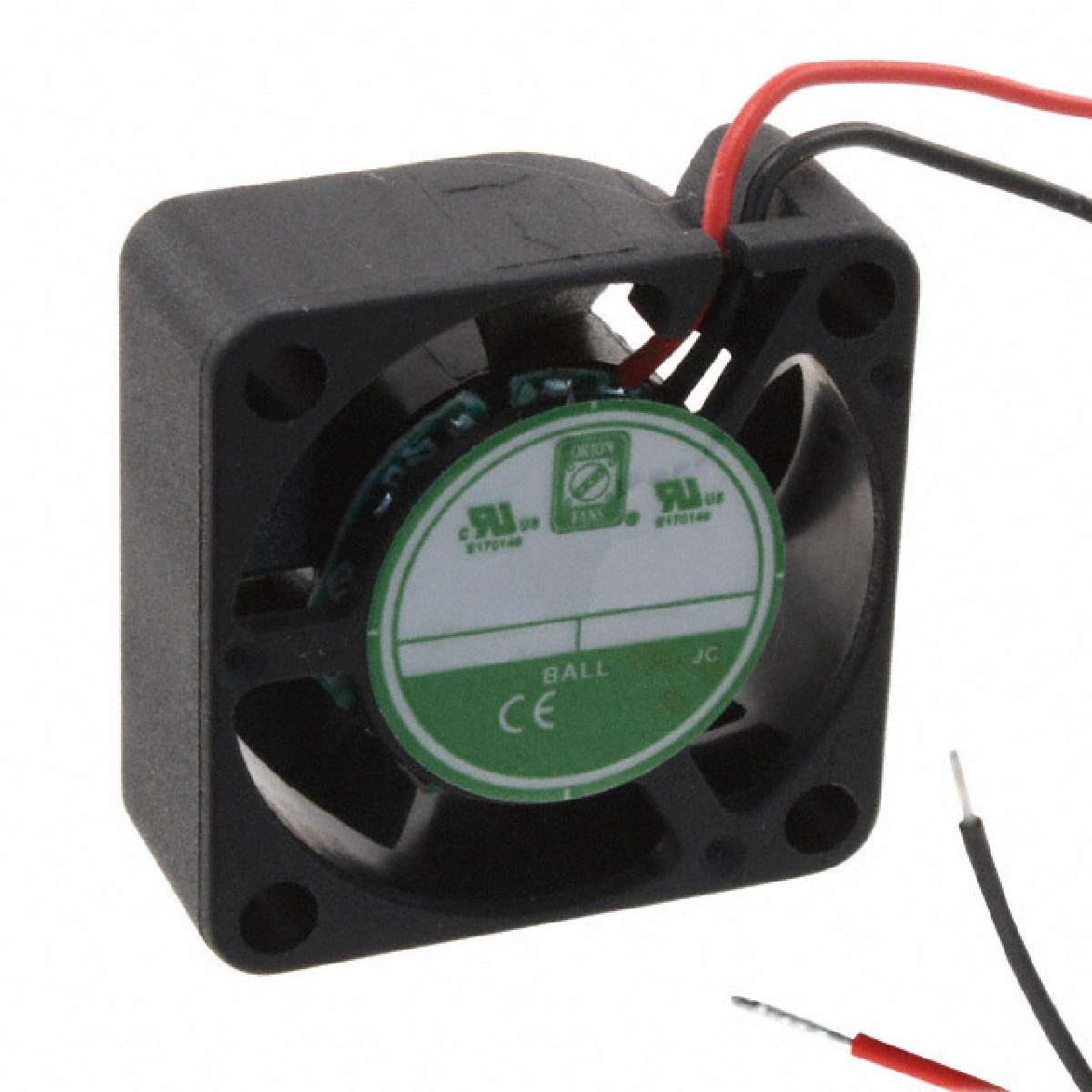

| Product description : OD2510 Series 12000 RPM 25 x 25 x 10 mm 2.7 CFM 5 V Ball Bearing DC Fan | ||
| SPQ：40 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage Range | 3.5 ~ 6VDC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 2.7 CFM (0.076m³/min) |
| Series | OD2510 |
| Family | DC Fans |
| Width | 10.00mm |
| Bearing Type | Ball |
| Current Rating | 0.180A |
| Static Pressure | 0.230 in H2O (57.3 Pa) |
| Approvals | TUV, UR |
| Size / Dimension | Square - 25.5mm L x 25.5mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage - Rated | 5VDC |
| Noise | 31 dB |
| RPM | 12000 RPM |
| Operating Temperature | -13 ~ 158°F (-25 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
