| OD127-12HB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

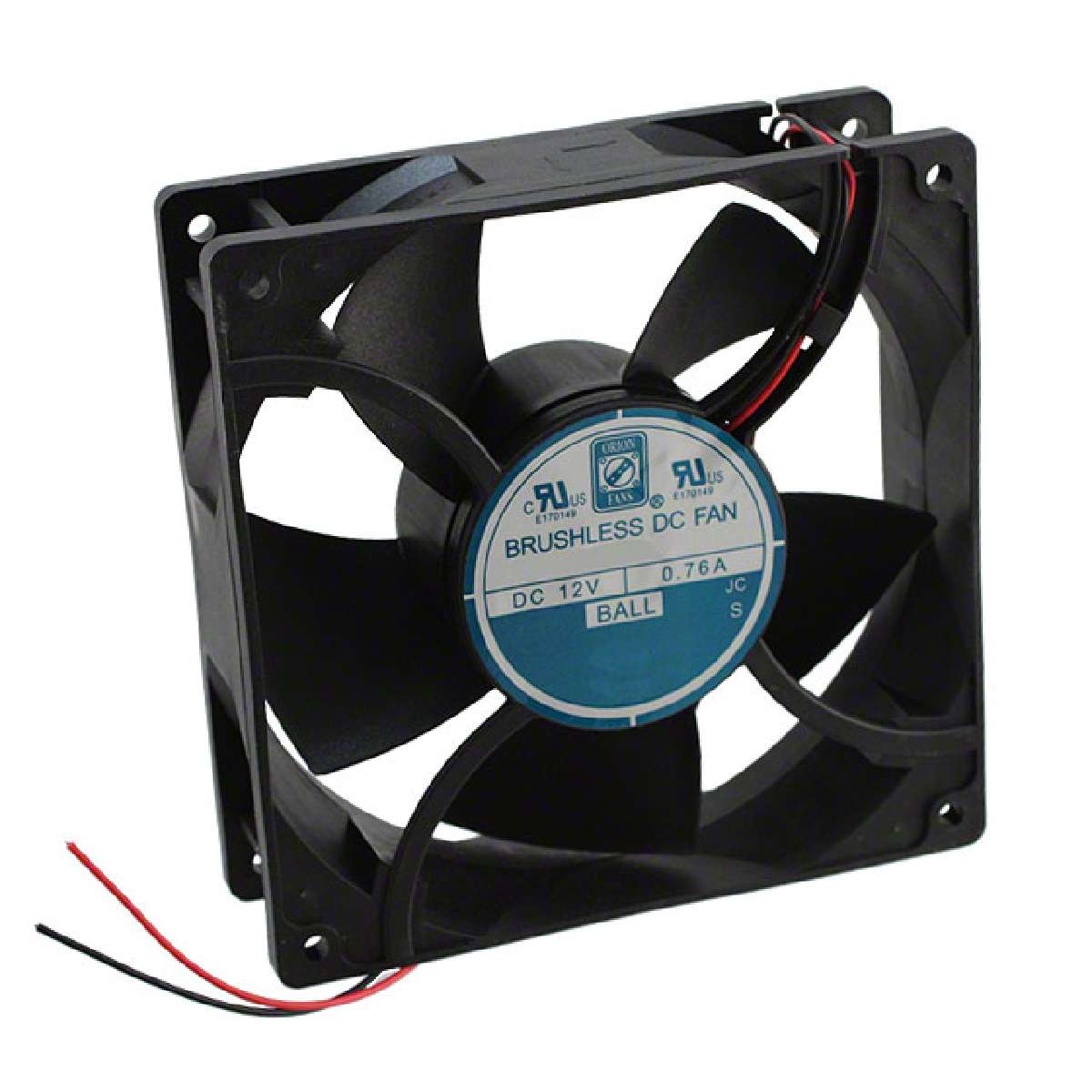

OD127 Series 3500 RPM 127 x 127 x 38.5 mm 193 CFM 12V Dual Ball Bearing DC Fan
|
||
| 标准包装：20 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 2 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage Range | 8 ~ 14VDC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 193.0 CFM (5.46m³/min) |
| Series | OD127 |
| Family | DC Fans |
| Width | 38.5mm |
| Bearing Type | Ball |
| Current Rating | 1.2A |
| Static Pressure | 0.460 in H2O (114.6 Pa) |
| Approvals | TUV, UR |
| Size / Dimension | Square - 127mm L x 127mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage - Rated | 12VDC |
| Noise | 56 dB |
| RPM | 3500 RPM |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
