OD1238-60HB

ACTIVE EAR99

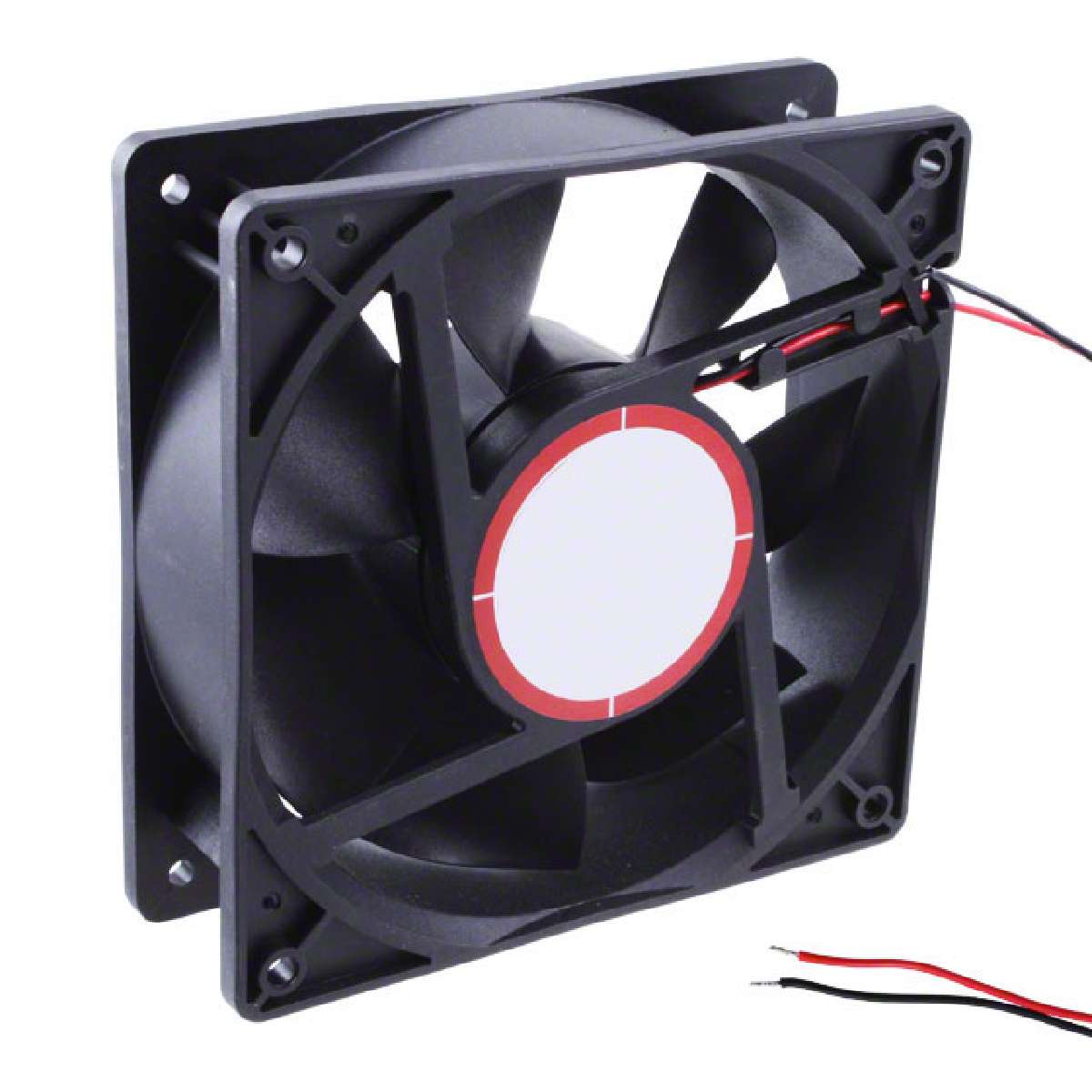

Product description : OD1238 Series 2600 RPM 120 x 120 x 38 mm 115 CFM 60 V Dual Ball Bearing DC Fan
SPQ：20
Datasheet : OD1238-60HB.pdf

Termination	2 Wire Leads
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Voltage Range	36 ~ 72VDC
Part Status	Active
Manufacturer	Orion Fans
Air Flow	115.0 CFM (3.25m³/min)
Series	OD1238
Power (Watts)	14.4W
RPM	2600 RPM
Operating Temperature	-4 ~ 158°F (-20 ~ 70°C)
Fan Type	Tubeaxial
ECCN	EAR99
Static Pressure	0.300 in H2O (74.7 Pa)
Approvals	TUV, UR
Size / Dimension	Square - 120mm L x 120mm H
Category	Fans, Thermal Management
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Voltage - Rated	60VDC
Noise	41 dB
Family	DC Fans
Width	38mm
Bearing Type	Ball
Current Rating	0.300A

Datasheet： OD1238-60HB.pdf
