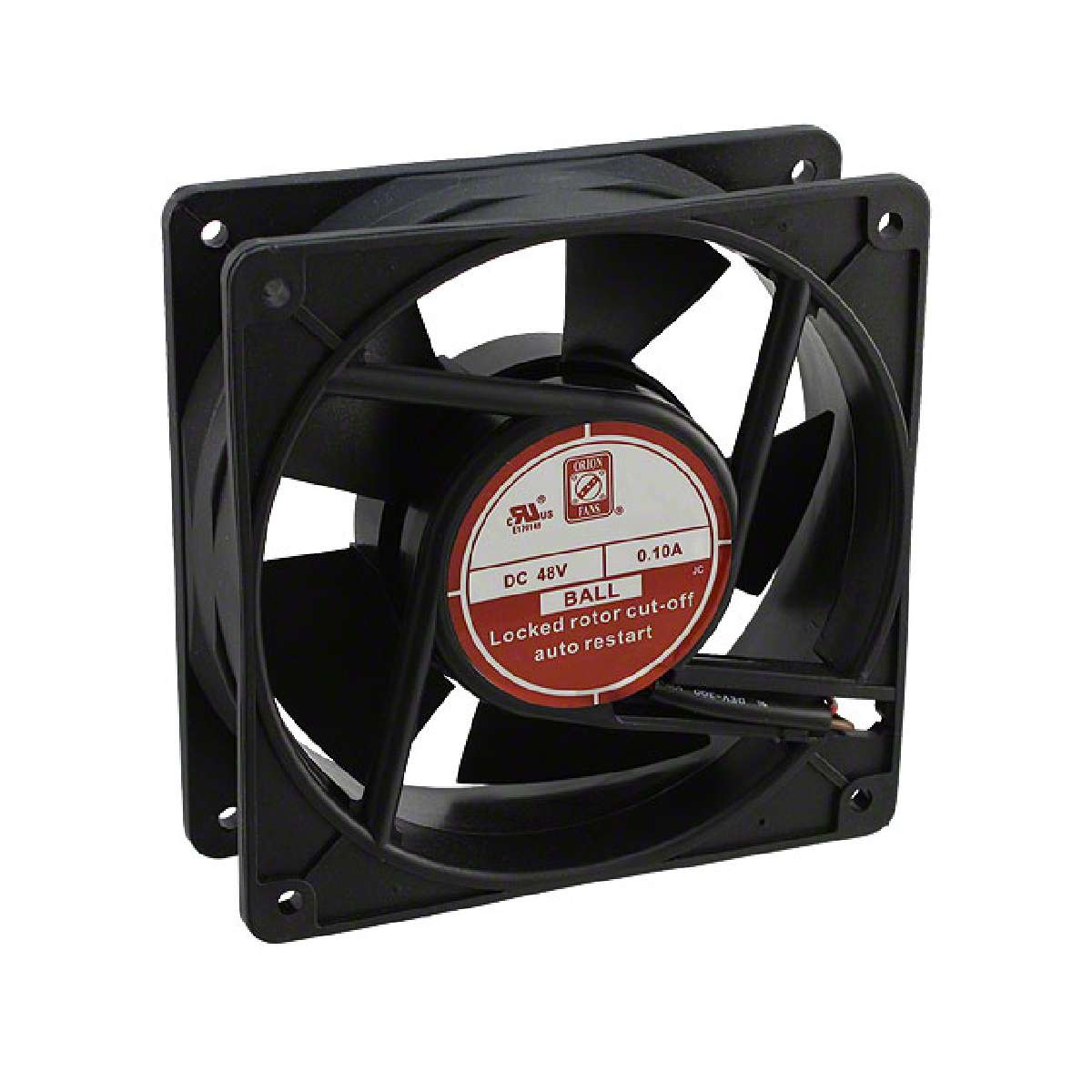

| OD1238-48HTB | ||
|---|---|---|
|
|
||
|
||
| Product description : OD1238 Series 3000 RPM 120 x 120 x 38 mm 100 CFM 48 V Dual Ball Bearing DC Fan | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Termination | 2 Terminals |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage Range | 28 ~ 56VDC |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 100.0 CFM (2.80m³/min) |
| Series | OD1238 |
| Power (Watts) | 4.8W |
| RPM | 3000 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
| Static Pressure | 0.280 in H2O (69.7 Pa) |
| Approvals | TUV, UR |
| Size / Dimension | Square - 120mm L x 120mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage - Rated | 48VDC |
| Noise | 42 dB |
| Family | DC Fans |
| Width | 38mm |
| Bearing Type | Ball |
| Current Rating | 0.100A |
