| OD1238-24HB01A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

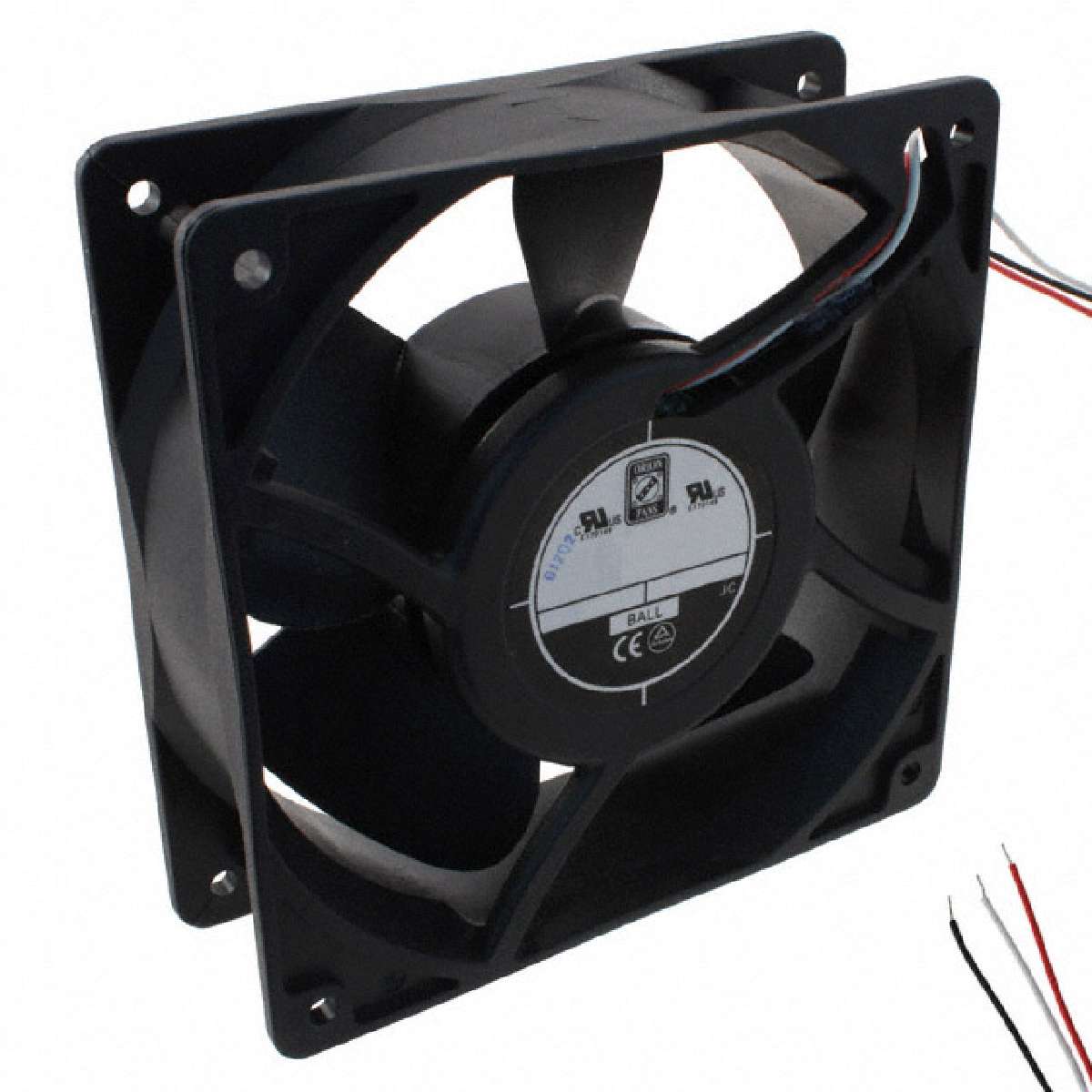

OD1238 Series 2800 RPM 120 x 120 x 38 mm 105 CFM 24V Dual Ball Bearing DC Fan
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Termination | 3 Wire Leads |
|---|---|
| Material - Blade | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Features | Speed Sensor (Tach) |
| Part Status | Active |
| Manufacturer | Orion Fans |
| Air Flow | 105.0 CFM (2.97m³/min) |
| Series | OD1238 |
| Power (Watts) | 7.00W |
| RPM | 2800 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Fan Type | Tubeaxial |
| ECCN | EAR99 |
| Static Pressure | 0.240 in H2O (59.8 Pa) |
| Approvals | TUV, UR |
| Size / Dimension | Square - 120mm L x 120mm H |
| Category | Fans, Thermal Management |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Voltage - Rated | 24VDC |
| Noise | 43 dB |
| Family | DC Fans |
| Width | 38.5mm |
| Bearing Type | Ball |
| Current Rating | 0.320A |
