| OD1232-12HB | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

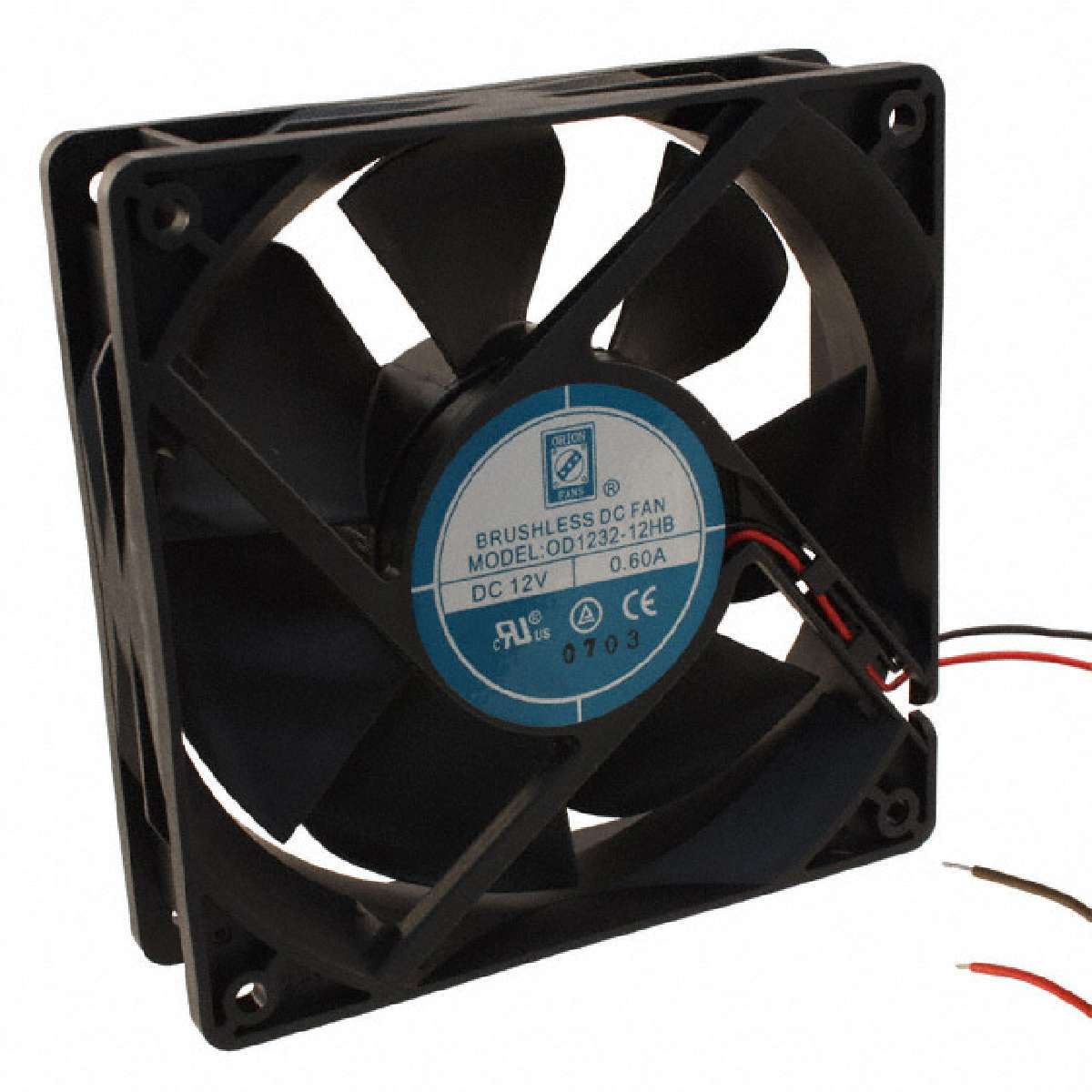

OD1232 Series 3750 RPM 120 x 120 x 32 mm 120 CFM 12 V Dual Ball Bearing DC Fan
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | DC Fans |
|---|---|
| Width: | 32 mm |
| Housing Material: | Plastic |
| Manufacturer: | Orion Fans |
| Speed: | 3750 RPM |
| Operating Supply Voltage: | 12 VDC |
| Factory Pack Quantity: | 1 |
| Frame Dimensions - mm: | 120 mm L x 32 mm W x 120 mm H |
| Termination Style: | Wire Leads |
| Size: | 120 mm |
| Bearing Type: | Ball |
| ECCN | EAR99 |
| Noise: | 51 dBA |
| Power Rating: | 600 mW |
| Length: | 120 mm |
| Current Type: | DC |
| Airflow: | 120 CFM |
| Series: | OD1232 |
| Brand: | Orion Fans |
| RoHS: | Details |
| Product Category: | DC Fans |
| Height: | 120 mm |
| Type: | Brushless Axial Fan |
