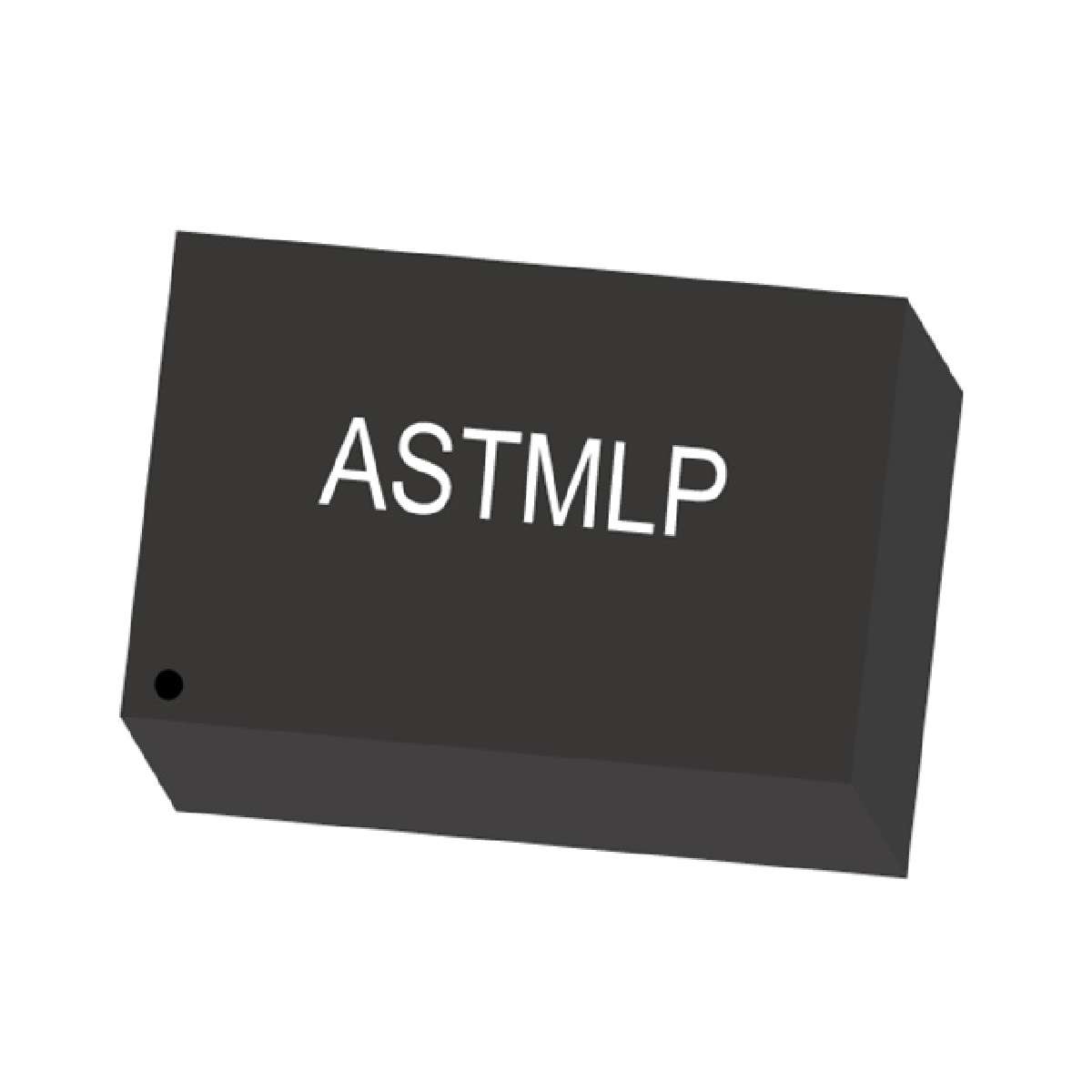

| ASTMLPE-100.000MHZ-LJ-E-T | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
MEMS OSC XO 100.0000MHZ LVCMOS
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Frequency Stability | ±20ppm |
|---|---|
| Package / Case | 4-SMD, No Lead (DFN, LCC) |
| Function | Enable/Disable |
| Output | LVCMOS |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Category | Crystals and Oscillators |
| Series | ASTMLP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Packaging | Cut Tape (CT) |
| Voltage - Supply | 2.25 V ~ 3.63 V |
| Type | MEMS (Silicon) |
| Height | 0.031" (0.80mm) |
| Current - Supply (Max) | 7.5mA |
| Part Status | Active |
| Manufacturer | Abracon LLC |
| Family | Oscillators |
| Frequency | 100MHz |
| Current - Supply (Disable) (Max) | 4.2mA |
