| STTH30ACS06W | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

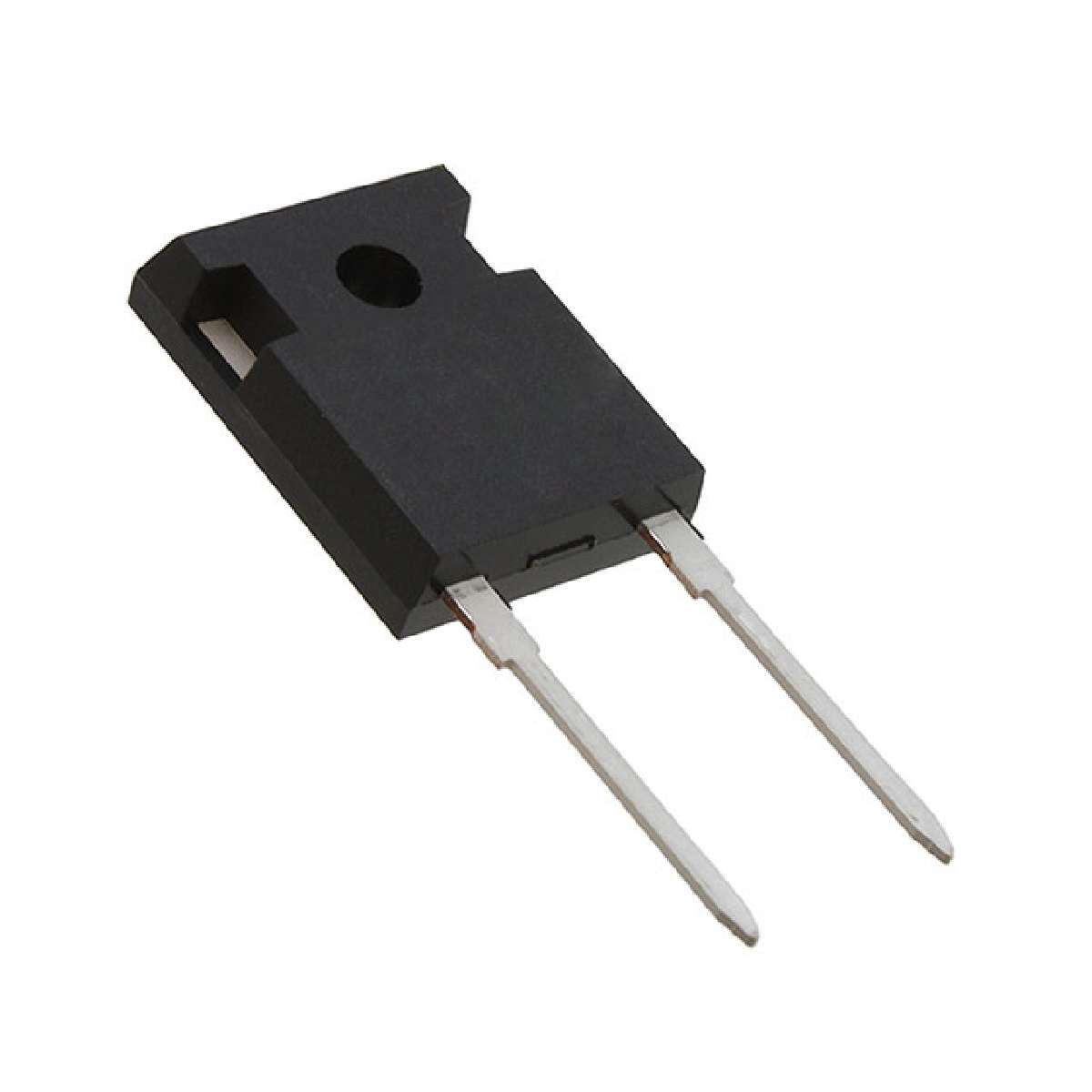

Turbo 2 600 V 30 A Flange Mount Ultrafast High Voltage Rectifier - DO-247
|
||
| 标准包装：30 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Operating Temperature - Junction | 175°C (Max) |
|---|---|
| Package / Case | TO-247-2 |
| Part Status | Active |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Manufacturer | STMicroelectronics |
| Current - Reverse Leakage @ Vr | 5µA @ 600V |
| Mounting Type | Through Hole |
| Voltage - Forward (Vf) (Max) @ If | 2.4V @ 30A |
| ECCN | EAR99 |
| Current - Average Rectified (Io) | 30A |
| Supplier Device Package | TO-247-2 |
| Diode Type | Standard |
| Category | Discrete Semiconductor Products |
| Reverse Recovery Time (trr) | 55ns |
| Family | Diodes - Rectifiers - Single |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Packaging | Tube |
