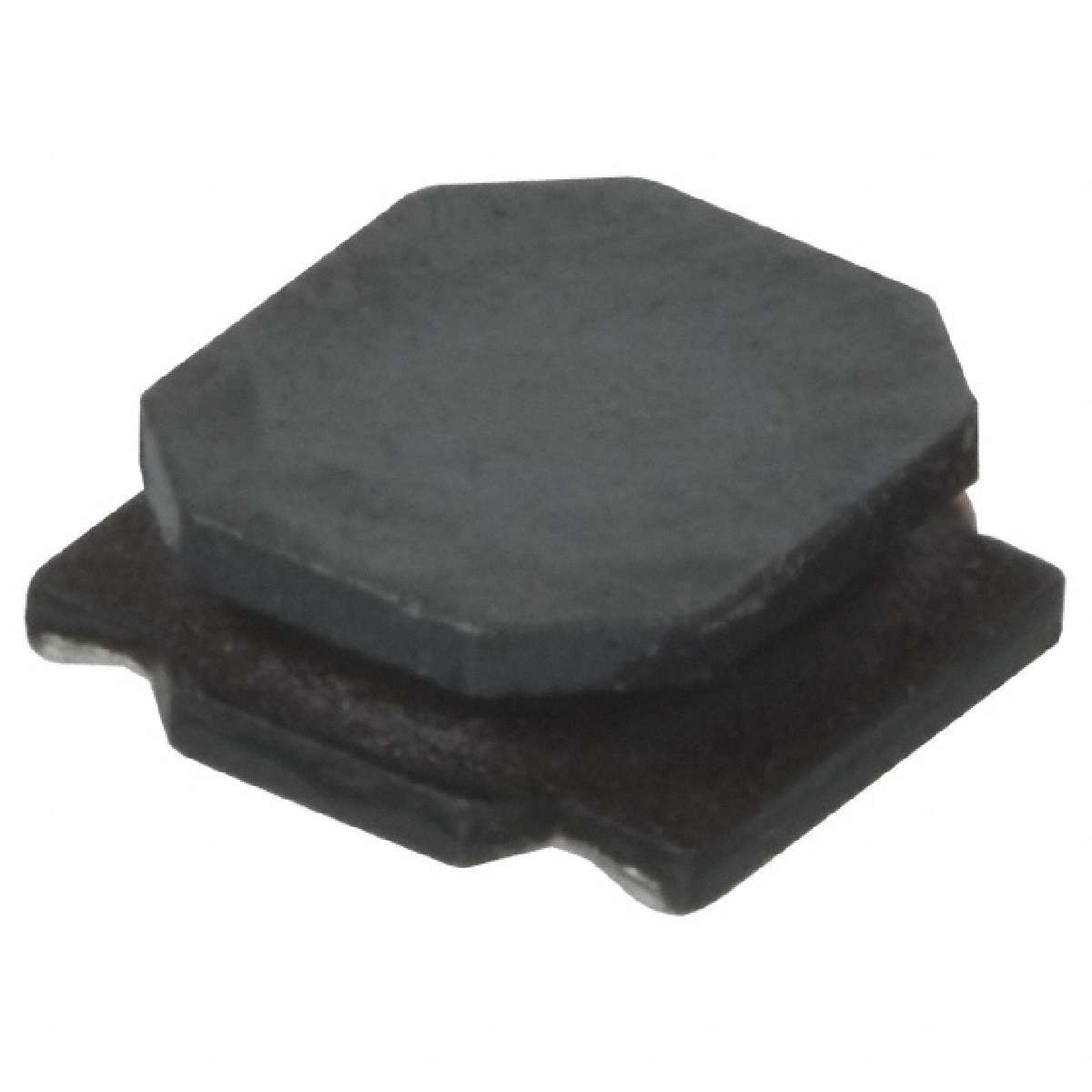

| NR3012T100M | ||
|---|---|---|
|
|
||
|
||
| Product description : NR Series 3 x 3 x 1.2 mm 10 uH ±20% 100 KHz 348 mOhm Wirewound Power Inductor | ||
| SPQ：2000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Type | Wirewound |
|---|---|
| Inductance | 10µH |
| Frequency - Self Resonant | 32MHz |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.047" (1.20mm) |
| Series | NR |
| Mounting Type | Surface Mount |
| Operating Temperature | -25°C ~ 120°C |
| Packaging | Cut Tape (CT) |
| Frequency - Test | 100kHz |
| Package / Case | Nonstandard |
| Tolerance | ±20% |
| Current - Saturation | 540mA |
| Part Status | Active |
| Manufacturer | Taiyo Yuden |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Shielded |
| DC Resistance (DCR) | 348 mOhm Max |
| Current Rating | 630mA |
| ECCN | EAR99 |
