NJL1302DG specifications -Ameya360 electronic components purchase network


NJL1302DG

ACTIVE EAR99

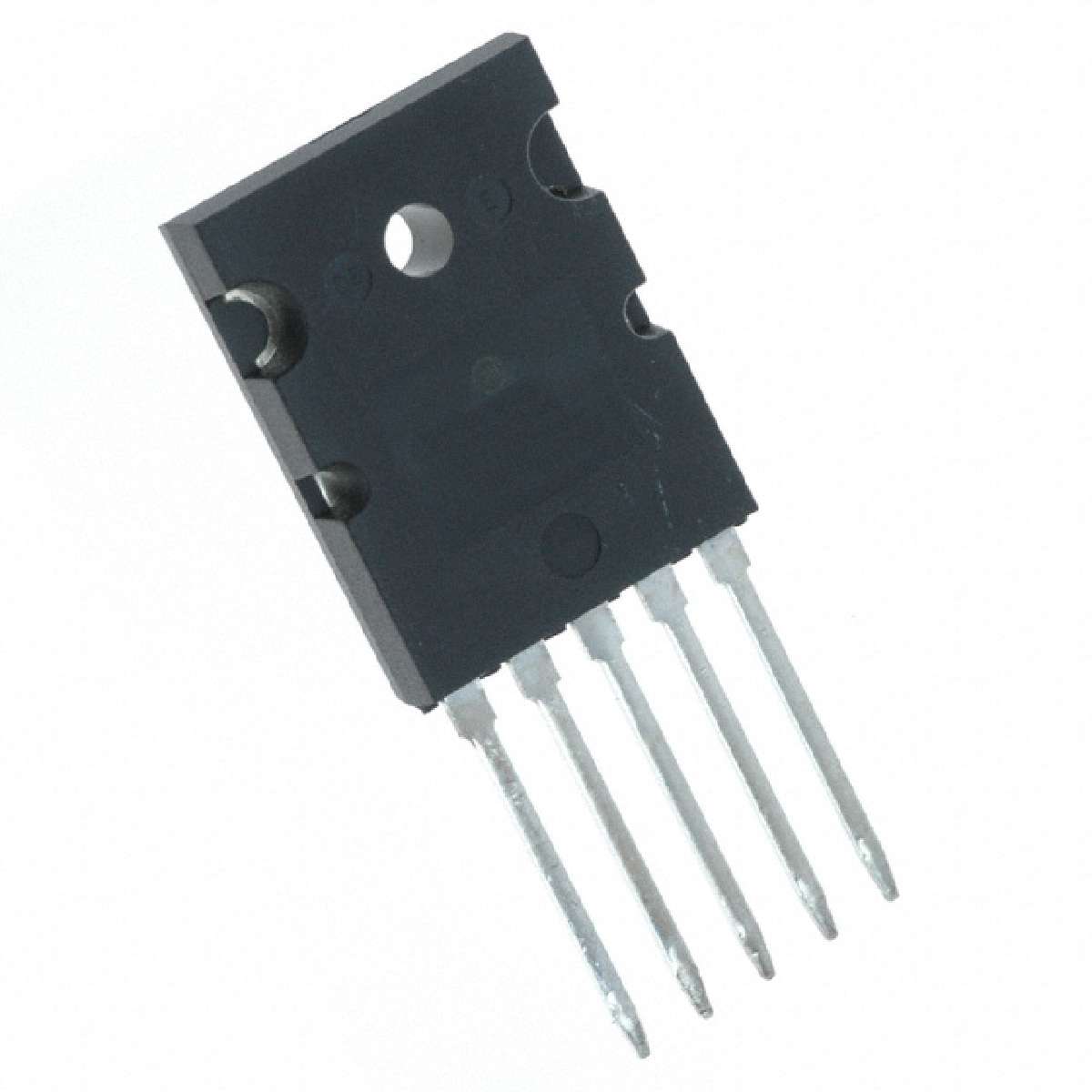

Product description : NJL Series 260 V 15 A PNP Complementary ThermalTrak™ Transistor - TO-264-5
SPQ：1
Datasheet : NJL1302DG.pdf

Width:	4.89 mm
Emitter- Base Voltage VEBO:	5 V
Collector- Base Voltage VCBO:	260 V
DC Collector/Base Gain hfe Min:	75
Series:	NJL1302D
Minimum Operating Temperature:	- 65 C
Factory Pack Quantity:	25
RoHS:	Details
Product Category:	Bipolar Transistors - BJT
Gain Bandwidth Product fT:	30 MHz
Configuration:	Single
Maximum Operating Temperature:	+ 150 C
Maximum DC Collector Current:	15 A
Packaging:	Tube
Length:	19.89 mm
Manufacturer:	ON Semiconductor
Pd - Power Dissipation:	200000 mW
Transistor Polarity:	PNP
Brand:	ON Semiconductor
Package / Case:	TO-264-5
Collector- Emitter Voltage VCEO Max:	260 V
Height:	25.98 mm
Mounting Style:	Through Hole
ECCN	EAR99

Datasheet： NJL1302DG.pdf
