NC7WZ86L8X

ACTIVE 8-MicroPak™ EAR99
Product description : NC7WZ86 Series 5.5 V TinyLogic UHS Dual 2-Input Exclusive-OR Gate - MICROPAK-8
SPQ：1
Datasheet : NC7WZ86L8X.pdf

Max Propagation Delay @ V, Max CL	4.2ns @ 5V, 50pF
Voltage - Supply	1.65 V ~ 5.5 V
Logic Type	XOR (Exclusive OR)
Category	Integrated Circuits (ICs)
Number of Circuits	2
Number of Inputs	2
Family	Logic - Gates and Inverters
Operating Temperature	-40°C ~ 85°C
Packaging	Digi-Reel®

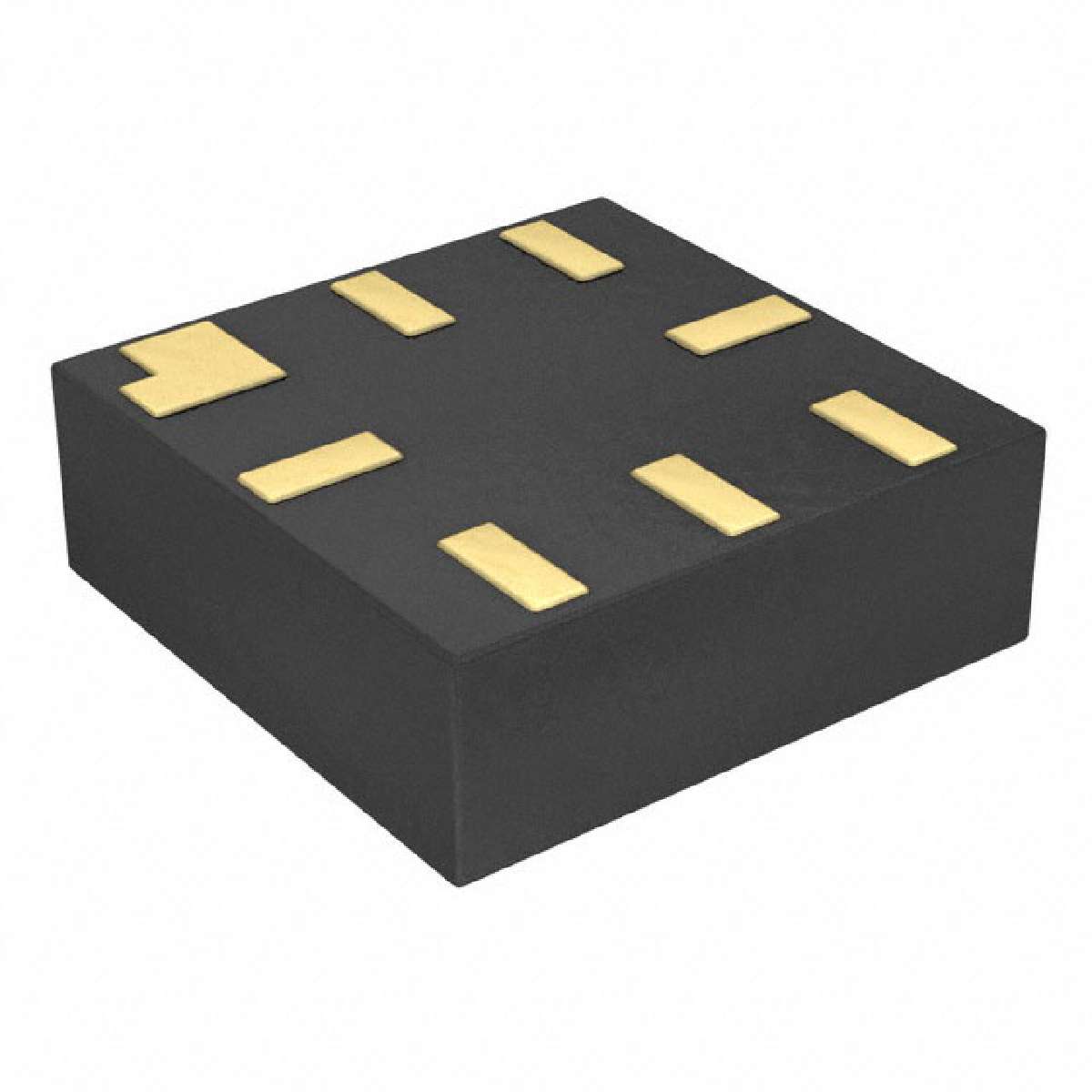

Package / Case	8-UFQFN
Supplier Device Package	8-MicroPak™
Part Status	Active
Manufacturer	Fairchild Semiconductor
Series	7WZ
Current - Output High, Low	32mA, 32mA
Mounting Type	Surface Mount
Current - Quiescent (Max)	1µA
ECCN	EAR99

Datasheet： NC7WZ86L8X.pdf
