| MXM8-PW57-0000 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

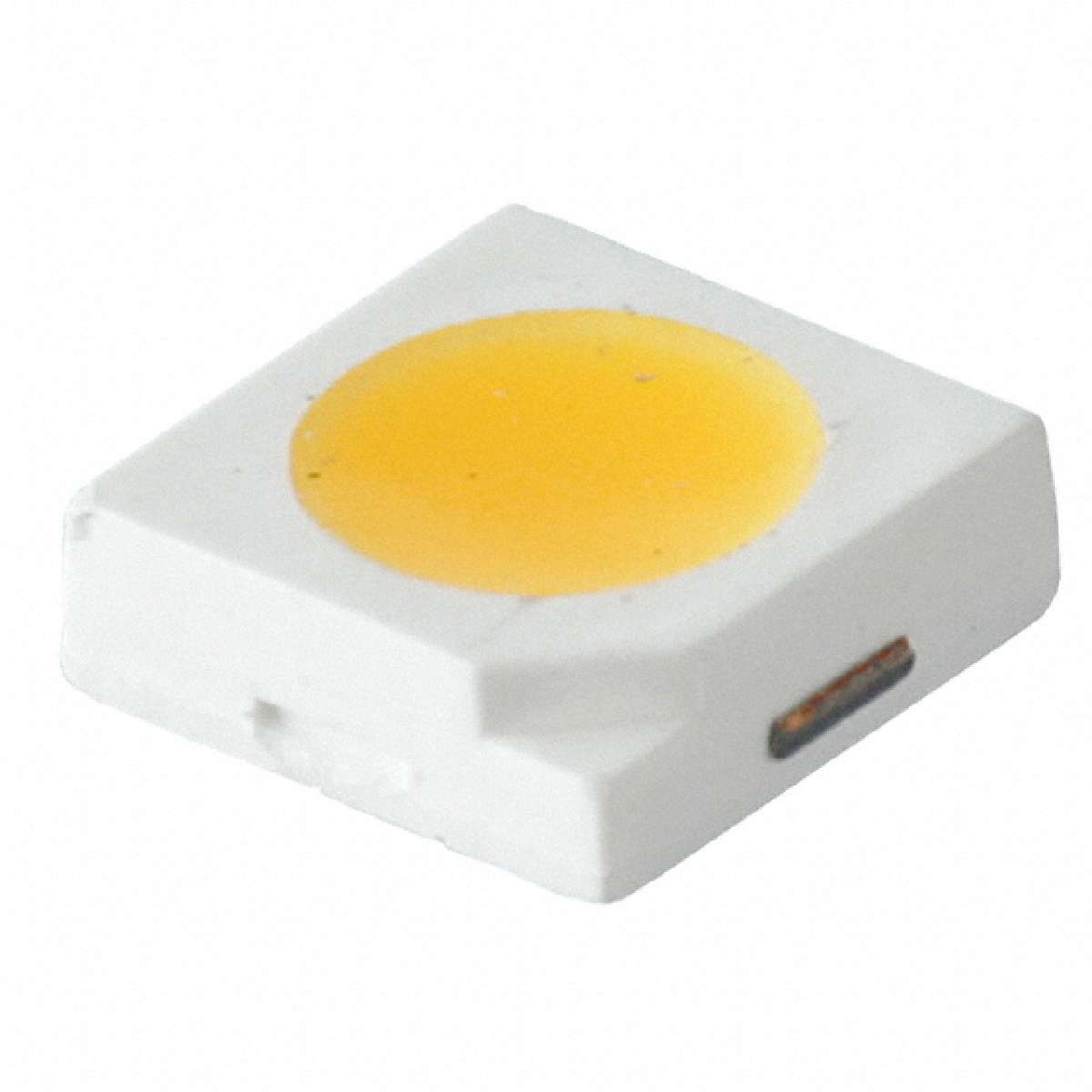

LED LUXEON 3535
|
||
| 标准包装：1000 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| CRI (Color Rendering Index) | 80 |
|---|---|
| Flux @ 25°C, Current - Test | 36 lm (Typ) |
| Thermal Resistance of Package | 20°C/W |
| Color | White, Cool |
| Category | Optoelectronics |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Series | LUXEON 3535 |
| Family | LED Lighting - White |
| Lumens/Watt @ Current - Test | 116 lm/W |
| ECCN | EAR99 |
| Package / Case | 2-SMD, Flat Lead |
| Viewing Angle | 115° |
| CCT (K) | 5700K |
| Part Status | Obsolete |
| Manufacturer | Lumileds |
| Current - Test | 100mA |
| Current - Max | 150mA |
| Mounting Type | Surface Mount |
| Packaging | Digi-Reel® |
