| MXA7-PW40-0000 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

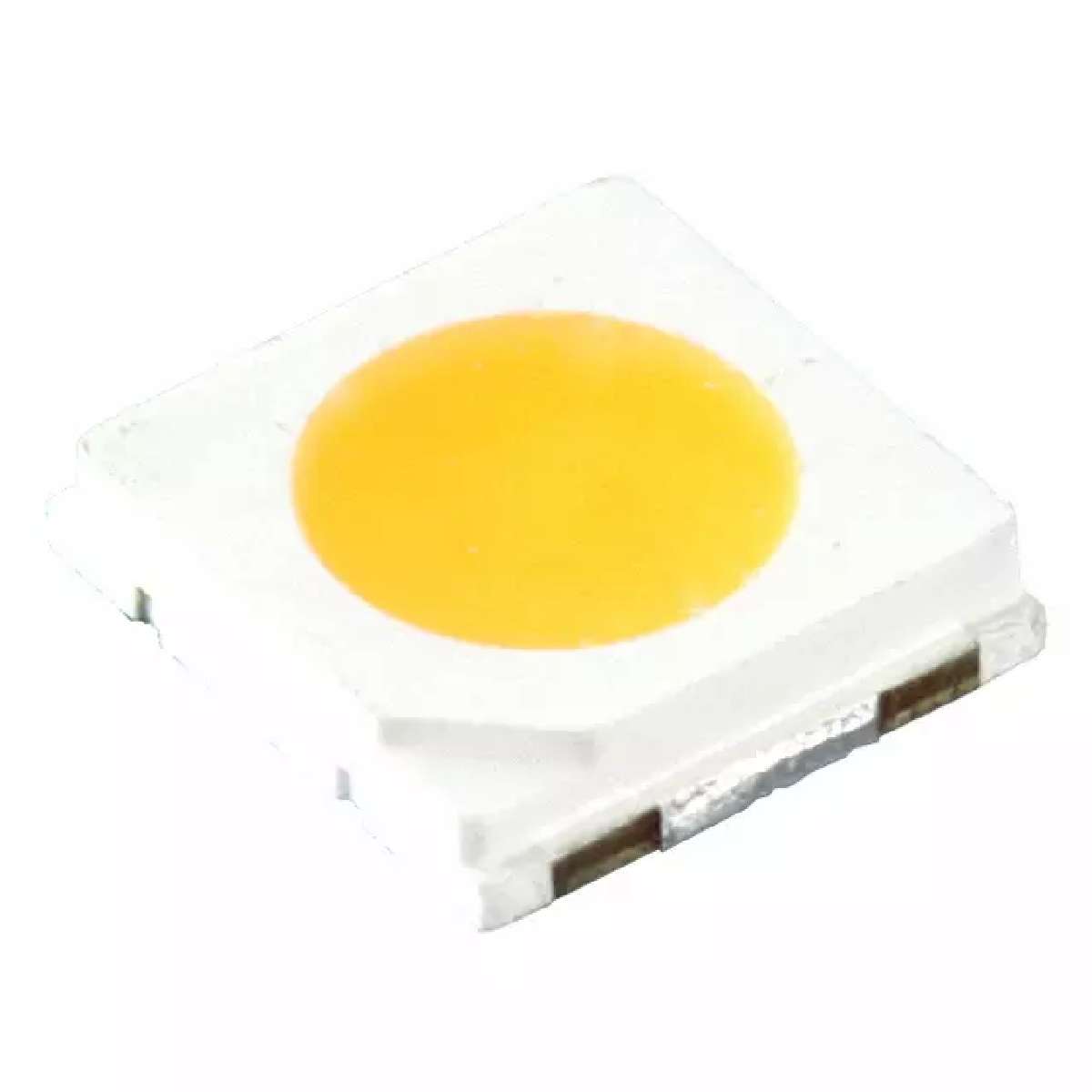

3535L 4000K 49 Lumens 70 CRI 100 mA 3 V Surface Mount Mid Power LED
|
||
| 标准包装：5000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Lens Color/Style: | Clear |
|---|---|
| Viewing Angle: | 115 deg |
| Luminous Flux/Radiant Flux: | 36 lm |
| Minimum Operating Temperature: | - 40 C |
| LED Size: | 3.7 mm x 3.5 mm x 0.8 mm |
| Illumination Color: | Neutral White |
| Lens Shape: | Round Flat |
| Mounting Style: | SMD/SMT |
| Color Temperature: | 4000 K |
| If - Forward Current: | 100 mA |
| Vr - Reverse Voltage: | 5 V |
| Factory Pack Quantity: | 5000 |
| RoHS: | Details |
| Type: | LUXEON 3535L |
| ECCN | EAR99 |
| Width: | 3.5 mm |
| Packaging: | Reel |
| Color Rendering Index - CRI: | 70 |
| Tradename: | LUXEON |
| Package / Case: | 3535L |
| Height: | 0.8 mm |
| Lens Dimensions: | 2.6 mm |
| Vf - Forward Voltage: | 3.05 V |
| Length: | 3.7 mm |
| Manufacturer: | Lumileds |
| Series: | LUXEON 3535L |
| Brand: | Lumileds |
| Product Category: | High Power LEDs - White |
| Maximum Operating Temperature: | + 105 C |
