| MV5754A | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

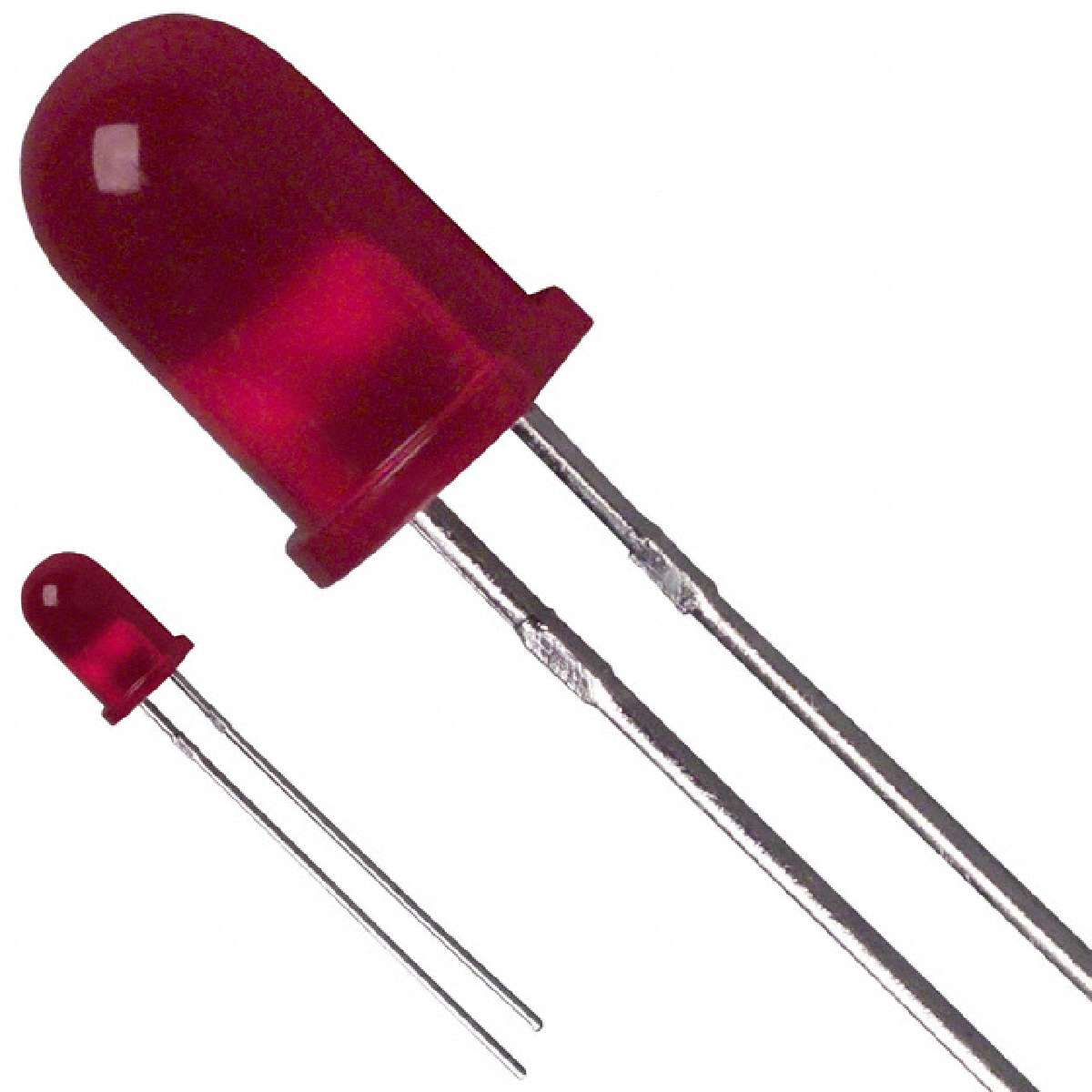

Red 5 mm 24° Diffused 25 mcd 2 V Solid State LED Lamp Through Hole - T-1 3/4
|
||
| 标准包装：250 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Supplier Device Package | T-1 3/4 |
|---|---|
| Package / Case | Radial |
| Part Status | Obsolete |
| Manufacturer | Fairchild Semiconductor |
| Lens Color | Red |
| Current - Test | 20mA |
| Family | LED Indication - Discrete |
| Mounting Type | Through Hole |
| Millicandela Rating | 25mcd |
| ECCN | EAR99 |
| Viewing Angle | 24° |
| Color | Red |
| Category | Optoelectronics |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4), 4.83mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Wavelength - Peak | 635nm |
| Height (Max) | 8.89mm |
| Lens Transparency | Diffused |
| Packaging | Bulk |
