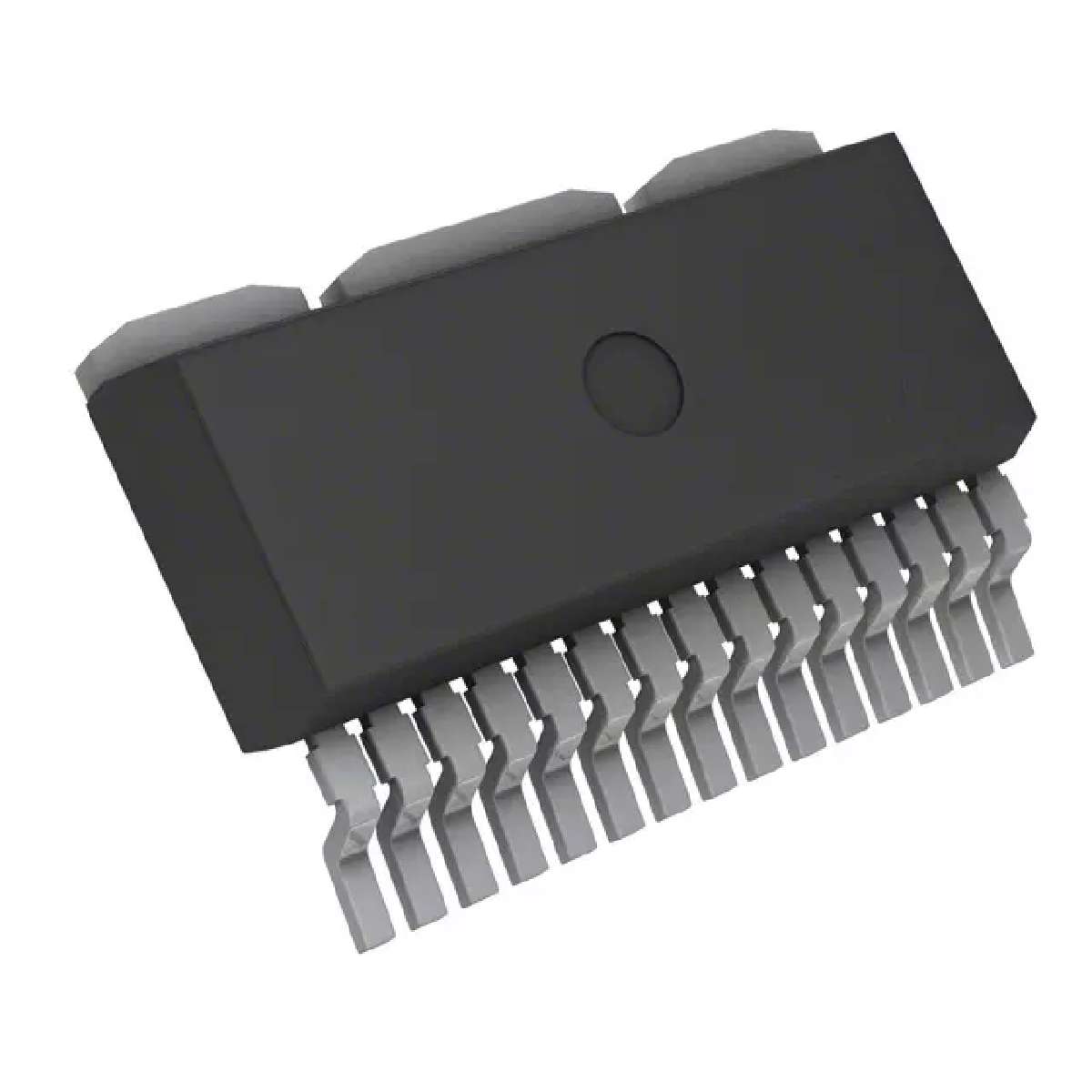

| BTM7810KAUMA1 | ||
|---|---|---|
|
|
||
|
||
| Product description : TrilithIC Series 42V 42A Quad Switch/H-Bridge DMOS DC Motor Driver -PG-TO263-15 | ||
| SPQ：500 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Load Type | Inductive |
|---|---|
| Current - Peak Output | 42A |
| Package / Case | TO-263-18 (15 Leads + 3 Tabs) |
| Fault Protection | Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Part Status | Not For New Designs |
| Category | Integrated Circuits (ICs) |
| Voltage - Load | 1.8 V ~ 42 V |
| Series | TrilithIC™ |
| Applications | DC Motors, General Purpose |
| Operating Temperature | -40°C ~ 110°C (TJ) |
| Packaging | Tape & Reel (TR) |
| Voltage - Supply | 1.8 V ~ 42 V |
| Output Configuration | Half Bridge (2) |
| Supplier Device Package | PG-TO263-15 |
| Features | Status Flag |
| Interface | Logic |
| Manufacturer | Infineon Technologies |
| Rds On (Typ) | 14 mOhm LS, 26 mOhm HS |
| Family | PMIC - Full, Half-Bridge Drivers |
| Mounting Type | Surface Mount |
| Technology | DMOS |
| ECCN | EAR99 |
