| 1-2834015-2 | ||
|---|---|---|
|
|
||
|
||

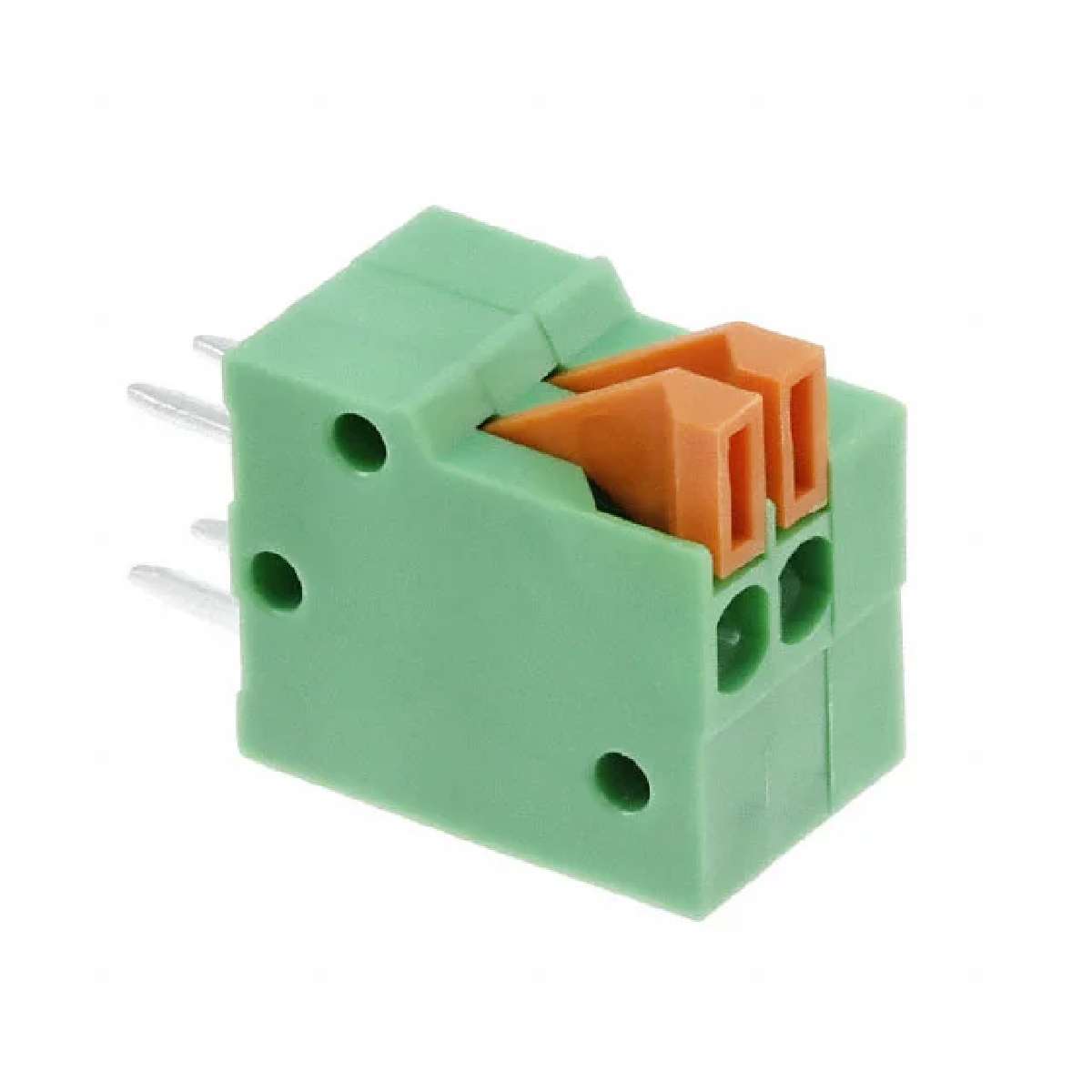

| Product description : 2 Position 2.54 mm Pitch 20-26 AWG Modular Screwless Eurostyle Connector | ||
| SPQ：1218 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Positions Per Level | 2 |
|---|---|
| Number of Levels | 1 |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
| Category | Connectors, Interconnects |
| Mating Orientation | Vertical with Board |
| Voltage | 150V |
| Family | Terminal Blocks - Wire to Board |
| Mounting Type | Through Hole |
| Pitch | 0.100" (2.54mm) |
| Current | 6A |
| Clamp Material - Plating | Steel, Stainless |
| Color | Green |
| Part Status | Active |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Material | Polyamide (PA66), Nylon 6/6 |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Wire Gauge | 20-26 AWG |
| Operating Temperature | -40°C ~ 105°C |
| Packaging | Tray |
| ECCN | EAR99 |
