| WP710A10LVBC/D | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

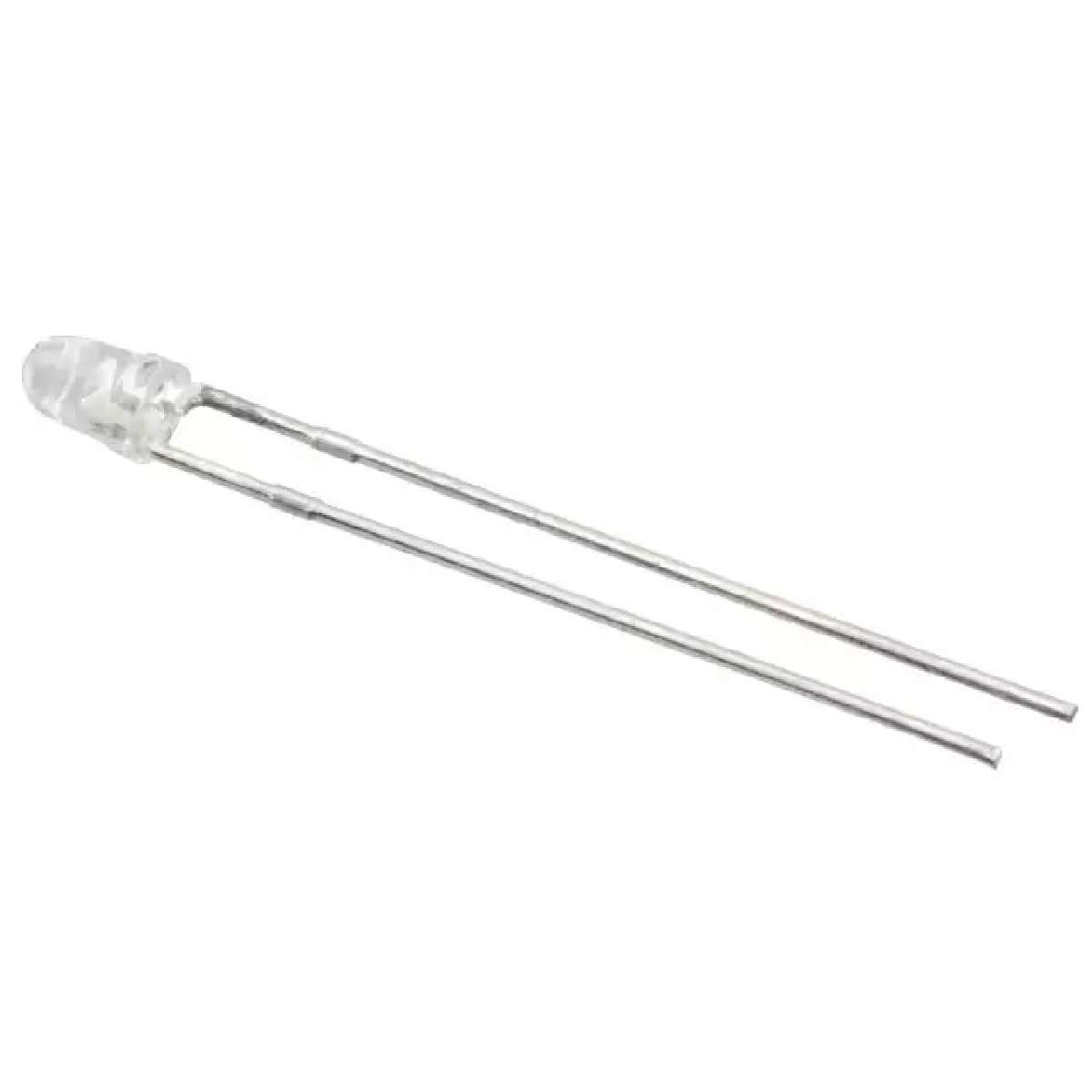

Blue Ø2.9 mm 20° 450 mcd Clear 2.65 V Radial Solid State Lamp - T-1
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Package / Case | Radial |
|---|---|
| Supplier Device Package | T-1 (3mm) |
| Size / Dimension | 0.85mm L x 0.65mm W |
| Category | Optoelectronics |
| Lens Style/Size | Round with Domed Top, 3mm (T-1), 2.80mm |
| Wavelength - Dominant | 470nm |
| Current - Test | 2mA |
| Wavelength - Peak | 465nm |
| Height (Max) | 5.90mm |
| Lens Transparency | Clear |
| Packaging | Bulk |
| Viewing Angle | 20° |
| Color | Blue |
| Part Status | Active |
| Manufacturer | Kingbright |
| Lens Color | Colorless |
| Voltage - Forward (Vf) (Typ) | 2.65V |
| Series | HELI2 |
| Family | LED Indication - Discrete |
| Mounting Type | Through Hole |
| Millicandela Rating | 450mcd |
| ECCN | EAR99 |
