| VSMY2940G | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

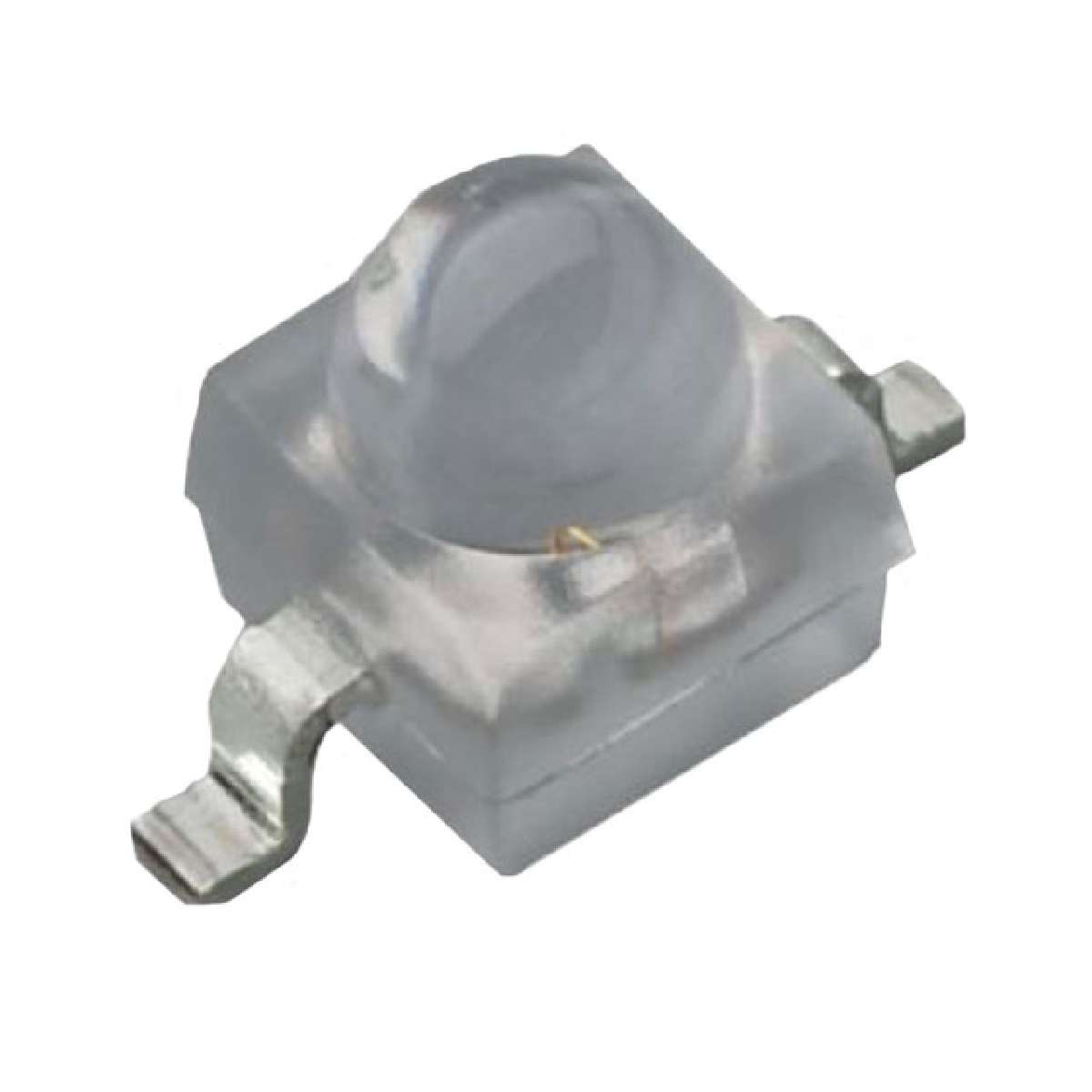

940 nm ±10° 120 mW/sr 100 mA Surface Emitter Infrared Emitting Diode
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Product: | High Power Infrared Emitters |
|---|---|
| Beam Angle: | 20 deg |
| Viewing Angle: | 20 deg |
| Minimum Operating Temperature: | - 40 C |
| Illumination Color: | Infrared |
| Lens Shape: | Dome |
| Radiant Intensity: | 120 mW/sr |
| Fall Time: | 10 ns |
| If - Forward Current: | 100 mA |
| Vr - Reverse Voltage: | 5 V |
| Brand: | Vishay Semiconductors |
| Product Category: | Infrared Emitters - High Power |
| Type: | High Speed Infrared Emitting Diode |
| Maximum Operating Temperature: | + 85 C |
| Width: | 2.3 mm |
| Packaging: | Reel |
| Power Rating: | 190 mW |
| Tradename: | SurfLight |
| Height: | 2.8 mm |
| Mounting Style: | SMD/SMT |
| Vf - Forward Voltage: | 1.55 V |
| Length: | 2.3 mm |
| Manufacturer: | Vishay |
| Factory Pack Quantity: | 6000 |
| RoHS: | Details |
| Rise Time: | 10 ns |
| Wavelength: | 940 nm |
| ECCN | EAR99 |
