| MS23BFW01 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

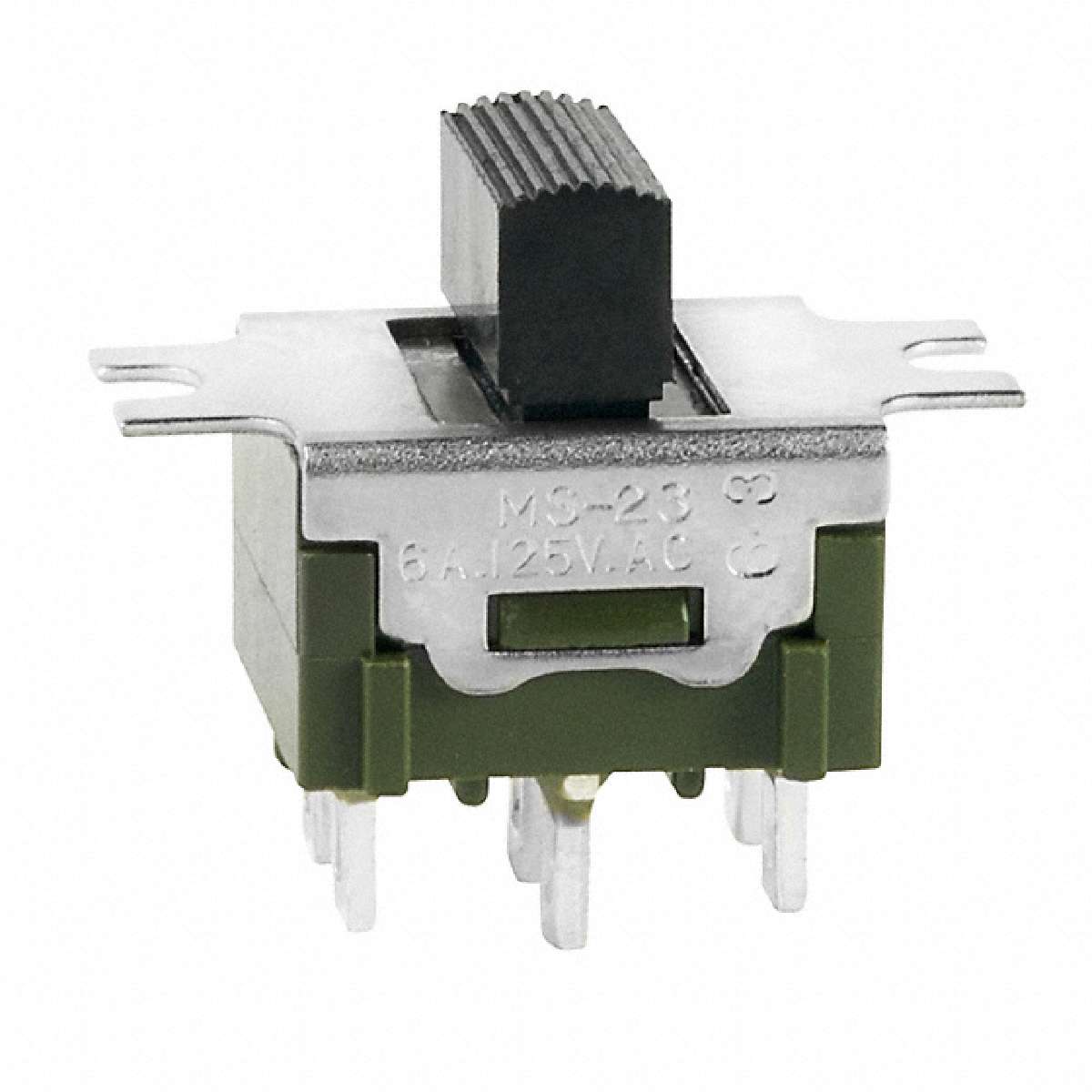

MINIATURE SLIDE/SOLDER & PC
|
||
| 标准包装：1 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Circuit | DPDT |
|---|---|
| Switch Function | On-Off-On |
| Actuator Length | 5.10mm |
| Termination Style | Solder Lug |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Contact Material | Silver Alloy |
| Series | MS |
| Family | Slide Switches |
| Operating Temperature | -30°C ~ 85°C |
| Packaging | Bulk |
| Current Rating | 6A (AC) |
| Actuator Type | Standard |
| Contact Finish | Silver |
| Voltage Rating - AC | 125V |
| Features | Epoxy Sealed Terminals |
| Electrical Life | 25,000 Cycles |
| Category | Switches |
| Switch Travel | 3.50mm |
| Mechanical Life | 100,000 Cycles |
| Mounting Type | Panel Mount |
| Contact Timing | Non-Shorting (BBM) |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| ECCN | EAR99 |
