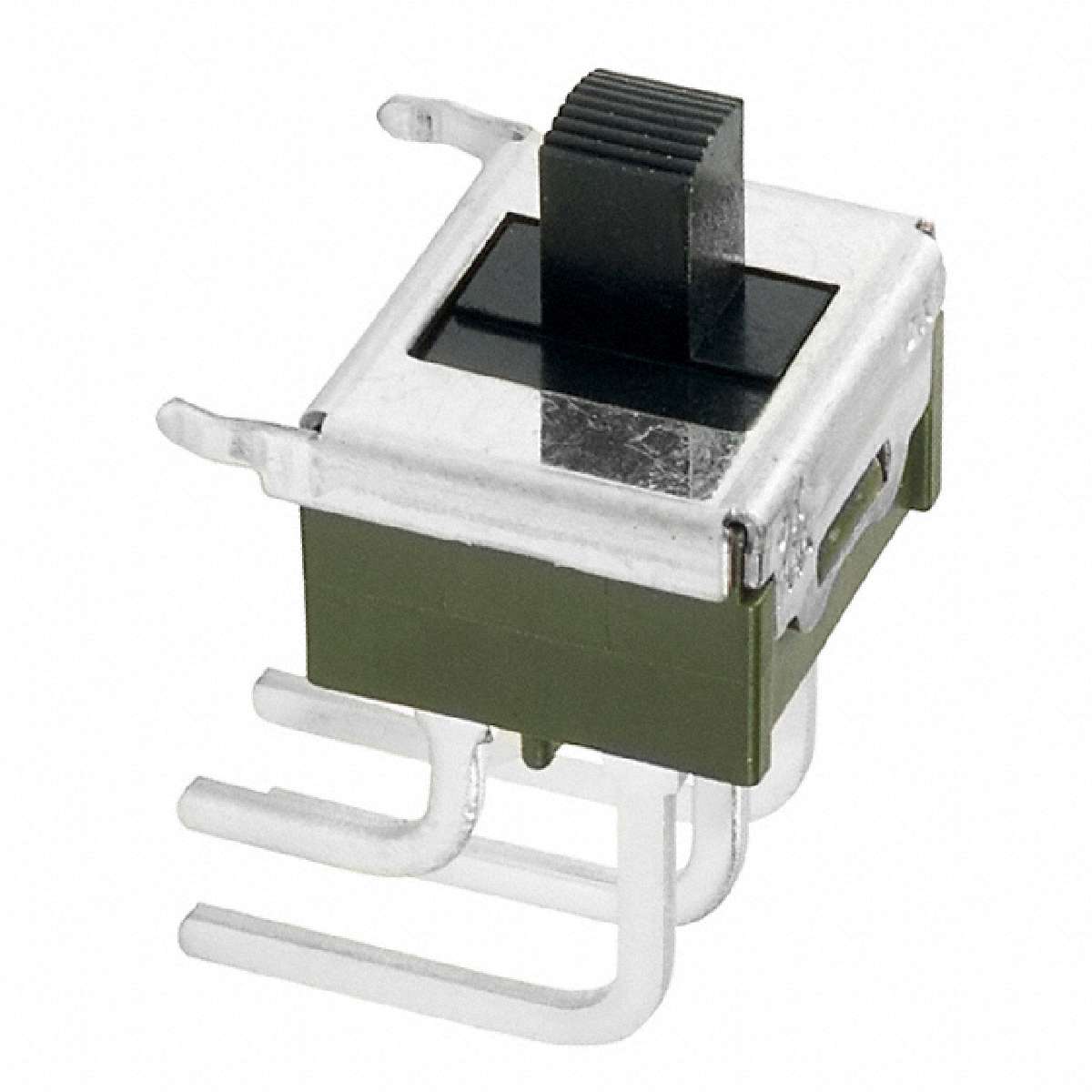

| MS22ASW30 | ||
|---|---|---|
|
|
||
|
||
| Product description : MS Series DPDT/SP3T On None On Right Angle Bracket Mount Miniature Slide Switch | ||
| SPQ：1 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Mounting Angle: | Right |
|---|---|
| Switch Function: | ON - ON |
| Actuator: | Wide (3.8 mm) |
| Voltage Rating AC: | 125 VAC, 250 VAC |
| Operating Temperature Range: | - 30 C to + 85 C |
| Factory Pack Quantity: | 1 |
| Brand: | NKK Switches |
| Termination Style: | Right Angle PC |
| Product Category: | Slide Switches |
| Contact Plating: | Silver |
| Type: | Miniature Slides |
| Mounting Style: | Bracket |
| Packaging: | Bulk |
| Travel: | 2.2 mm |
| Manufacturer: | NKK Switches |
| Series: | MS |
| Contact Form: | DPDT |
| Part # Aliases: | MS-22BAH1 |
| RoHS: | Details |
| Contact Material: | Copper |
| Flammability Rating: | UL 94 V-0 |
| Illumination: | Non-Illuminated |
| Contact Current Rating: | 6 A at 125 VAC, 3 A at 250 VAC |
| ECCN | EAR99 |
