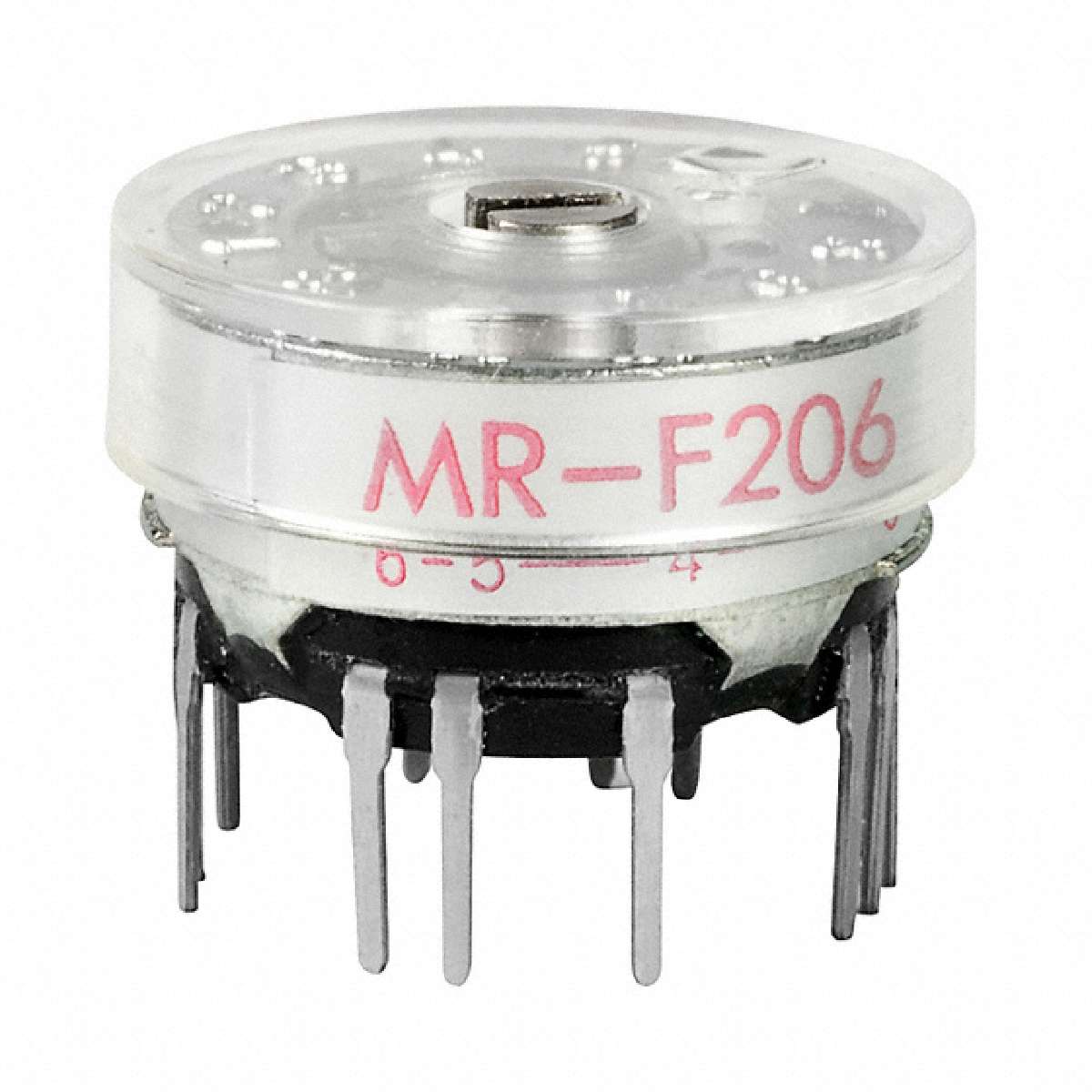

| MRF206 | ||
|---|---|---|
|
|
||
|
||
| Product description : MR Series Screwdriver Actuated PC Terminal DP 2-6 Position Black Knob Rotary | ||
| SPQ：50 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Actuator Type | Screwdriver Slot |
|---|---|
| Contact Finish | Gold |
| Actuator Length | Flush |
| Voltage Rating - AC | 28V |
| Voltage Rating - DC | 28V |
| Features | Process Sealed |
| Operating Force, Torque | 0.005 ~ 0.02 N-m |
| Category | Switches |
| Index Stops | Adjustable |
| Number of Positions | 2 ~ 6 |
| Mounting Type | Through Hole |
| Current Rating | 0.4VA (AC/DC) |
| Number of Poles per Deck | 2 |
| Angle of Throw | 30° |
| Number of Decks | 1 |
| Termination Style | PC Pin |
| Circuit per Deck | DP6T |
| Part Status | Active |
| Manufacturer | NKK Switches |
| Contact Material | Phosphor Bronze |
| Series | MR |
| Family | Rotary Switches |
| Contact Timing | Non-Shorting (BBM) |
| ECCN | EAR99 |
