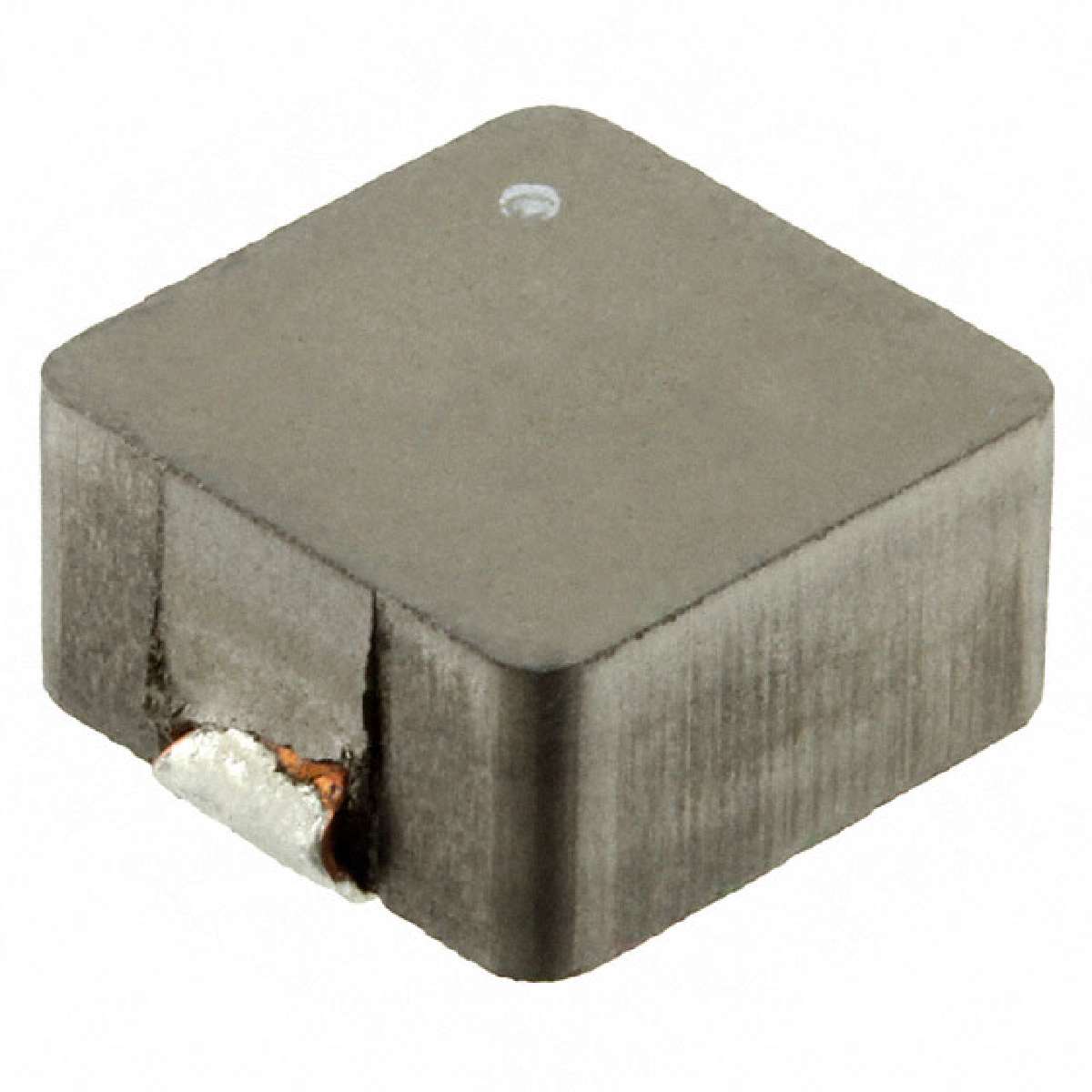

| MPC1055LR36C | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
MPC Series 0.36 uH ±20 % Tolerance 32 A Unshielded SMT Power Inductor
|
||
| 标准包装：500 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Tolerance | ±20% |
|---|---|
| Package / Case | Nonstandard |
| Size / Dimension | 0.453" L x 0.394" W (11.50mm x 10.00mm) |
| Category | Inductors, Coils, Chokes |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Series | MPC |
| Mounting Type | Surface Mount |
| Operating Temperature | -20°C ~ 120°C |
| Packaging | Tape & Reel (TR) |
| Frequency - Test | 100kHz |
| Inductance | 360nH |
| Current - Saturation | 35A |
| Part Status | Active |
| Manufacturer | Kemet |
| Material - Core | Ferrite |
| Family | Fixed Inductors |
| Shielding | Unshielded |
| DC Resistance (DCR) | 0.75 mOhm |
| Current Rating | 32A |
| ECCN | EAR99 |
