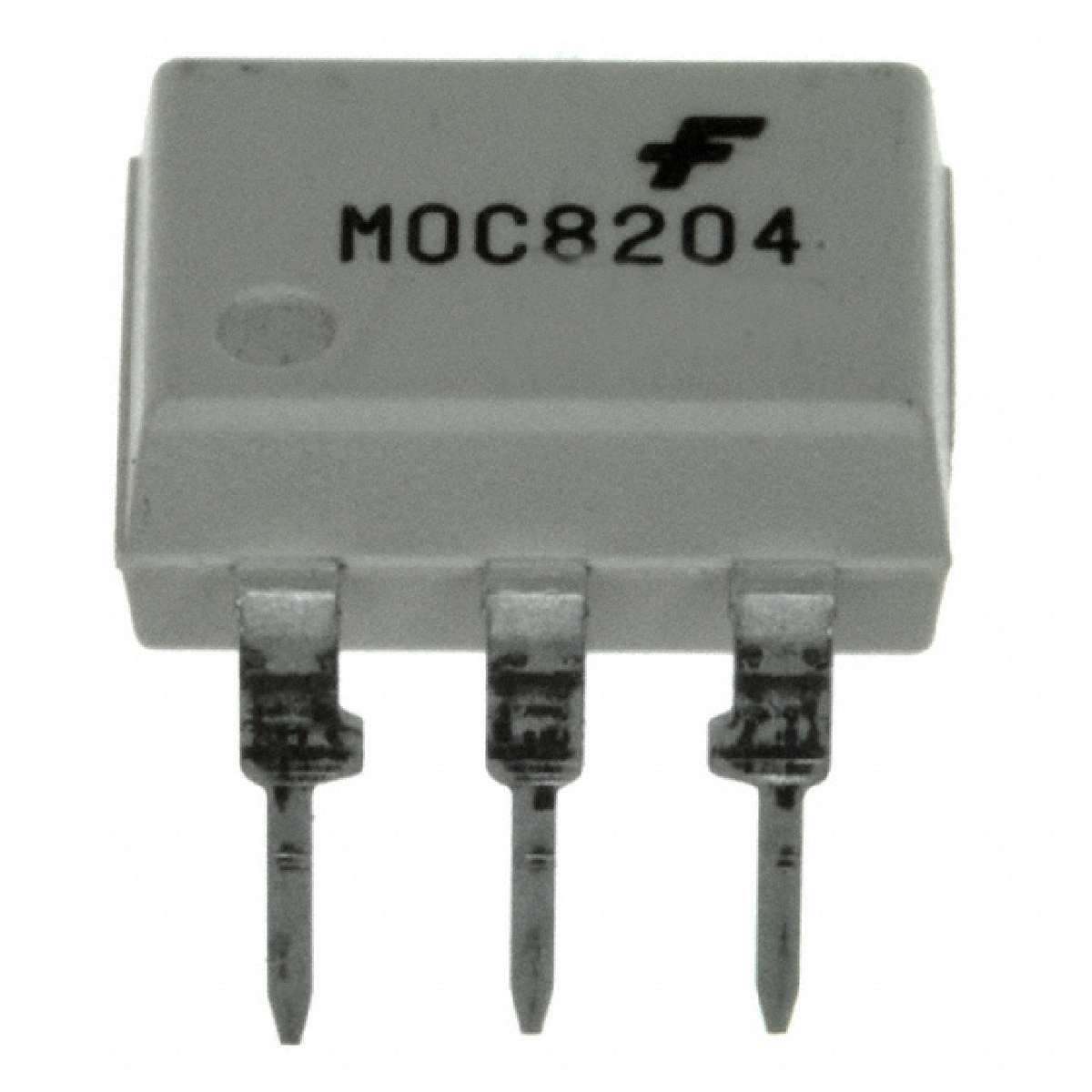

MOC8204M

ACTIVE EAR99
Product description : MOC8204 Series 80 V 4170 Vrms Through Hole Phototransistor Optocoupler - DIP-6
SPQ：1
Datasheet : MOC8204M.pdf

Packaging:	Bulk
Maximum Collector Emitter Voltage:	400 V
Isolation Voltage:	7500 Vrms
Pd - Power Dissipation:	300 mW
Package / Case:	PDIP-6
Configuration:	1 Channel
Vf - Forward Voltage:	1.5 V
Number of Channels:	1 Channel
If - Forward Current:	10 mA
Output Type:	NPN Phototransistor
Factory Pack Quantity:	1000
RoHS:	Details
Maximum Operating Temperature:	+ 100 C
Width:	6.86 mm
Maximum Collector Emitter Saturation Voltage:	0.4 V
Minimum Operating Temperature:	- 40 C
Current Transfer Ratio:	20 %
Height:	5.08 mm
Unit Weight:	0.030159 oz
Maximum Collector Current:	100 mA
Length:	8.89 mm
Manufacturer:	Fairchild Semiconductor
Vr - Reverse Voltage:	6 V
Brand:	Fairchild Semiconductor
Product Category:	Transistor Output Optocouplers
ECCN	EAR99

Datasheet： MOC8204M.pdf
