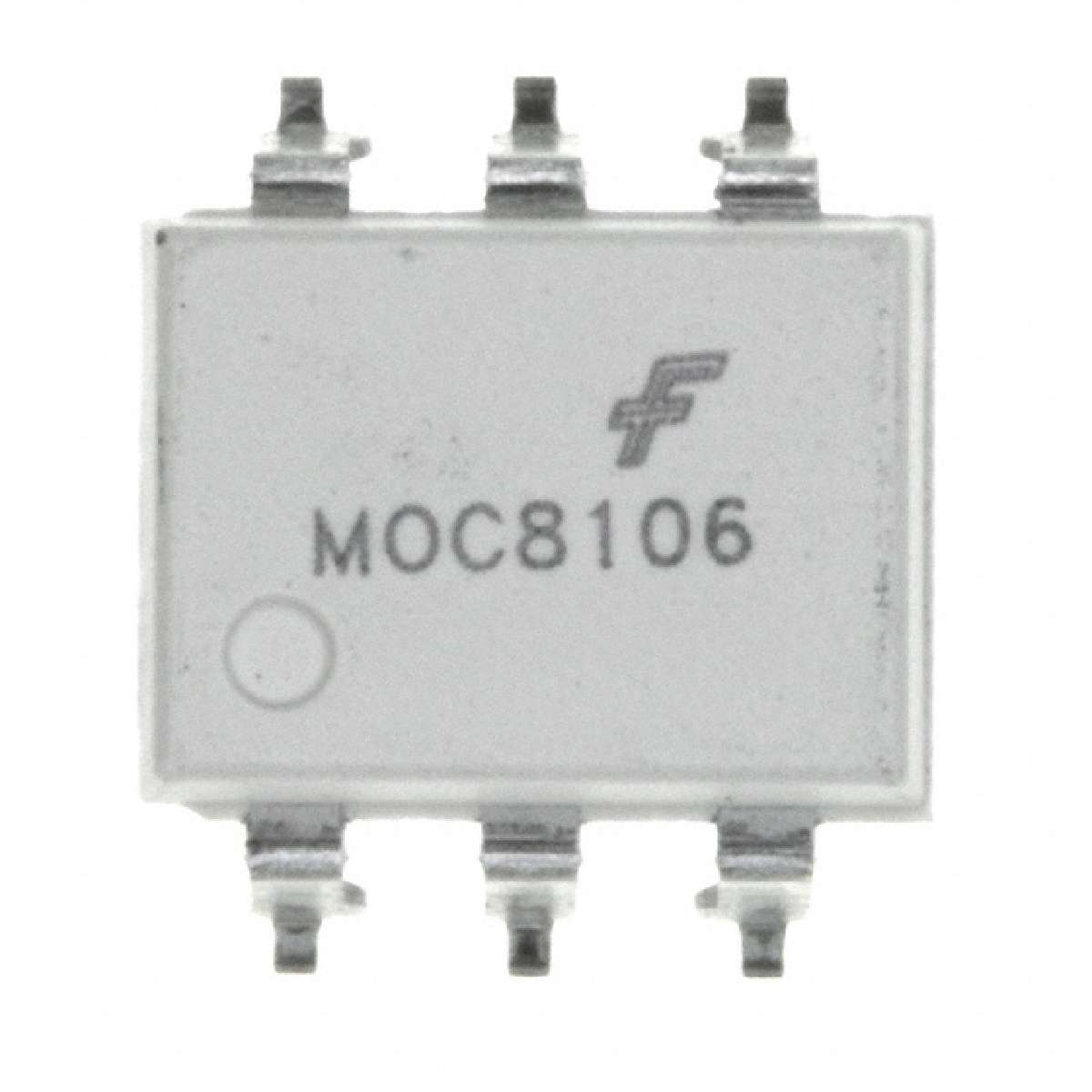

| MOC8106SM | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
OPTOISOLATOR 7.5KV TRANS 6-SMD
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Packaging: | Bulk |
|---|---|
| Maximum Collector Emitter Voltage: | 70 V |
| Isolation Voltage: | 7500 Vrms |
| Pd - Power Dissipation: | 250 mW |
| Package / Case: | SMD-DIP-6 |
| Configuration: | 1 Channel |
| Vf - Forward Voltage: | 1.5 V |
| Number of Channels: | 1 Channel |
| If - Forward Current: | 60 mA |
| Output Type: | NPN Phototransistor |
| Factory Pack Quantity: | 1000 |
| RoHS: | Details |
| Maximum Operating Temperature: | + 100 C |
| Width: | 6.6 mm |
| Maximum Collector Emitter Saturation Voltage: | 0.4 V |
| Minimum Operating Temperature: | - 40 C |
| Current Transfer Ratio: | 150 % |
| Height: | 3.53 mm |
| Unit Weight: | 0.028572 oz |
| Maximum Collector Current: | 50 mA |
| Length: | 8.89 mm |
| Manufacturer: | Fairchild Semiconductor |
| Vr - Reverse Voltage: | 6 V |
| Brand: | Fairchild Semiconductor |
| Product Category: | Transistor Output Optocouplers |
| ECCN | EAR99 |
| 数据手册： |
|---|
登录之后就可发表评论
Availability2Request Stock Notification
Supplier Code:SP1027
Offline Manufacture or Manufacture authorized supplier owned stock and price , need double confirmation and share out from them
$0.36813
￥3.05756
| stock | 4000 | Update On 2023-08-20 |
|---|---|---|
| Lead-Time | 17Weeks | |
| Supplier SPQ/MOQ | 1000/4000 | |
| Location | -- | |
| DateCode | 2309 |
