| MOC8050SR2M | ||
|---|---|---|
|
|
||
|
||
| 产品描述：

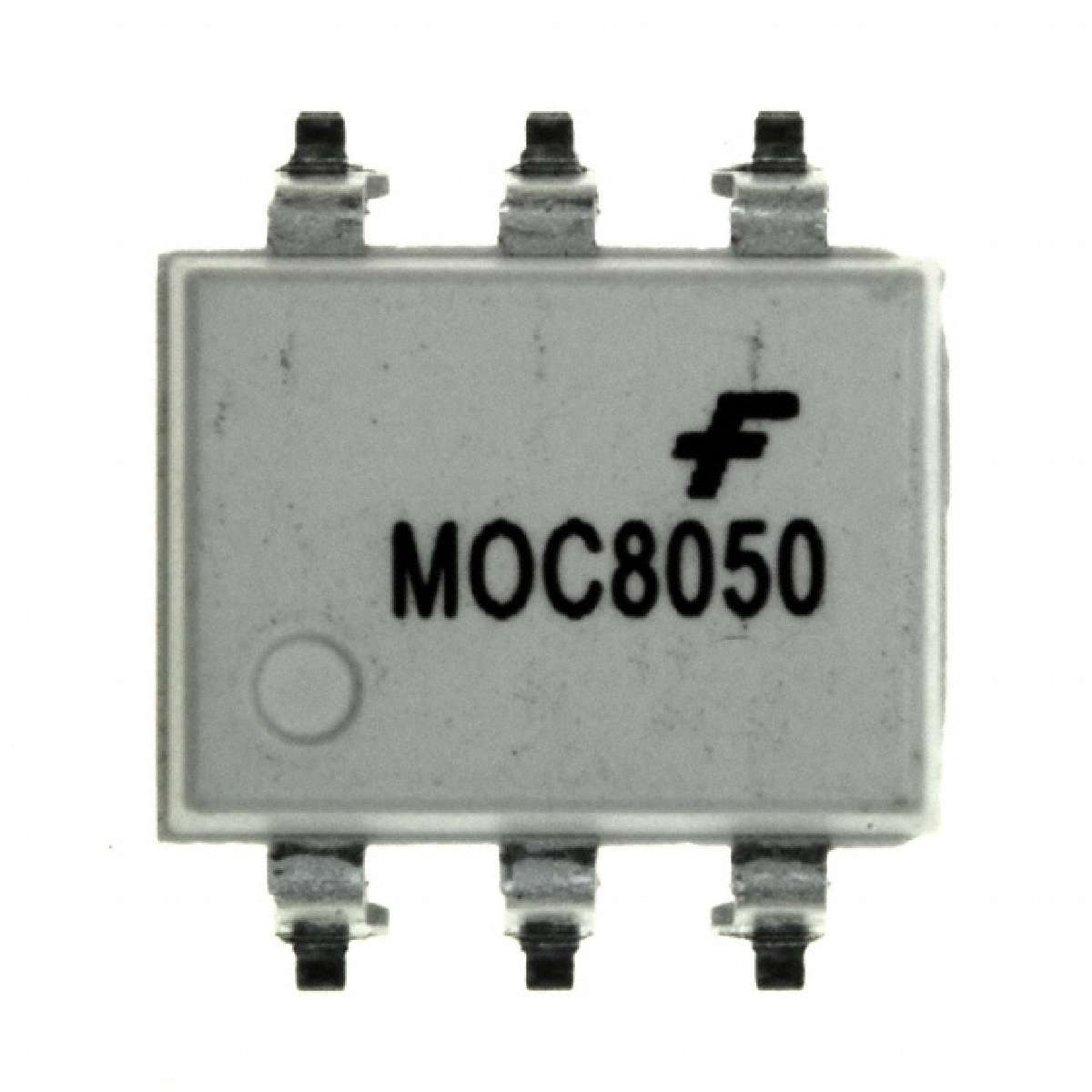

MOC Series Single Channel Surface Mount Photo Darlington Optocoupler - DIP-6
|
||
| 标准包装：1000 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Current - Output / Channel | 150mA |
|---|---|
| Voltage - Isolation | 4170Vrms |
| Current Transfer Ratio (Min) | 500% @ 10mA |
| Turn On / Turn Off Time (Typ) | 8.5µs, 95µs |
| Manufacturer | Fairchild Semiconductor |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.18V |
| Family | Optoisolators - Transistor, Photovoltaic Output |
| Operating Temperature | -40°C ~ 100°C |
| Input Type | DC |
| Package / Case | 6-SMD, Gull Wing |
| Supplier Device Package | 6-SMD |
| Part Status | Active |
| Category | Isolators |
| Voltage - Output (Max) | 80V |
| Output Type | Darlington |
| Current - DC Forward (If) (Max) | 60mA |
| Mounting Type | Surface Mount |
| Packaging | Digi-Reel® |
| ECCN | EAR99 |
