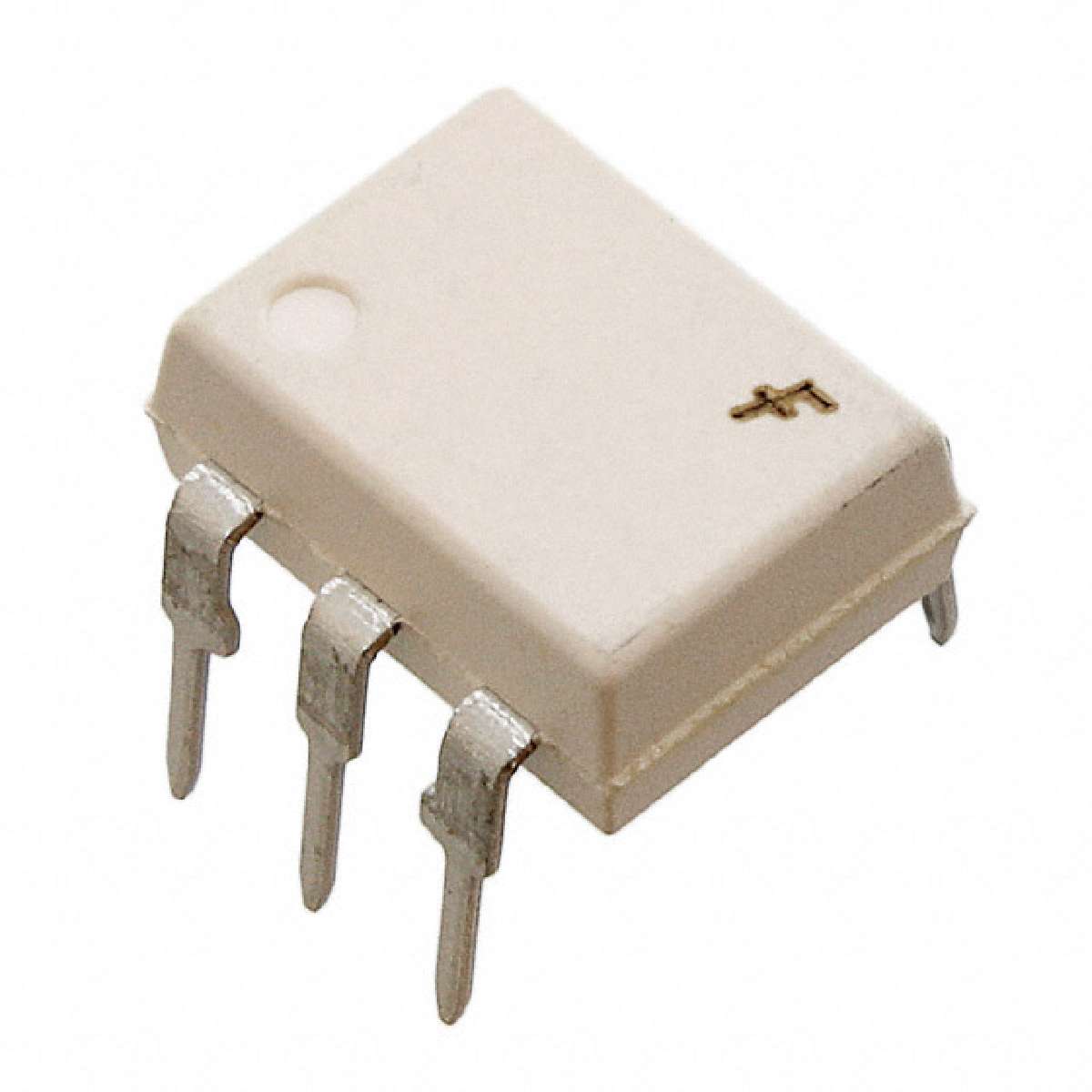

MOC3052VM
MOC3052VM
  • ACTIVE
  • 6-DIP (0.300", 7.62mm)
  • EAR99
Product description : MOC3052 Series 1 Channel 4170 V Random Phase Triac Optoisolator - DIP-6
SPQ：1000
Datasheet :
  • Specifications
  • Product Attributes
  • Documents
  • Product reviews

Supplier Device Package 6-DIP
Voltage - Isolation 4170Vrms
Approvals UR, VDE
Current - Hold (Ih) 220µA (Typ)
Manufacturer Fairchild Semiconductor
Output Type Triac
Current - DC Forward (If) (Max) 60mA
Mounting Type Through Hole
Current - LED Trigger (Ift) (Max) 10mA
Voltage - Off State 600V
ECCN EAR99
Package / Case 6-DIP (0.300", 7.62mm)
Zero Crossing Circuit No
Part Status Active
Category Isolators
Number of Channels 1
Voltage - Forward (Vf) (Typ) 1.18V
Family Optoisolators - Triac, SCR Output
Operating Temperature -40°C ~ 85°C
Static dV/dt (Min) 1kV/µs
Packaging Tube
Datasheet：
You can comment after logging in.
  • Replacement Products
  • Associated Product
Replacement Mode
  • P2P
  • Function
  • Contain
OR-MOC305X
OR-MOC305X
Orient
APT1211SX
APT1211SX
Panasonic
4N40W
4N40W
onsemi
4N40W
4N40W
onsemi
  • P2P:A direct drop-in replacement or second source option. Possible minor parametric differences. No change required in most designs.
  • Functional Equivalent:A direct replacement or second source option. Possible major parametric differences. Changes may be required in some designs.
  • Contain: The functions that one IC can achieve contain the functions that another IC can achieve.
