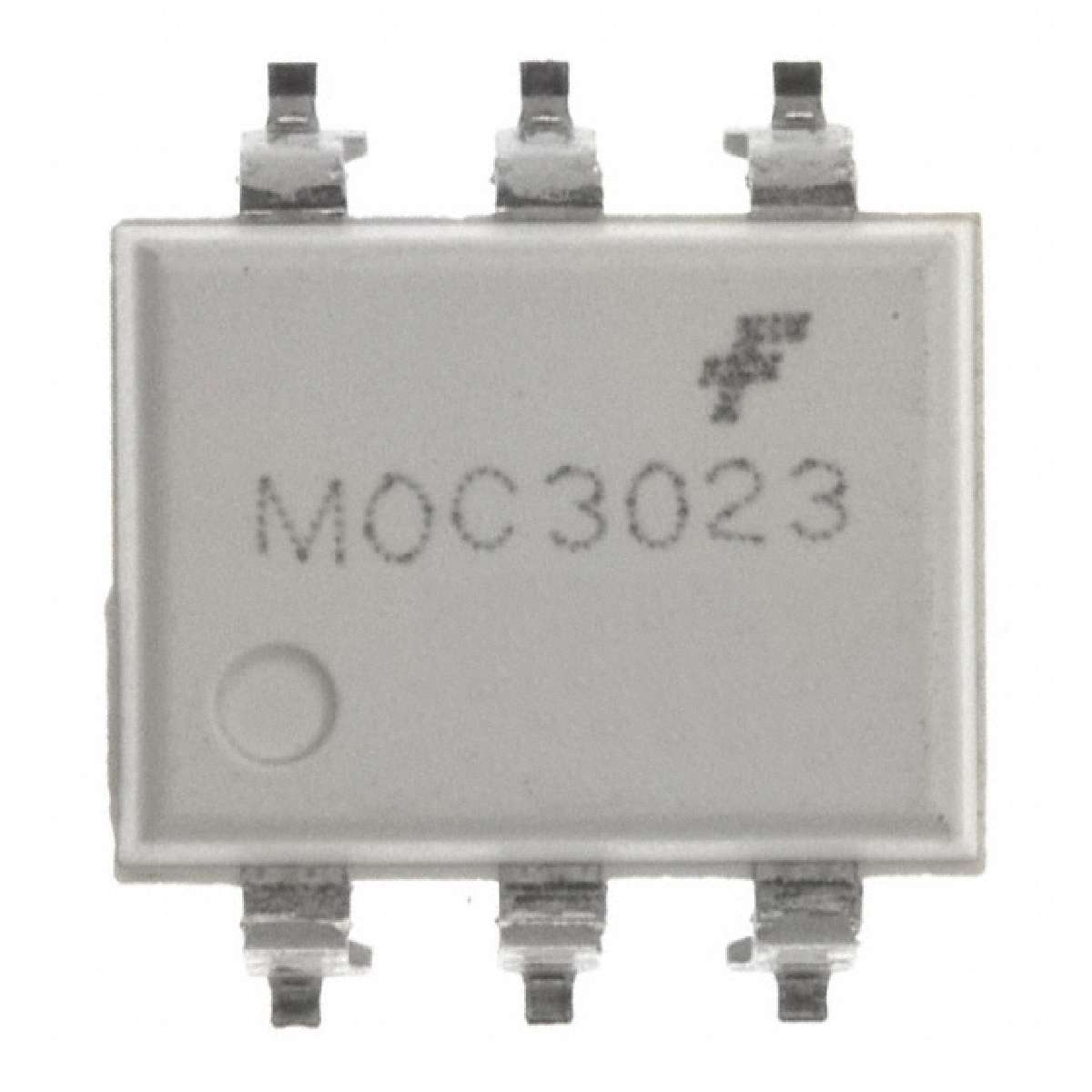

| MOC3023SR2VM | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
6-PIN DIP, RAND. PHASE TRIAC OUTPUT, SURFACE MOUNT, T&R, VDE
|
||
| 标准包装：1 | ||
| 数据手册： |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Width: | 6.6 mm |
|---|---|
| Maximum Trigger Current: | 5 mA |
| Isolation Voltage: | 5300 Vrms |
| If - Forward Current: | 60 mA |
| Output Type: | PhotoTriac |
| Pd - Power Dissipation: | 330 mW |
| Factory Pack Quantity: | 1000 |
| Brand: | Fairchild Semiconductor |
| Package / Case: | SMD-6 Gull Wing |
| Off-state Output Voltage - VDRM: | 400 V |
| Unit Weight: | 0.028572 oz |
| Vf - Forward Voltage: | 1.15 V |
| ECCN | EAR99 |
| Number of Channels: | 1 Channel |
| Packaging: | Reel |
| Length: | 8.89 mm |
| Manufacturer: | Fairchild Semiconductor |
| Zero-Crossing Circuit: | Without Zero-Crossing Circuit |
| Minimum Operating Temperature: | - 40 C |
| Part # Aliases: | MOC3023SR2VM_NL |
| RoHS: | Details |
| Product Category: | Triac & SCR Output Optocouplers |
| Height: | 3.53 mm |
| Mounting Style: | SMD/SMT |
| Maximum Operating Temperature: | + 85 C |
