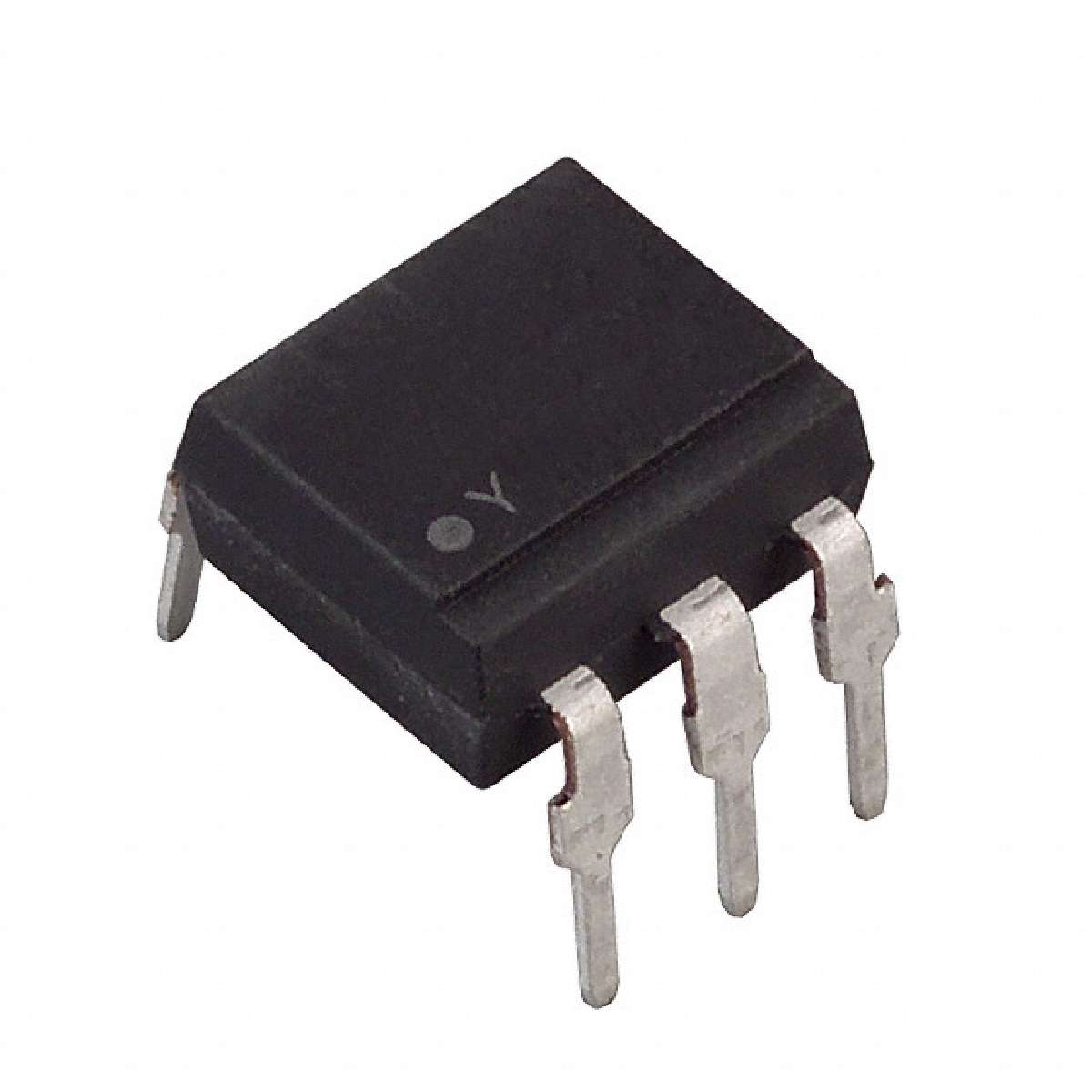

| MOC3023 | ||
|---|---|---|
|
|
||
|
||
| 产品描述：
Single Channel 400 V 5000 Vrms Triac Driver Optocoupler Through Hole - DIP-6
|
||
| 标准包装：65 | ||
| 数据手册： -- |
- 规格参数
- 产品特性
- 技术文档
- 产品评论
| Supplier Device Package | 6-DIP |
|---|---|
| Voltage - Isolation | 5000Vrms |
| Approvals | CQC, CSA, TUV, UL, VDE |
| Current - Hold (Ih) | 250µA (Typ) |
| Manufacturer | Lite-On Inc. |
| Output Type | Triac |
| Current - DC Forward (If) (Max) | 50mA |
| Mounting Type | Through Hole |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Voltage - Off State | 400V |
| ECCN | ECL99 |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Zero Crossing Circuit | No |
| Part Status | Active |
| Category | Isolators |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Family | Optoisolators - Triac, SCR Output |
| Operating Temperature | -40°C ~ 100°C |
| Static dV/dt (Min) | 1kV/µs |
| Packaging | Tube |
