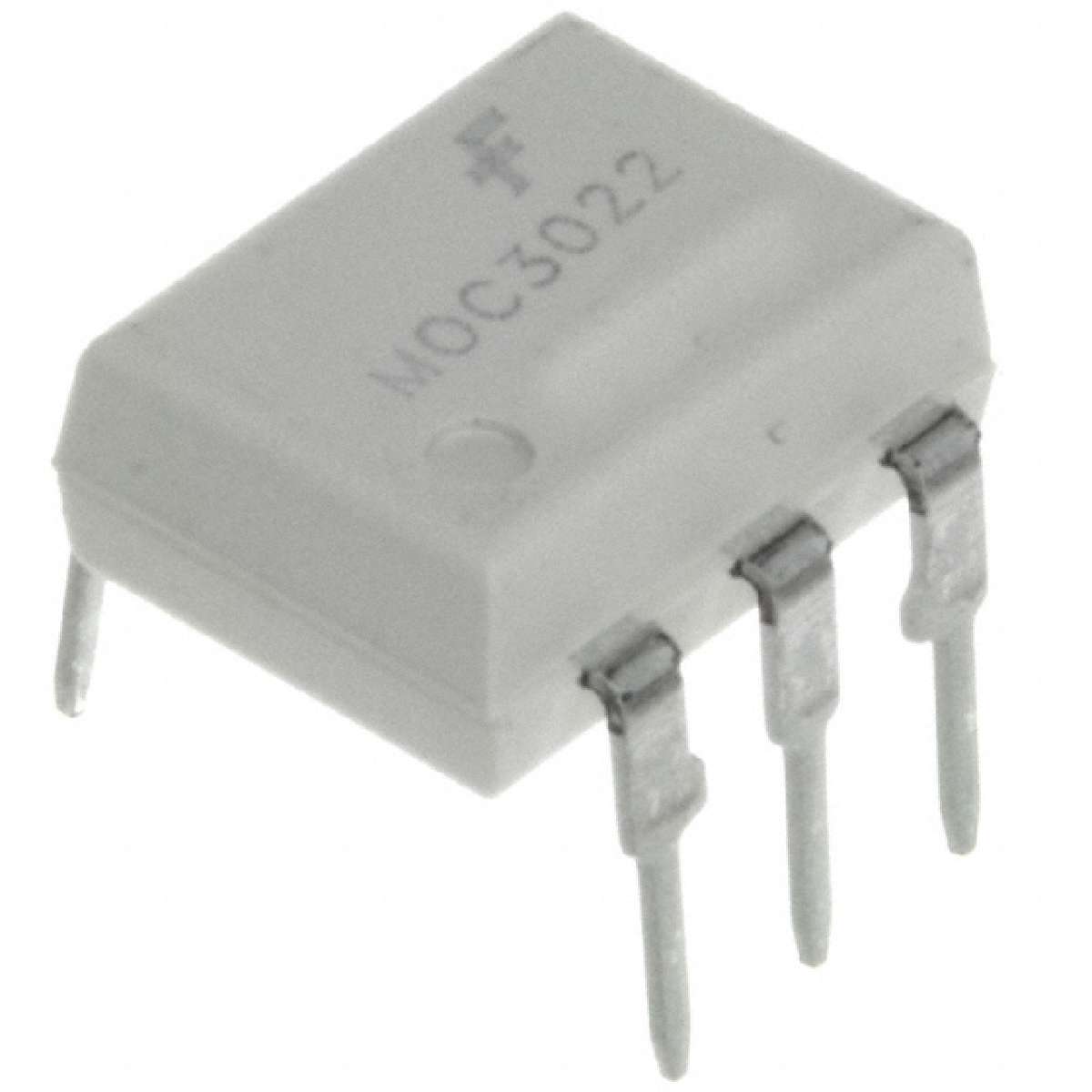

| MOC3022VM | ||
|---|---|---|
|
|
||
|
||
| Product description : Optotriac; 4.17kV; triac; DIP6; Channels: 1 | ||
| SPQ：50 | ||
| Datasheet : |
- Specifications
- Product Attributes
- Documents
- Product reviews
| Width: | 6.6 mm |
|---|---|
| Maximum Trigger Current: | 10 mA |
| Isolation Voltage: | 5300 Vrms |
| If - Forward Current: | 60 mA |
| Output Type: | PhotoTriac |
| Pd - Power Dissipation: | 330 mW |
| Factory Pack Quantity: | 1000 |
| Brand: | Fairchild Semiconductor |
| Package / Case: | PDIP-6 |
| Off-state Output Voltage - VDRM: | 400 V |
| Unit Weight: | 0.030159 oz |
| Vf - Forward Voltage: | 1.15 V |
| Number of Channels: | 1 Channel |
| Packaging: | Bulk |
| Length: | 8.89 mm |
| Manufacturer: | Fairchild Semiconductor |
| Zero-Crossing Circuit: | Without Zero-Crossing Circuit |
| Minimum Operating Temperature: | - 40 C |
| Part # Aliases: | MOC3022VM_NL |
| RoHS: | Details |
| Product Category: | Triac & SCR Output Optocouplers |
| Height: | 3.53 mm |
| Mounting Style: | Through Hole |
| Maximum Operating Temperature: | + 85 C |
| Datasheet： |
|---|
